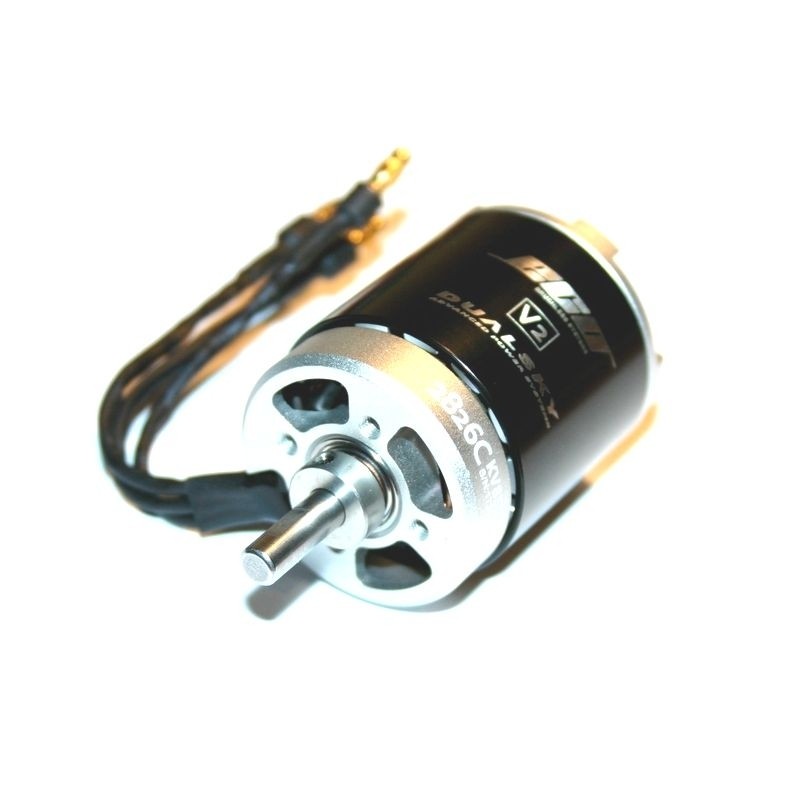

DUALSKY 2826C V2 ENGINE - 1120kv

In ECO series engines the model markings were changed to make them similar to the one known from other popular engines such as AXi, EMAX, RAY, FOXXY etc. Now the name of the engine model is based on the diameter and length of the stator and KV.

The family of Dualsky ECO series motors covers the range of the most commonly used drive units: from the smallest to those with a power of 900W. The wide selection of KV allows for precise selection of the motor for a specific application. Some of them are also suitable for use in multicopter platforms (ECO-X line).

Features of ECO engines:

• NEW LABELING RULES based on stator diameter and length and KV (revolutions per volt of no load voltage)
• a wide selection of models in the most popular sizes up to 900W and optimally matched KV parameters
• standard-length wiring with factory-soldered connectors (connector sockets for soldering on the controller cables are included in the set)
• motor shaft protruding on the stator side
• reverse mounting possible, hub for screwing onto the rotor is included
• Mounting cross and screws are included
• Aluminum alloy motor housing, CNC machined and anodized
• ZEN bearings
• N4SH magnets
• the model markings are laser etched on the rotor thus eliminating any impact on the balance
• a product aimed at intermediate pilots of airplanes and multicopters, guaranteeing high quality with a low purchase cost
• product packed in an aesthetic box

Basic technical data:

• axle diameter: 5 mm
• dimensions: 35.2 x 46.2 mm
• distance between fastening screws: 19/25 mm
• power supply: 2-3 Li-pol cells
• weight (without cables): 165 g
• KV: 1120 rpm
• recommended propellers: 3S: 12x6, 13,6,5

• highest efficiency under load: 35A
• maximum instantaneous load: 55A (up to 15 seconds)
• maximum power (15 seconds): 660W
• current consumption without load (10V): 2.4A
• internal resistance: 19.3 mOhm
• recommended regulator: 60-65A eg Dualsky
• application: models of class .25-.32 (30E) airplanes
• set includes: crosspiece for mounting, propeller hub for reverse assembly, male connectors DB3 3.5 mm soldered on the cables + connector sockets and heat-shrinkable tubes
