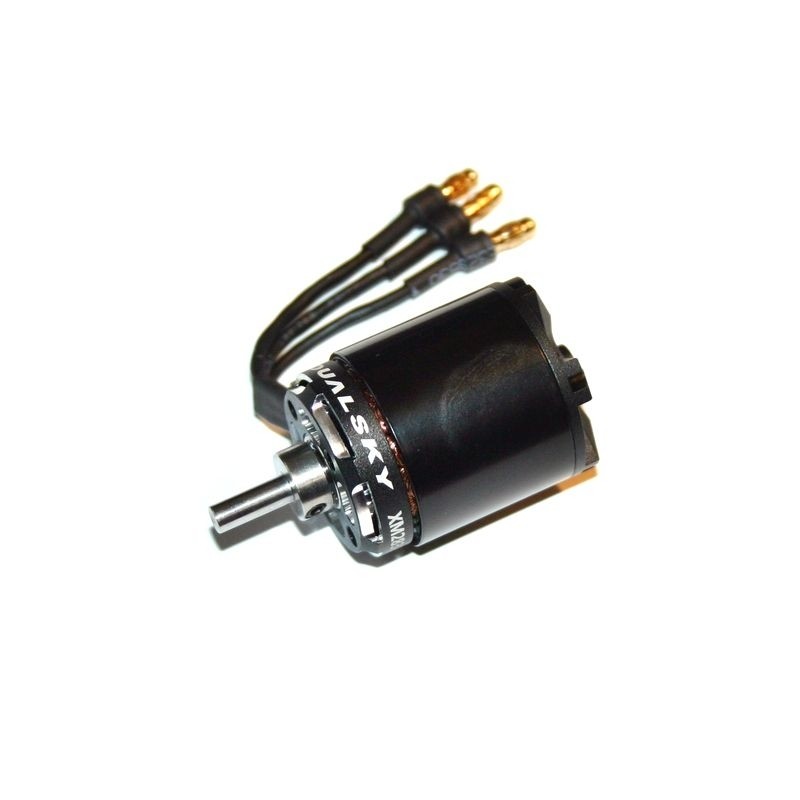

XM2838EG- 9 GLIDER DUAL ENGINE

EG is a line of Dualsky electric motors designed for sailplane models weighing up to 1700-2000 g (depending on the engine version). The XM2838EG engine range is available to cover most sailplane applications up to a weight of 1700g. XM2838EG motors are the most powerful 28mm dualsky motors. Hard 4mm shafts with a uniform surface and large, durable and impact-resistant bearings are used to maximize durability.

Dualsky XC4018BA-V2 or XC406ULT regulators are recommended for use with XM2838EG engines. Timing should be set to 15 degrees (medium).

FULL TECHNICAL SPECIFICATIONS (PDF)

Basic data:

• dimensions: diameter 28.8 mm, motor length 38.4 mm
• axle diameter: 4 mm
• distance between fastening screws: 16/19 mm
• power supply: 3 Li-pol cells (11.1V)
• weight: 88 g
• KV: 1350 rpm
• recommended propellers: 9x7, 10x6, 10x8
• maximum power (15 seconds): 360W
• maximum current (15 seconds): 30A
• current consumption without load (10V): 1.9A
• internal resistance: 29.3 mOhm
• application: gliders weighing 800-2000 g
• the set includes: motor, gold DB3 3.5 mm connectors and heat shrink tubes, mounting screws
• recommended regulator: 30-40A
