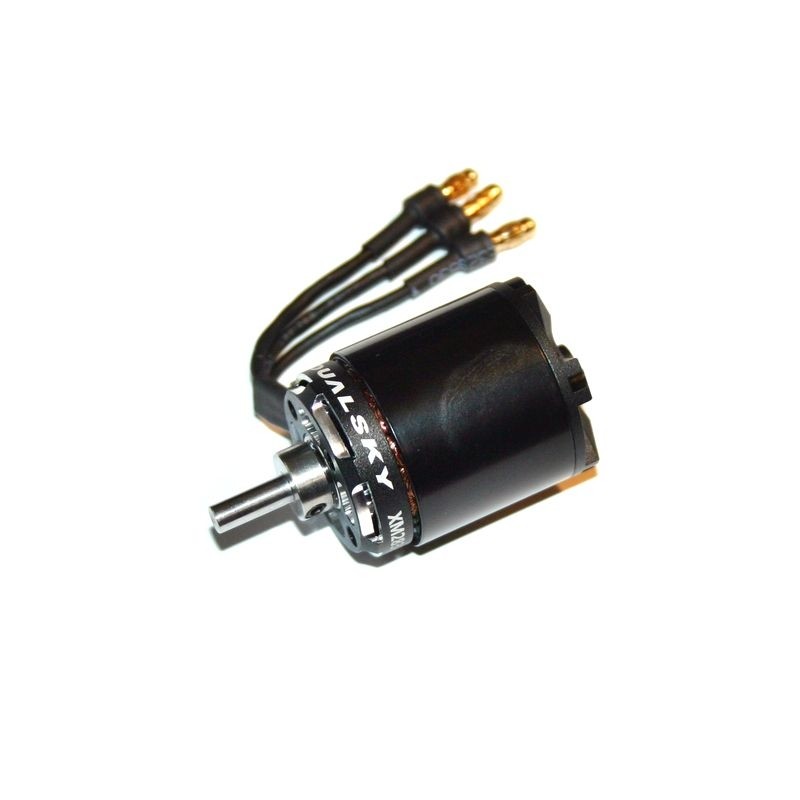

XM2838EG-11 GLIDER DUAL ENGINE

EG is a line of Dualsky electric motors designed for sailplane models weighing up to 1700-2000 g (depending on the engine version). The XM2838EG engine range is available to cover most sailplane applications up to a weight of 1700g. XM2838EG motors are the most powerful 28mm dualsky motors. Hard 4mm shafts with a uniform surface and large, durable and impact-resistant bearings are used to maximize durability.

Dualsky XC4018BA or XC406ULT regulators are recommended for use with XM2838EG motors. Timing should be set to 15 degrees (medium).

FULL TECHNICAL SPECIFICATIONS (PDF)

Basic data:

• dimensions: diameter 28.8 mm, motor length 38.4 mm
• axle diameter: 4 mm
• distance between fastening screws: 16/19 mm
• power supply: 3 Li-pol cells (11.1V)
• weight: 88 g
• KV: 1100 rpm
• recommended propellers: 11x7, 11x8, 12x6, 12x8
• maximum power (15 seconds): 312W
• maximum current (15 seconds): 26A
• no load current consumption (10V): 1.5A
• internal resistance: 43.5 mOhm
• application: gliders weighing 800-2000 g
• the set includes: motor, gold DB3 3.5 mm connectors and heat shrink tubes, mounting screws
• recommended regulator: 30-40A
