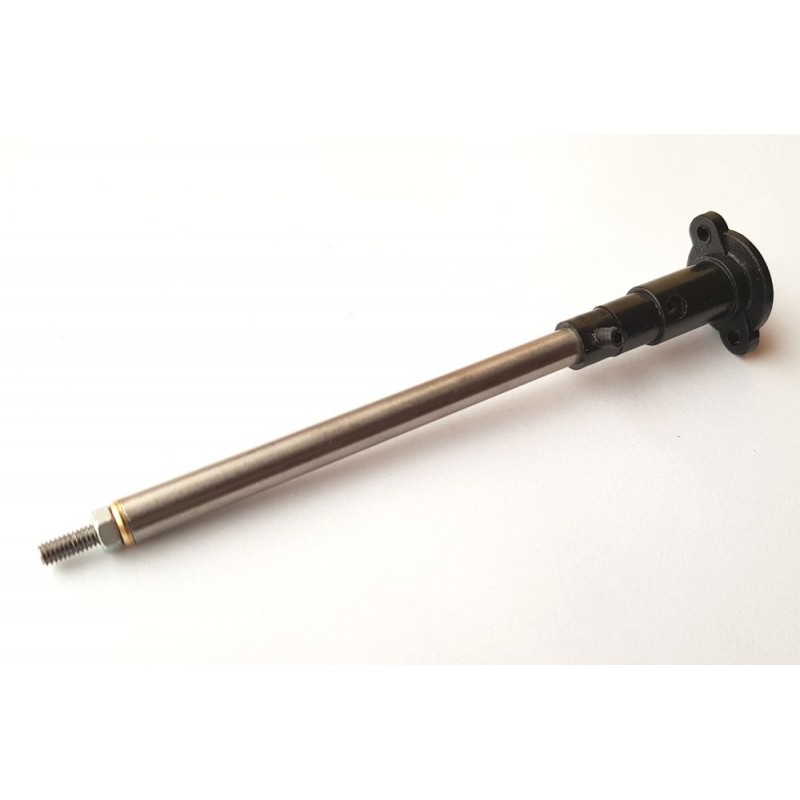

PS DRIVE SHAFT WS-04/140 mm / M4 / 3.17 mm (brushless motor - 2 x oil seal)

• shaft length with a socket and screw thread: 150 mm

• casing length with a socket: 140 mm
• cup length: 45 mm
• internal diameter of the sleeve for the motor shaft: 3.17 mm
• spacing of mounting holes in the engine socket: 19 mm
• shaft diameter: 4 mm
• outer casing diameter: 8 mm
• screw thread: M4
• "Kalamitka" for shaft lubrication
• sliding bush on the screw side

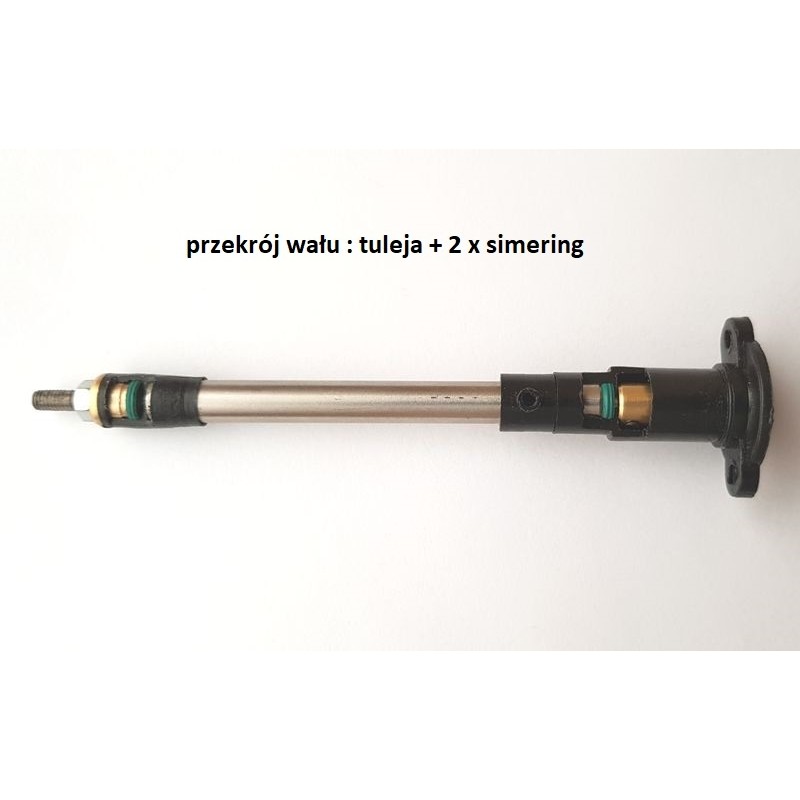

• seal on the screw side: 1 x oil seal
• seal on the motor side: 1 x oil seal
• stainless steel shaft
• stainless steel shaft housing

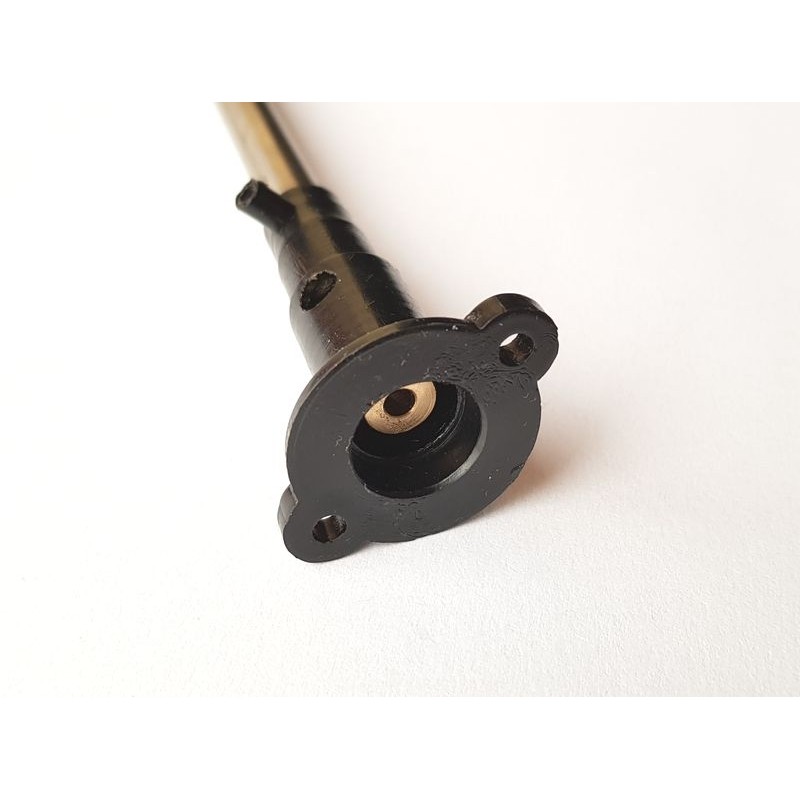

• socket for brushless motor


Attention:

• the shaft must always be lubricated during operation
