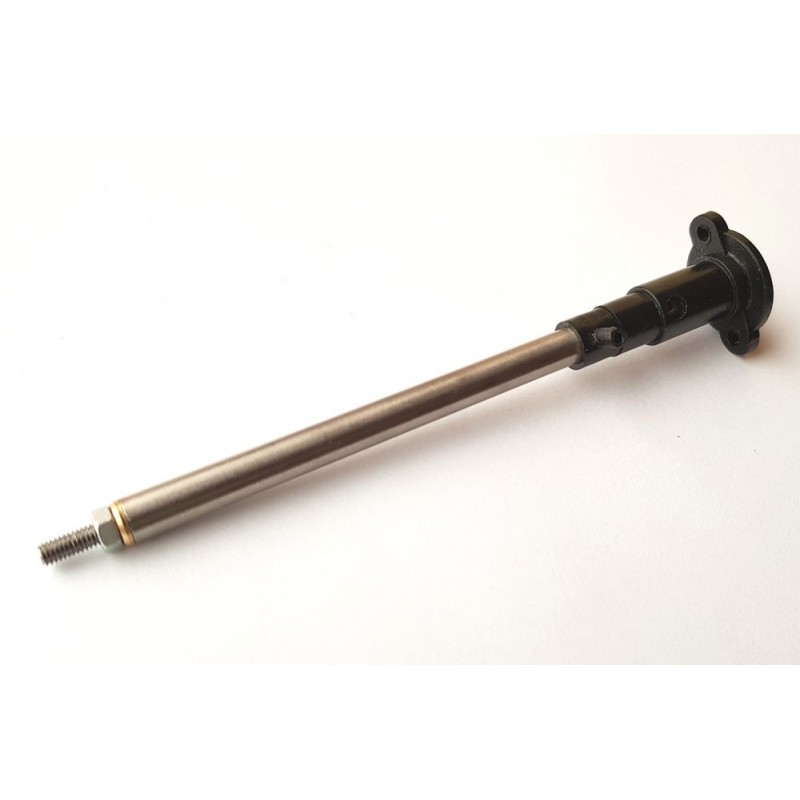

PS DRIVE SHAFT WS-02/120 mm/M4/3.17 mm ( 2 x simering )

• shaft length with a socket and screw thread: 130 mm

• casing length with a socket: 120 mm
• cup length: 45 mm
• internal diameter of the sleeve for the motor shaft: 3.17 mm
• spacing of mounting holes in the engine socket: 25 mm
• shaft diameter: 4 mm
• outer casing diameter: 8 mm
• screw thread: M4
• "Kalamitka" for shaft lubrication

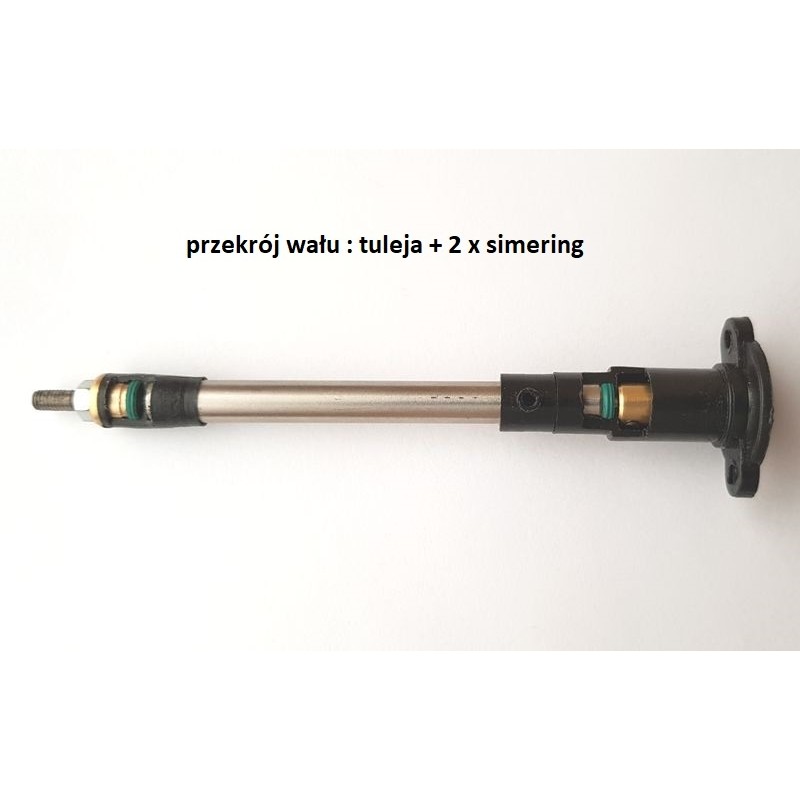

• sliding bush on the screw side
• seal on the screw side: 1 x oil seal
• seal on the motor side: 1 x oil seal
• stainless steel shaft
• stainless steel shaft housing

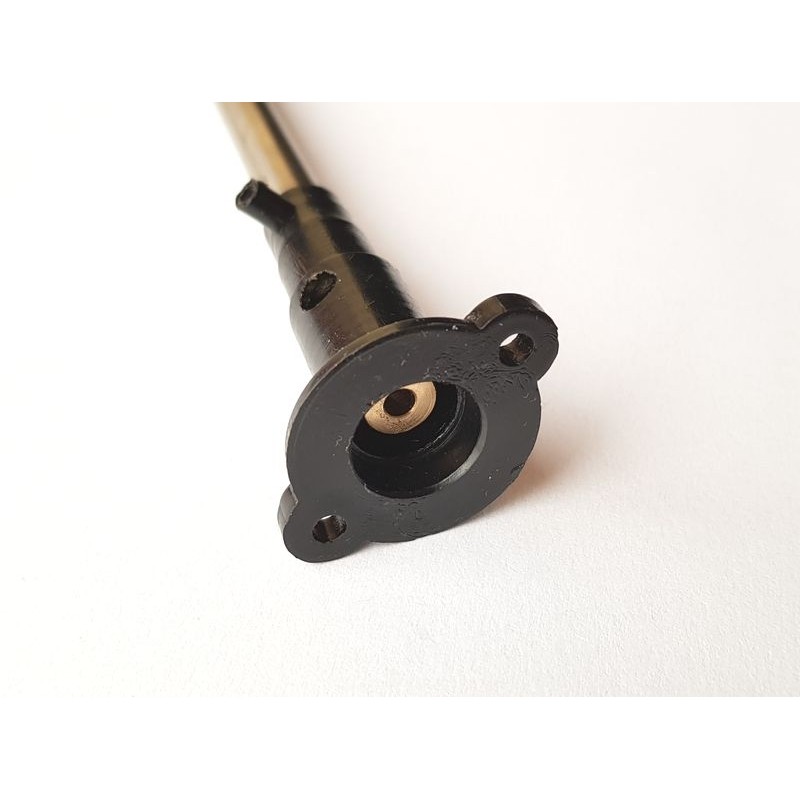

• socket for 500/600 class motors

Attention:

• the shaft must always be lubricated during operation
