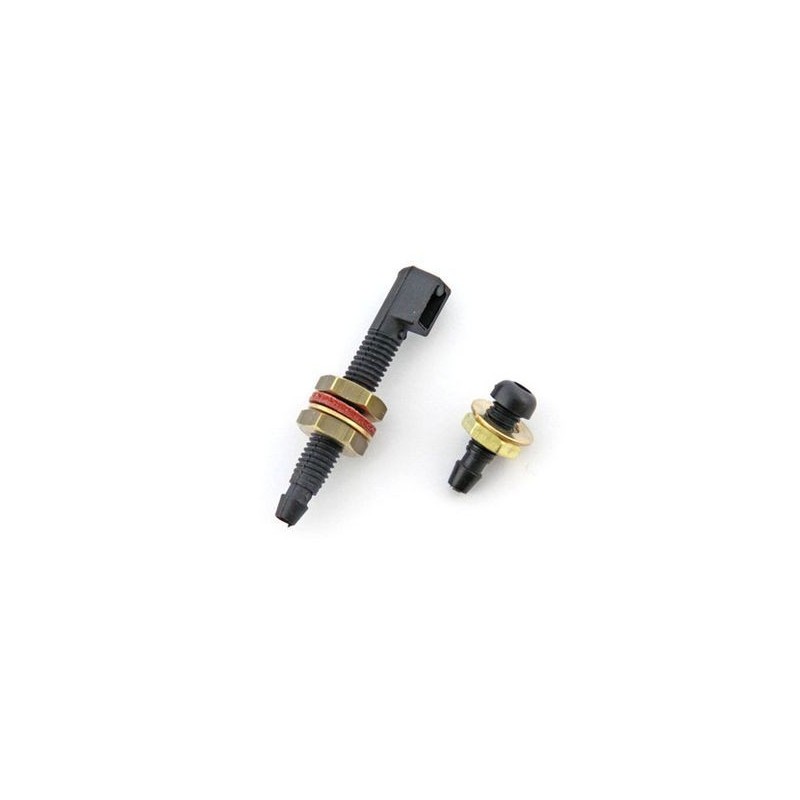

WATER INTAKE AND OUTLET FOR ENGINE COOLING - COMPLETE (4001-001)

The hull water intake and exit for motor boats made of nylon.

This kit is used in remote-controlled model boats that use a water cooling system for the engine and speed controller or other model components.

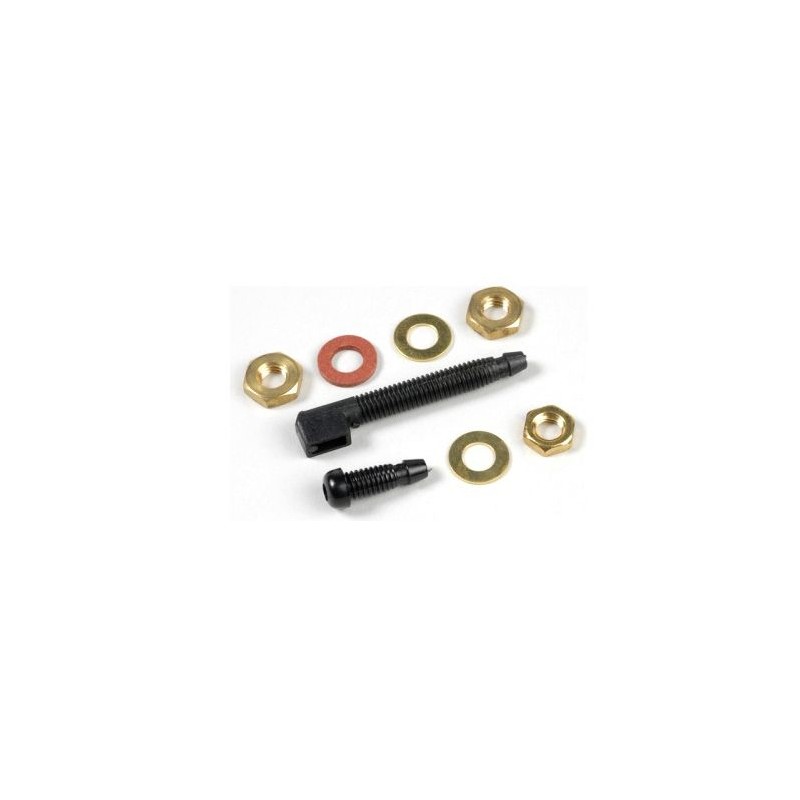

The kit consists of a water intake, a water outlet from the hull, all necessary washers, gaskets and nuts.

Notes: Compatible silicone tubing - with an inner bore of 3.0 - 3.2 mm.

Dimensions of the tuber:

• overall height: 49 mm
• hole: 3 mm
• thread: M6
• thread length: 30 mm
• water intake window diameter: 7.3 x 3.8 mm

Dimensions of water withdrawal sleeve:

• overall height: 21 mm
• hole: 2 mm
• thread: M5
• thread length: 10 mm
