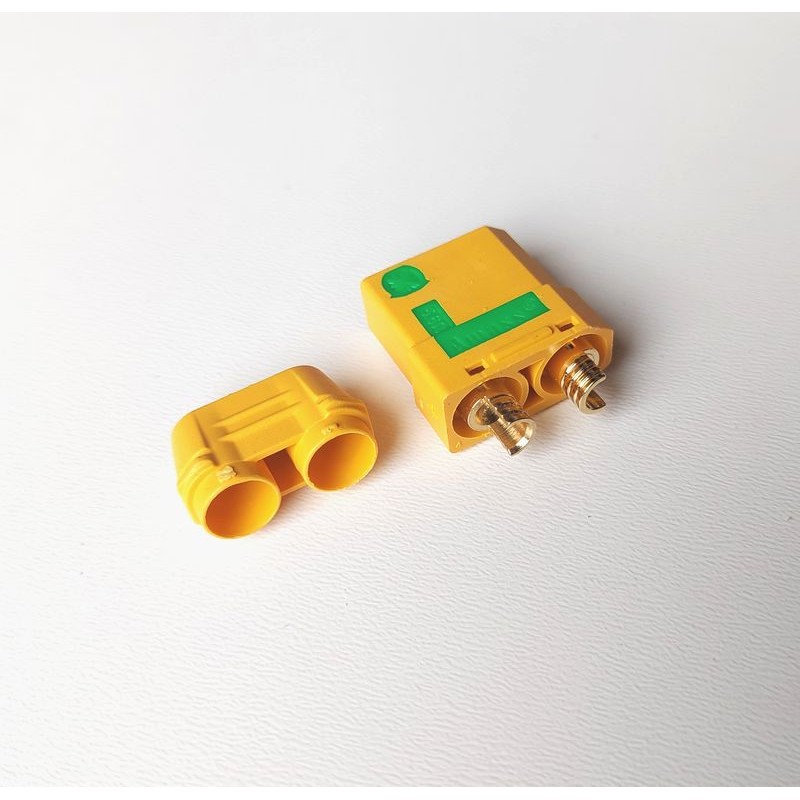

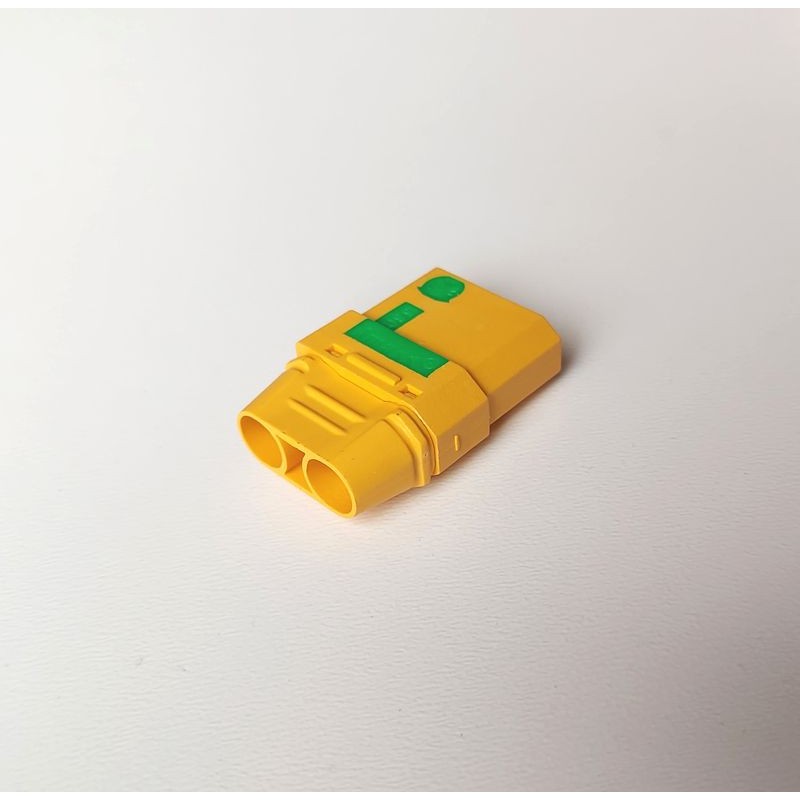

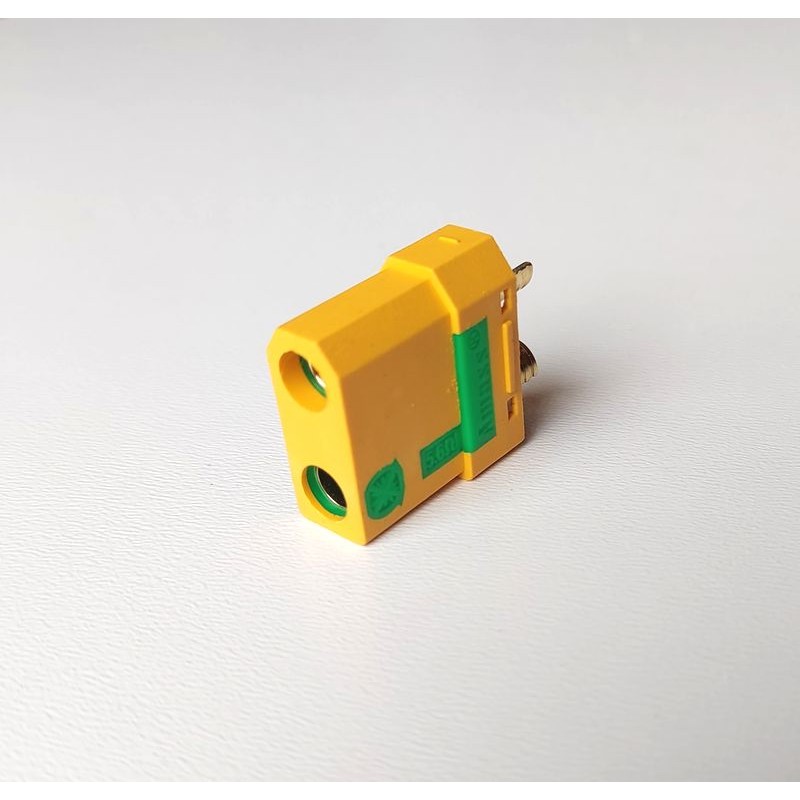

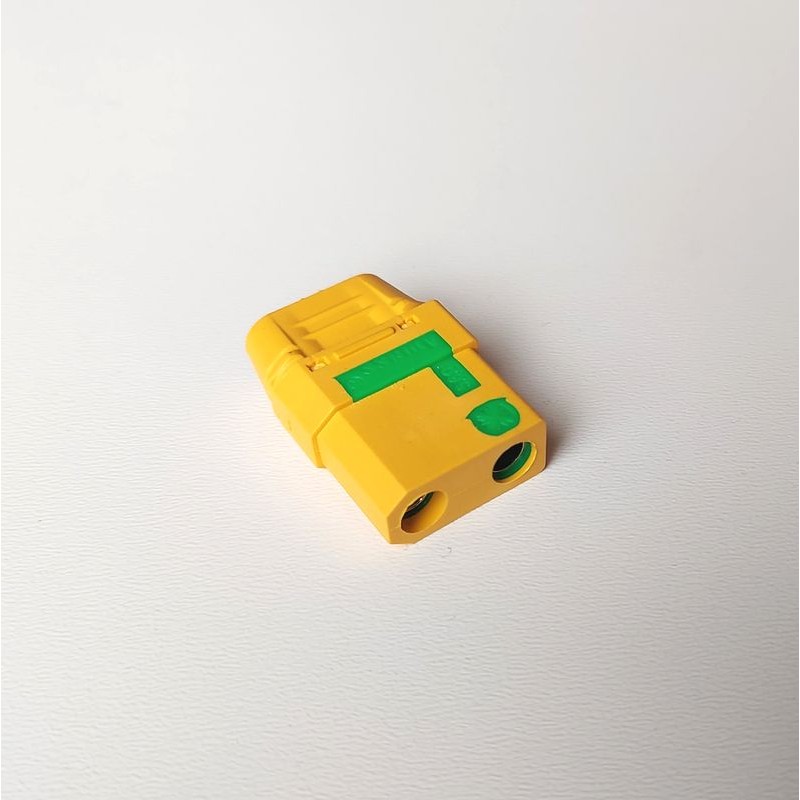

XT-90 connector with protection for connecting high-capacity and high-voltage batteries ensuring reduction of the inrush current thanks to the integrated resistor which limits the inrush current. The operation takes place in two stages, in the first step, press it halfway, wait 5 seconds for the voltage to be equalized, and then press it all the way to the end, which causes the resistor to be bridged and fully connected.
