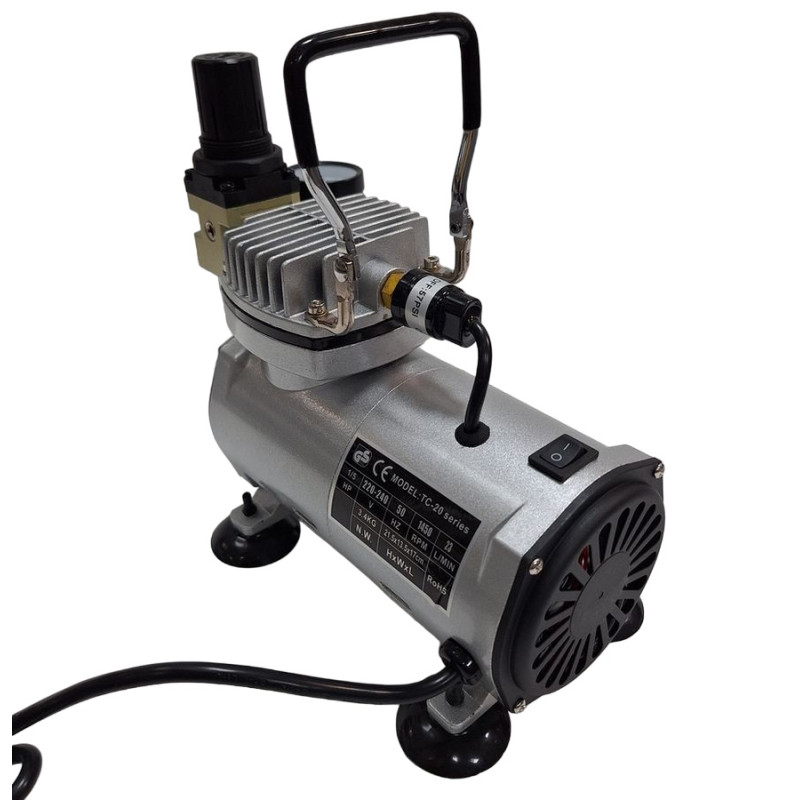

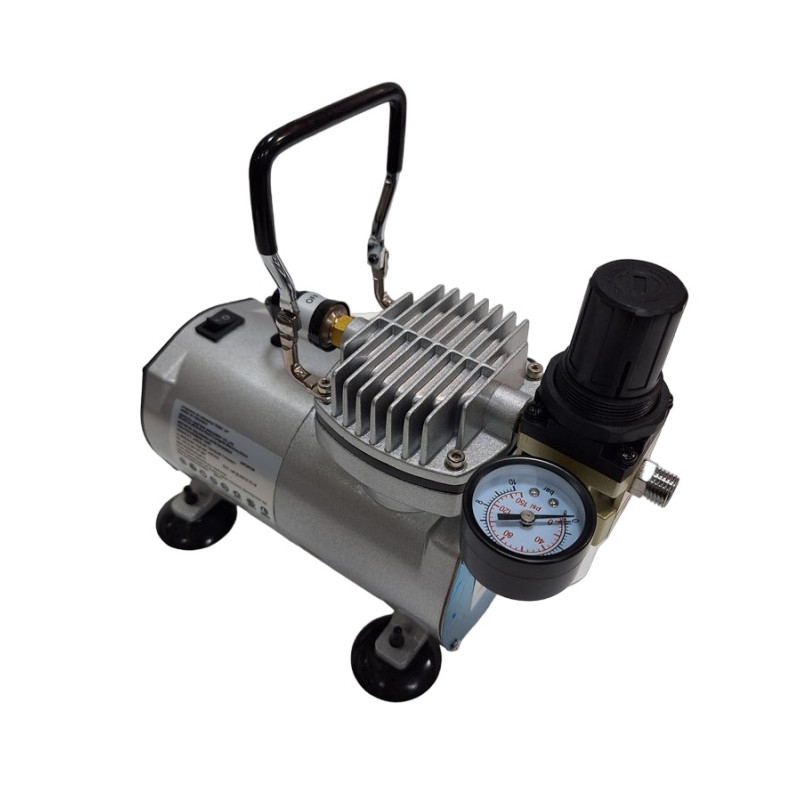

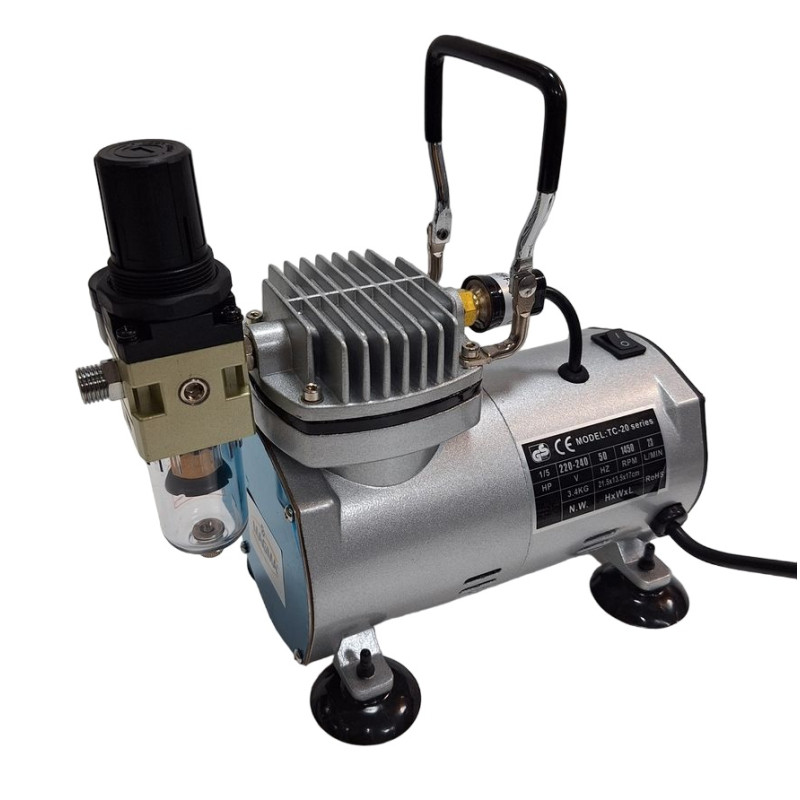

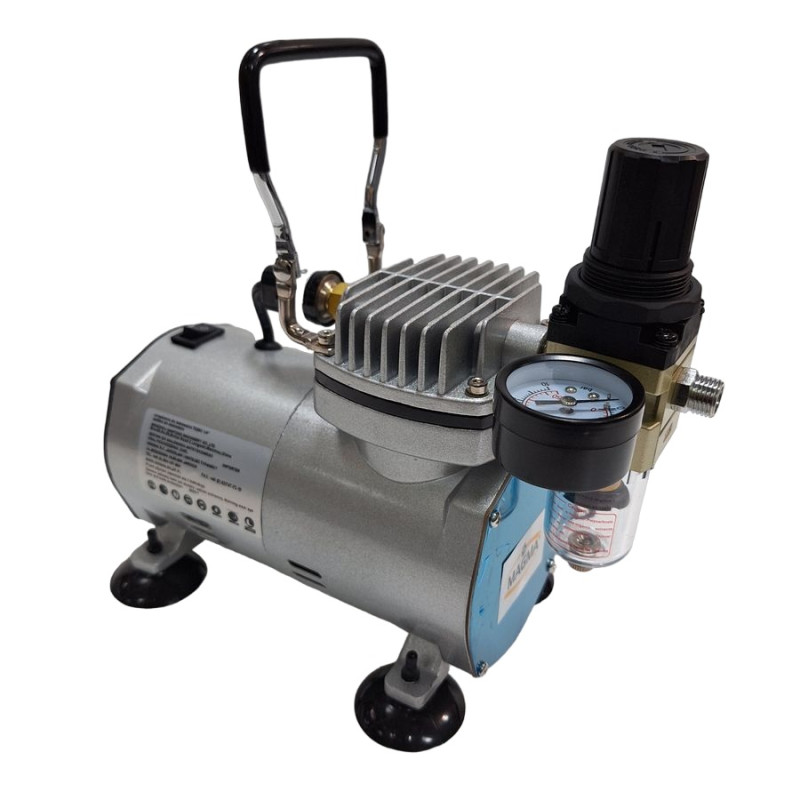

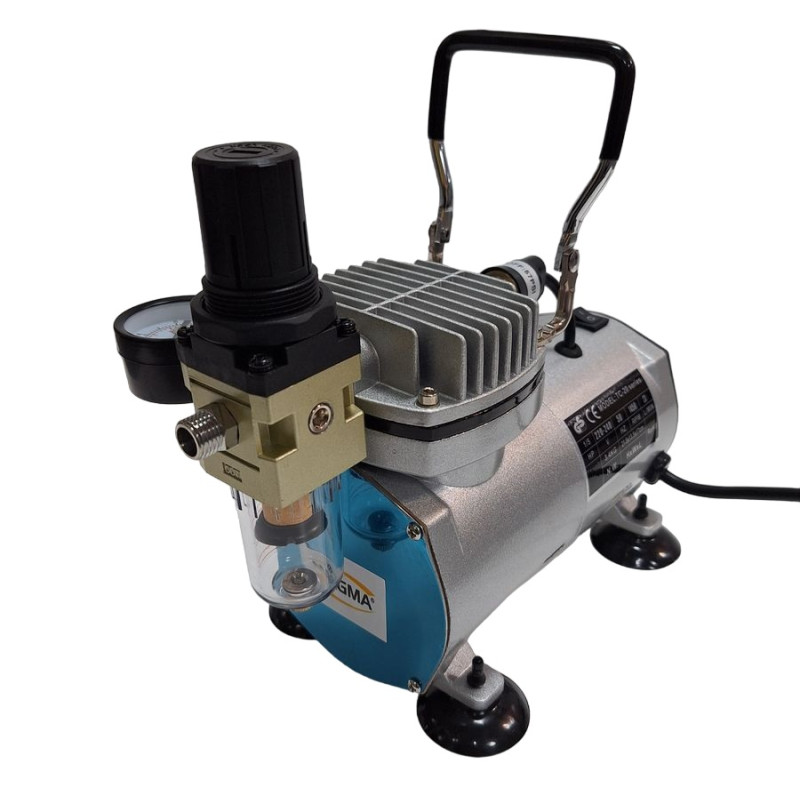

MG COMPRESSOR TC-20C

MAGMA POLAND 4bar compressor - model TC-20C.

Application:
- graphics on cars, motorcycles
- in modeling
- graphics on the body
- graphics on t-shirts
- graphics on ceramics, glass.

The product is not certified for use in painting food products (such as using paints to paint cakes.)

Advantages of the compressor:
-has a pressure switch that controls the operation of the compressor
-has a regulator for infinitely variable pressure adjustment 0-4atm with a pressure gauge graduated in PSI and BAR
-quiet ideally suited for use in living quarters
-professional design of the compressor element ensures its long life
-adapted to work with other airbrushes
-has a pressure reducer.

Pressure switch - automatically turns off the compressor at a pressure of about 4 bar.

Technical data of the compressor:
- power supply 230V
- capacity 23-25 liters/minute maximum
- pressure max 4 atm.
- has a regulator with stepless adjustment 0 to 4 atm.
- has a pressure gauge calibrated in PSI and BAR
- has a separator
- quiet drive - 47DB, only 1450 rpm
- weight - 3.6 kg
- size 24.5 x 13.5 x 17 cm
- has a built-in pressure switch that shuts off the motor at 4atm and turns it back on at 2-2.5atm.
- motor power 1/5HP

The set includes:
- compressor
- pressure regulator
- manual
- package

Ribbing on the housing causes better heat dissipation, so the compressor can work longer

The reducer is used to precisely adjust the air pressure from 0 to 4 bar:

Rubber feet absorb vibration

*Follow the enclosed instructions.
