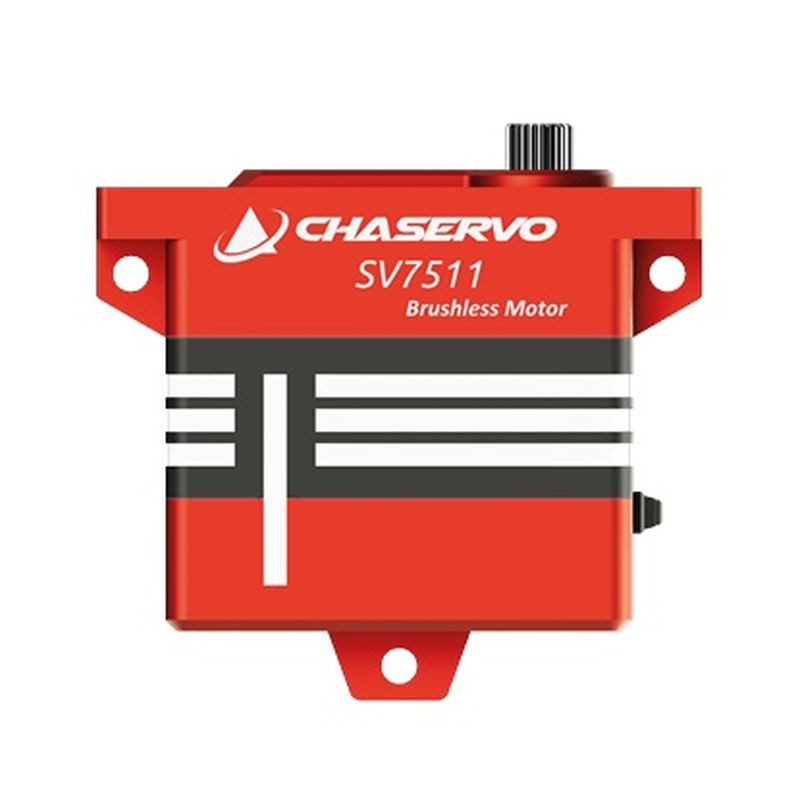

CHASERVO SV7511 (72kg / 0.10sec/60° / at 28V) / 17mm

Power and Precision
17 mm 24V 80 kg SV - Servo

The SV7511 24 V high-performance servo motor is optimized for maximum performance and speed with very low power consumption. Mounting brackets for horizontal and vertical mounting provide maximum flexibility in mounting solutions.

In cooperation with PowerBox Systems, we have developed a suitable 24 V (6s LiPo) dual-wire power supply for use in model aircraft with our SV servos. Its use in 3D aerobatic models, XXXL models, RC cars and many other applications leaves nothing to be desired.

The servo has been optimized to industry standards to ensure maximum power, zero backlash and durability. Chassis components are made of high-alloyed aluminum, and combined with double ball bearings and hardened steel gears, provide precise control without backlash.

This speaks for itself.
The SV7511 24V high-performance servo motor is a powerful and versatile device suitable for a wide range of applications. It has been optimized for maximum performance and speed with very low power consumption.

Mounting brackets for horizontal and vertical mounting provide maximum flexibility in mounting solutions. In cooperation with PowerBox Systems, we have developed a suitable dual 24V (6s LiPo) power supply for use in model aircraft with our SV servos.

The servo is ideal for use in 3D aerobatic models, XXXL models, RC cars and other applications requiring high performance and precision. It has been optimized according to industry standards to ensure maximum power, backlash-free operation and durability.

Technical specifications:

• voltage (DC) - range [V]: 22-28
• nominal voltage (direct current) [V]: 24
• torque - "holding torque" [kg/cm]: 22V - 65.0 / 24V - 75.0 / 28V - 80.0
• torque - "output torque" [kg/cm]: 22V - 58.5 / 24V - 67.5 / 28V - 72.0
• speed [s/60°]: 22V - 0.12 / 24V - 0.11 / 28V - 0.10
• gears: metal
• bearing: 2 x ball bearing
• dimensions [mm]: 40.5 x 17 x 40
• weight [g]: 74
• output shaft: 25T - 6 mm
• motor: 4-pole brushless
• frequency: 1520µs / 333Hz
• pulse width: 900µs-2100µs

For more information and photos, visit the manufacturer's website : TU

*Follow the instructions included with the product.
