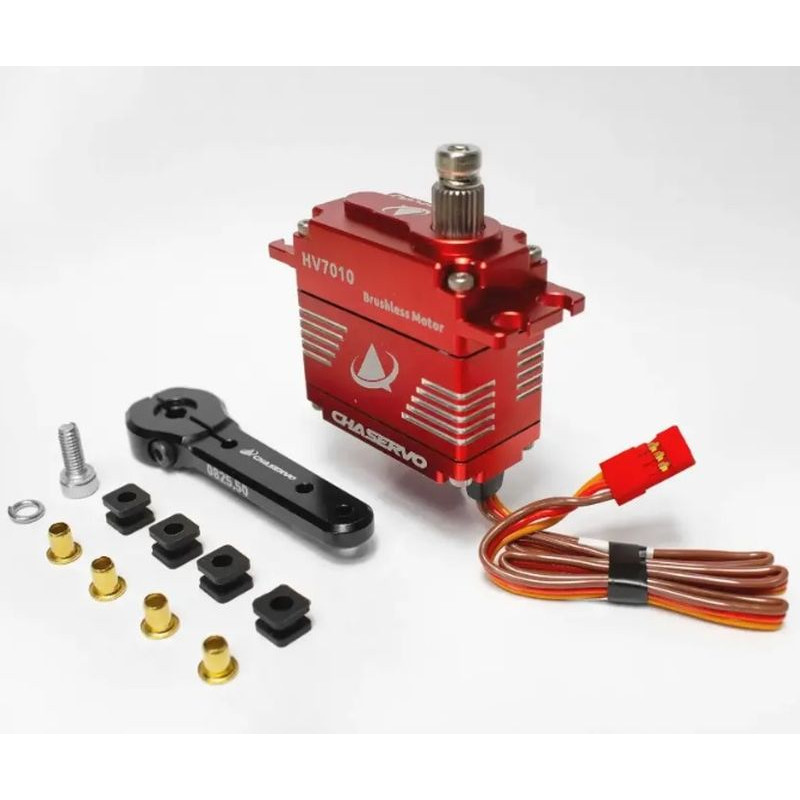

CHASERVO HV7010 (63kg / 0.10sec/60°) / 20mm

Is this still the standard?
20 mm 70 kg HV - Servo | IP65

The 20 mm HV7010 high-performance servo has been "tuned" for maximum performance and speed. Its use in 3D aerobatic models, large jet aircraft and many other applications leaves nothing to be desired.

The 8mm diameter T25 output shaft is designed for the highest loads and ideal power transfer to the rudder. Housing components are made of high-alloy aluminum and combined with six ball bearings and hardened steel gears provide precise control without backlash.

For optimal installation, the PWM cable is bent 90° beyond the housing cover. A built-in non-contact Hall sensor provides ideal conditions for long-term continuous and vibration operation.

Best HV servo - standard.

Chaservo HV7010 is a high-performance servo with high power and speed. It is ideal for a wide range of modeling applications, including RC aircraft, gliders, powered aircraft and other models requiring high performance and precision in a large package.

The Chaservo HV7010 motor is made of high-quality materials and features a robust design. The hardened steel gearbox is resistant to wear and ensures a long service life.

Technical data:

• voltage - range [V]: 6,0 - 8,4
• nominal voltage [V]: 7,4
• torque - "holding torque" [kg/cm]: 6.0V - 50.0 / 7.4V - 60.0 / 8.4V - 70.0
• torque - "output torque" [kg/cm]: 6.0V - 45.0 / 7.4V - 54.0 / 8.4V - 63.0
• speed [s/60°]: 6V - 0.15 / 7.4V - 0.12 / 8.4V - 0.10
• gears: metal
• bearing: 6 x ball bearing
• dimensions [mm]: 40 x 20 x 40
• weight [g]: 87
• output shaft: 25T - 8 mm
• motor: 4-pole brushless
• frequency: 1520µs / 333Hz
• pulse width: 500µs-2500µs

For more information and photos, visit the manufacturer's website : TU

*Follow the instructions included with the product.
