CHASERVO Digital Servos

CHASERVO HV75H (4.5kg / 0.09sec/60°) / 7.5mm

€59.52
13-1745
CHASERVO Germany
In stock

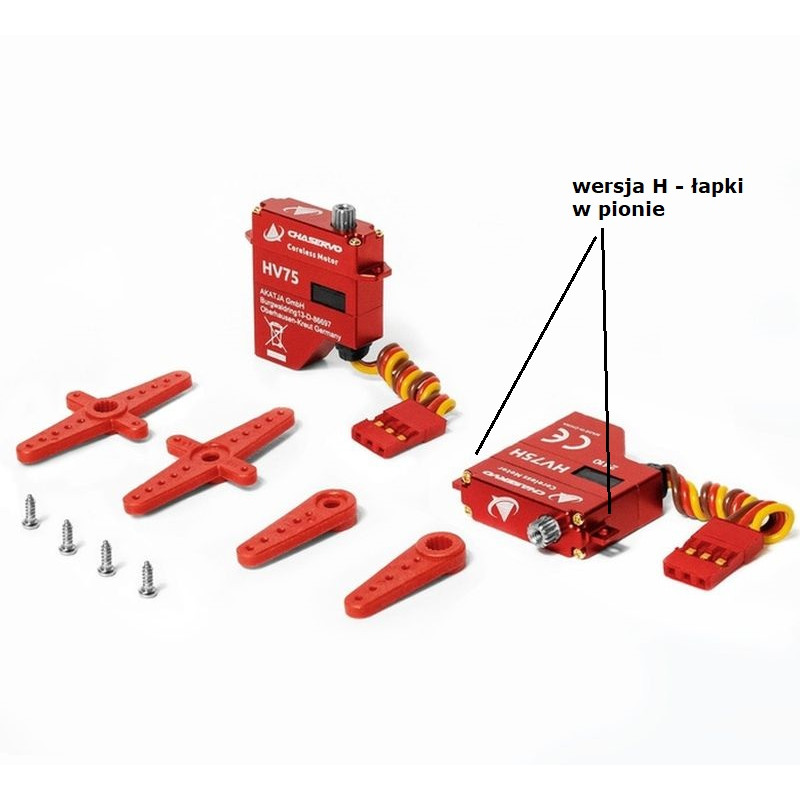

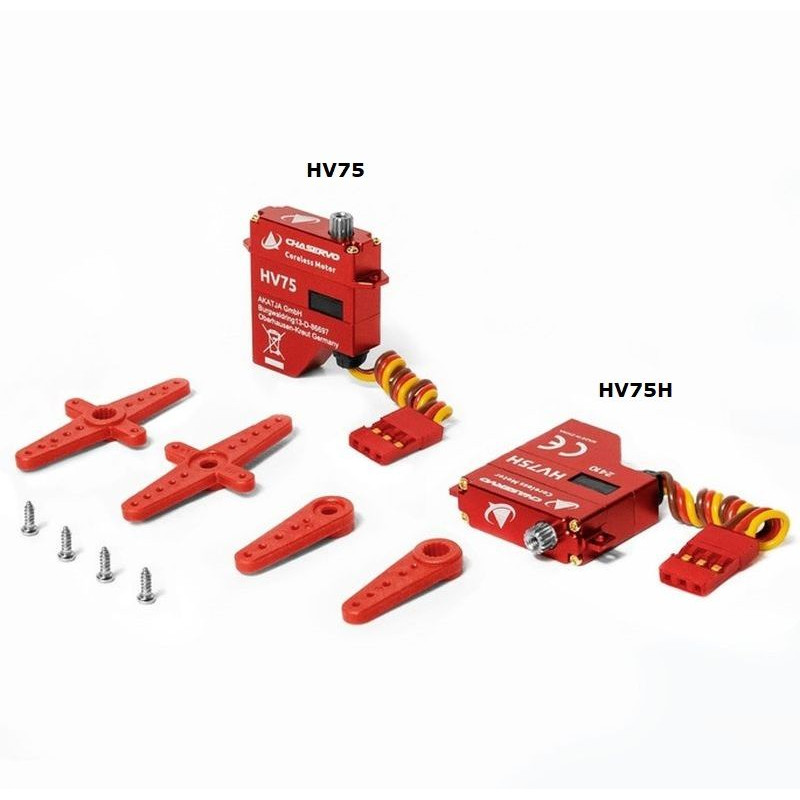

The new HV75 series offers a holding force of 6.5 kg and is available in two versions. It is compact enough to fit into even thin surfaces (low wing profiles), yet strong enough to play a key role in your projects.

Technical specifications:

  • voltage - range [V]: 4,8 - 8,4
  • nominal voltage [V]: 7,4
  • torque [kg/cm]: 6V - 3 / 7.4V - 4 / 8.4V - 4.5
  • speed [s/60°]: 6V - 0.13 / 7.4V - 0.10 / 8.4V - 0.09
  • gears: metal
  • bearing: 2 x ball bearing
  • dimensions [mm]: 23 x 7.5 x 27.5
  • weight [g]: 12
  • output shaft: 15T - 4 mm
  • motor: coreless DC
  • frequency: 1520µs / 333Hz
  • pulse width: 900µs-2100µs

More information and photos on the manufacturer's website.

*Follow the instructions included with the product.
