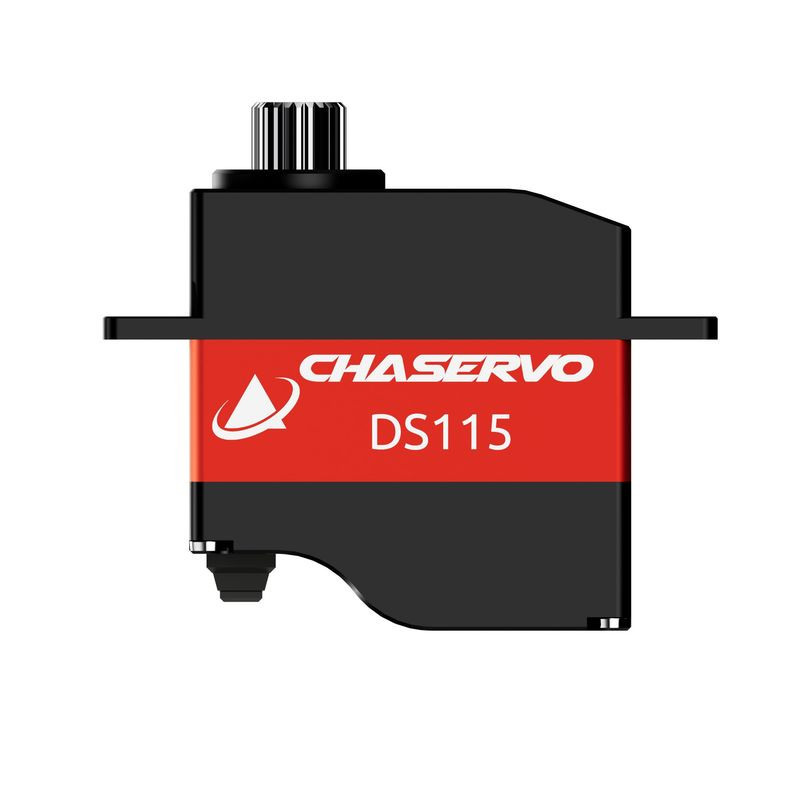

CHASERVO DS115 (5.4kg / 0.08sec/60°) / 11.5mm

The Chaservo DS115 is a high-performance 11.5mm digital servo with dual ball bearings and a heavy-duty metal gearbox. This fast, powerful and precise DS servo is suitable for all modeling applications.

With a wide voltage range from 3.3 V to 9 V, the Chaservo programmable DS115 is a reliable, versatile and universal servo with impressive performance. In the high-voltage range, the servo features an impressive response time of just 0.08 s/60° at 8.4 V. The aluminum-reinforced, heavy-duty technopolymer housing provides long-lasting and reliable vibration damping.

Technical data:

• voltage - range [V]: 4,0 - 9,0
• nominal voltage [V]: 7,4
• torque [kg/cm]: 3.5V - 3.24 / 6.0V - 4.95 / 8.4V - 5.40
• speed [s/60°]: 4.8V - 0.13 / 7.4V - 0.09 / 8.4V - 0.08
• gears: metal
• bearing: 2 x ball bearing
• dimensions [mm]: 23 x 11.5 x 24.5
• weight [g]: 15
• output shaft: 15T - 5 mm
• motor: coreless DC
• frequency: 1520µs / 333Hz
• pulse width: 900µs-2100µs

More information and photos on the manufacturer's website.

*Follow the instructions included with the product.
