CHASERVO Digital Servos

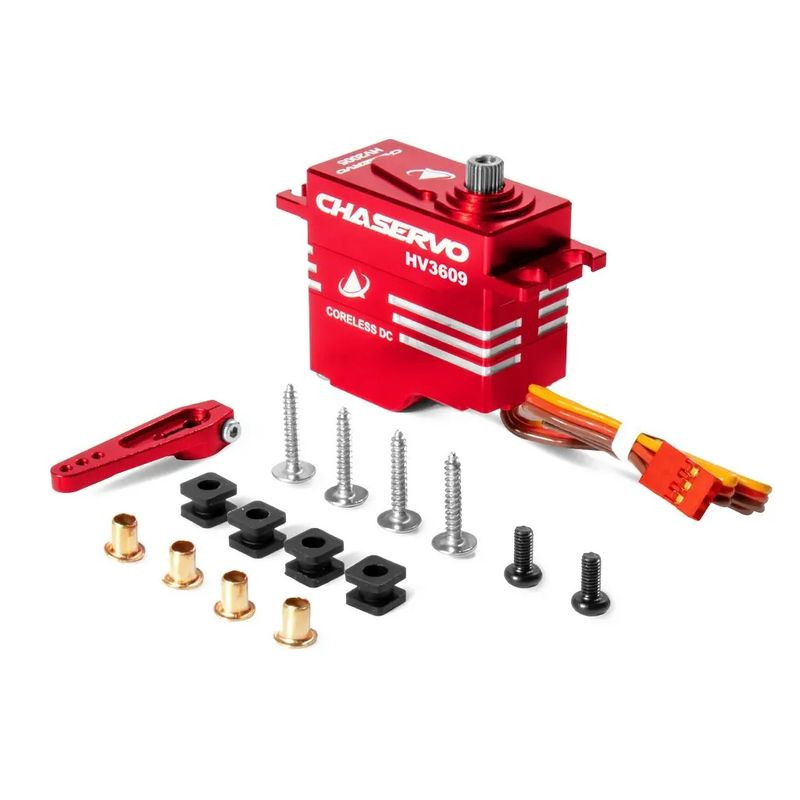

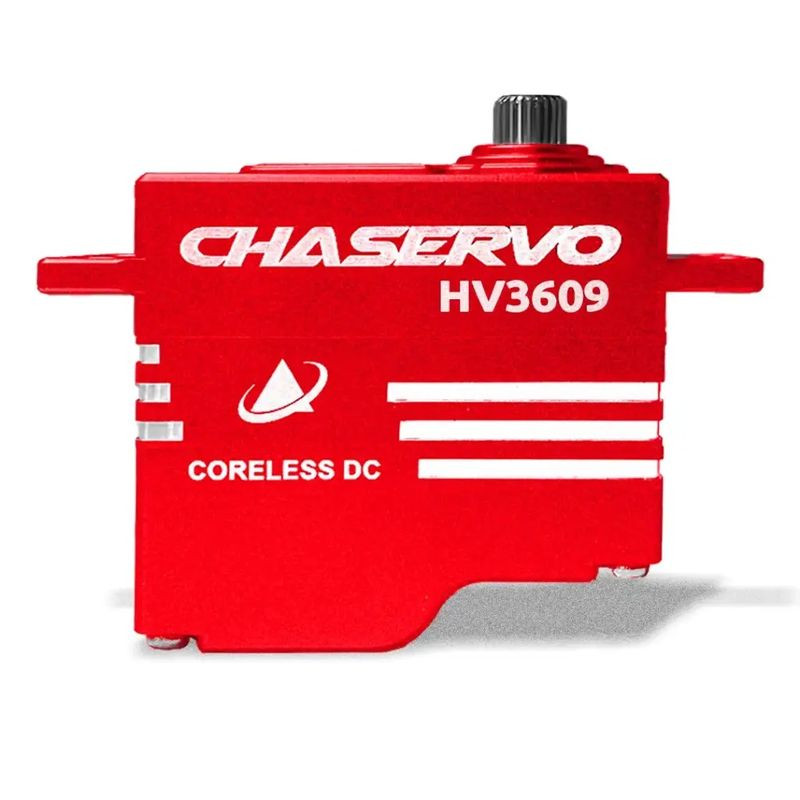

CHASERVO HV3609 (36kg / 0.09sec/60°) / 20mm

€84.76
13-1605
CHASERVO Germany
In stock

CHASERVO in aluminum housing with double ball bearings and wide voltage range.

Technical data:

  • voltage - range [V]: 4,8 - 8,4
  • nominal voltage [V]: 7,4
  • torque - "holding torque" [kg/cm]: 4.8V - 24 / 6V - 30 / 7.4V - 36 / 8.4V - 40
  • torque - "output torque" [kg/cm]: 4.8V - 16 / 6V - 20 / 7.4V - 24 / 8.4V - 27
  • speed [s/60°]: 4.8V - 0.13 / 6V - 0.11 / 7.4V - 0.09 / 8.4V - 0.08
  • gears: metal
  • dimensions [mm]: 40,5 x 20 x 40
  • weight [g]: 81
  • output shaft: 25T / 6 mm
  • motor: coreless
  • operating frequency: 1520µs/333Hz
  • pulse width: 500µs-2500µs

For more information and photos, visit the manufacturer's website : TU.

*Follow the instructions included with the product.
