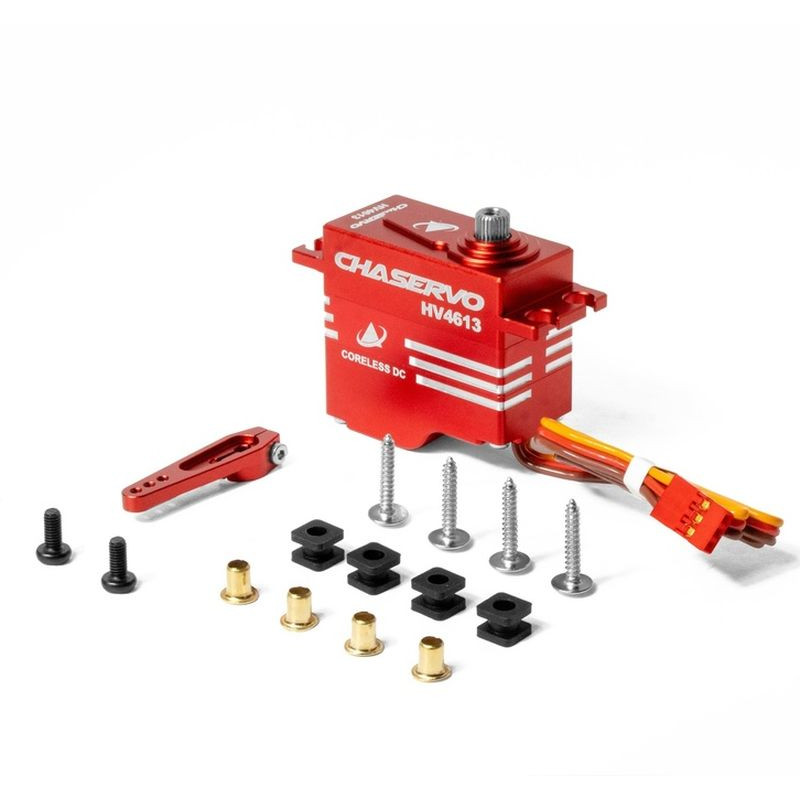

CHASERVO HV4413 (50kg / 0.12sec/60°) / 20mm

Designed for the highest demands - CHASERVO HV4613 combines precision, power and reliability in a top-of-the-line servo. Ideal for demanding modelers who don't want to make any compromises.

With its impressive torque, the HV4613 motor provides excellent performance in any application - whether in model aircraft, remote-controlled cars or even robotics. Compatible with a wide voltage range from 6 V to 8.4 V

Robust design with durable metal gears that retain their shape and perform even under heavy loads. Ideal for continuous use. With the most precise tuning and high torque, the servo guarantees precise movements and excellent resolution.

The use of a premium aluminum housing guarantees extra stability and heat dissipation.

Ideal for a variety of modeling projects - from airplanes to boats and cars

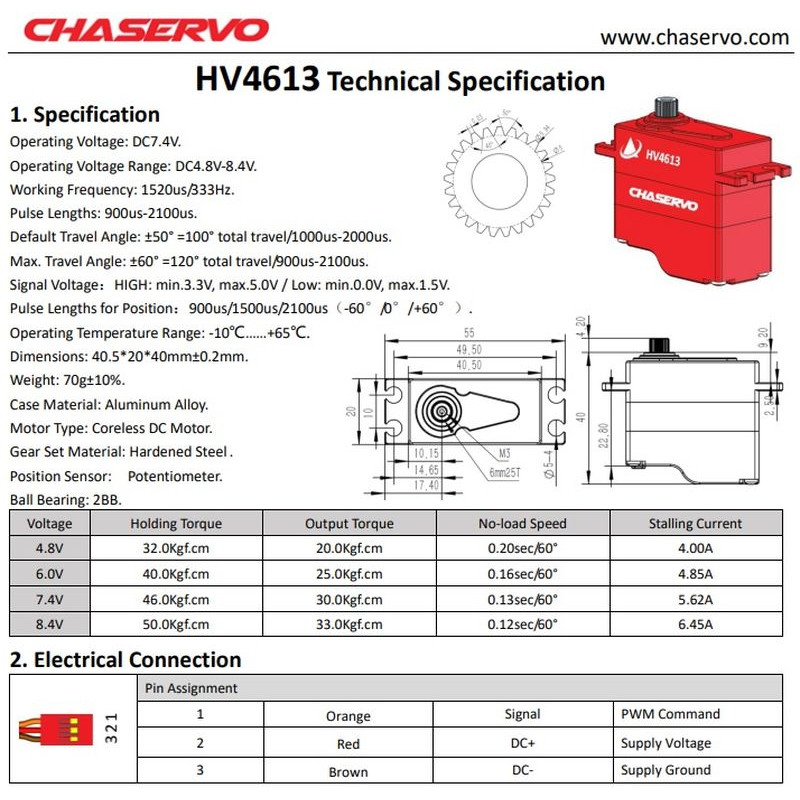

Technical specifications:

• voltage - range [V]: 4,8 - 8,4
• nominal voltage [V]: 7,4
• torque - "holding torque" [kg/cm]: 4.8V - 32 / 6V - 40 / 7.4V - 46 / 8.4V - 50
• torque - "output torque" [kg/cm]: 4.8V - 20 / 6V - 25 / 7.4V - 30 / 8.4V - 33
• speed [s/60°]: 4.8V - 0.20 / 6V - 0.16 / 7.4V - 0.13 / 8.4V - 0.12
• gears: metal
• dimensions [mm]: 40,5 x 20 x 40
• weight [g]: 81
• output shaft: 25T / 6 mm
• operating frequency: 1520µs/333 Hz
• pulse width: 500µs - 2500µs

For more information and photos, please visit the manufacturer's website(found HERE).

*Follow the instructions included with the product.
