CHASERVO Digital Servos

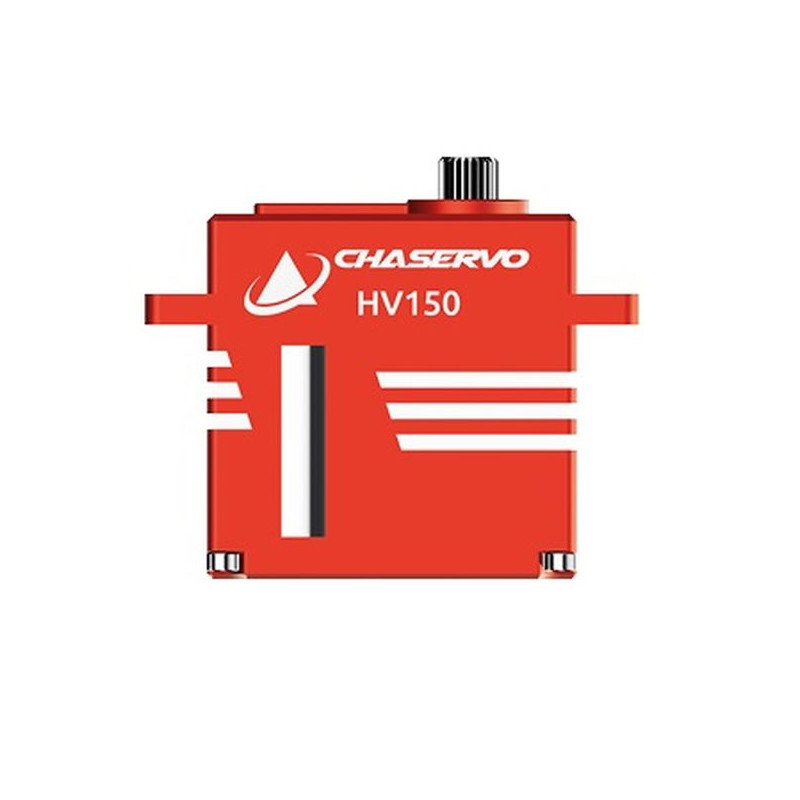

CHASERVO HV150 (33kg / 0.09sec/60°) / 15mm

€109.52
13-1095
CHASERVO Germany
In stock

CHASERVO in aluminum housing with double ball bearings and wide voltage range.

Technical data:

  • voltage - range [V]: 4,8 - 8,4
  • nominal voltage [V]: 7,4
  • torque - "holding torque" [kg/cm]: 4.8V - 20 / 6V - 25 / 7.4V - 30 / 8.4V - 33
  • torque - "output torque" [kg/cm]: 4.8V - 12 / 6V - 15 / 7.4V - 18 / 8.4V - 20
  • speed [s/60°]: 4.8V - 0.15 / 6V - 0.12 / 7.4V - 0.10 / 8.4V - 0.09
  • gears: metal
  • dimensions [mm]: 35,5 x 15 x 35,5
  • weight [g]: 51
  • output shaft: 25T / 6 mm
  • motor: 4-pole brushless
  • operating frequency: 1520µs/333Hz
  • pulse width: 500µs-2500µs

More information and photos on the manufacturer's website (link in the tab above).

*Follow the instructions included with the product.
