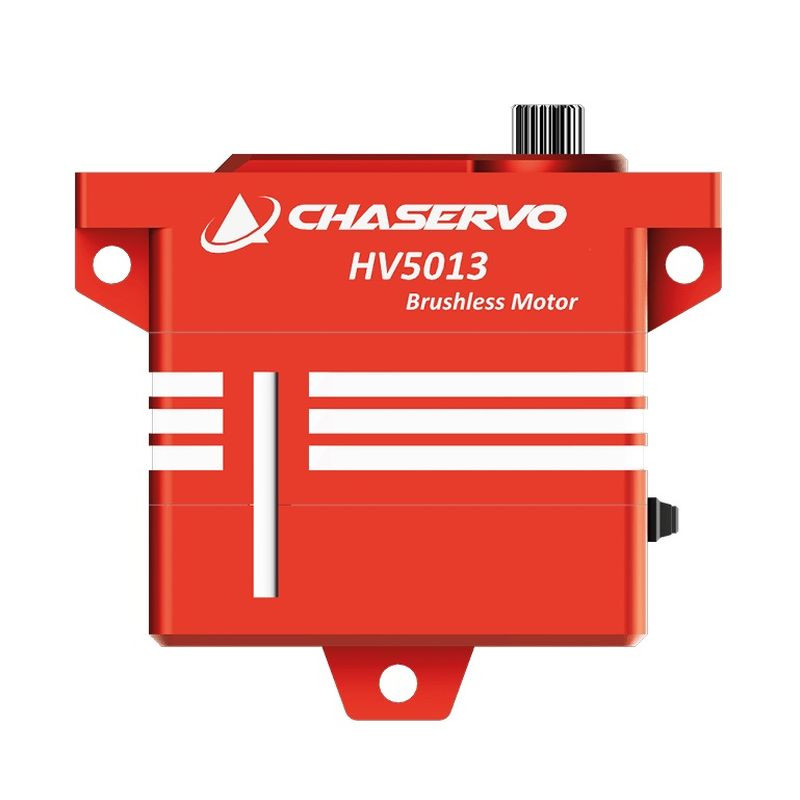

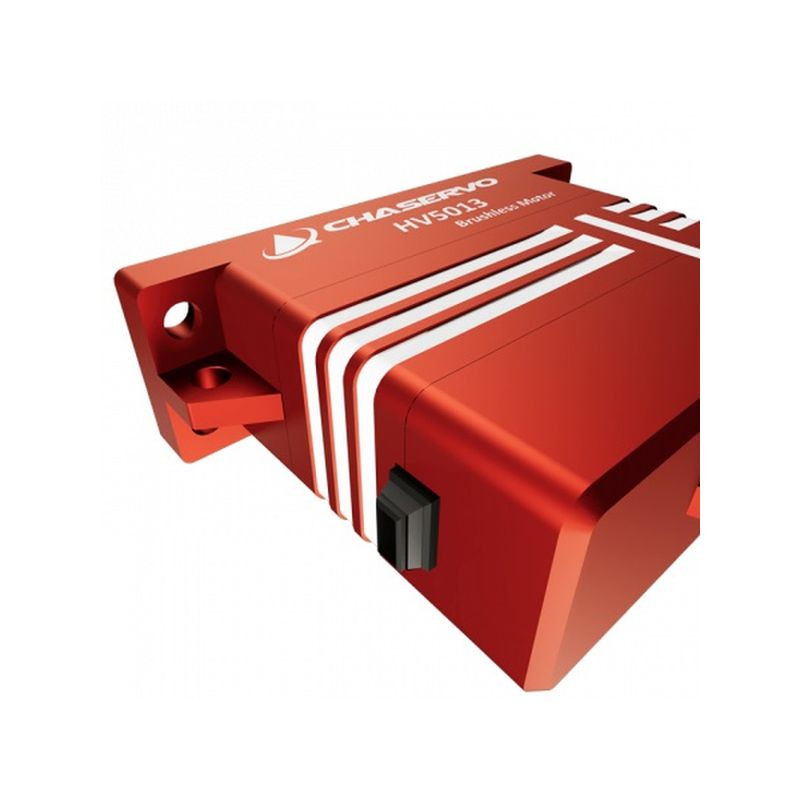

CHASERVO HV5013 (60kg / 0.11sec/60°) / 17mm

CHASERVO in an aluminum housing with dual ball bearings and a wide voltage range.

TheChaservo HV5013 is a top-of-the-line 2-in-1 servo that provides maximum flexibility with horizontal and vertical mounting brackets. It is ideal for use in modeling and robotics and impresses with high precision, high voltage and impressive positioning power.

Technical specifications:

• voltage - range [V]: 6,0 - 8,4
• nominal voltage [V]: 7,4
• torque [kg/cm]: 6V - 40 / 7.4V - 50 / 8.4V - 60
• speed [s/60°]: 6V - 0.16 / 7.4V - 0.13 / 8.4V - 0.11
• gears: metal
• bearing: 2 x ball bearing
• dimensions [mm]: 40.5 x 17 x 40
• weight [g]: 68
• output shaft: 25T
• programmable: yes
• motor: 4-pole brushless DC motor
• operating frequency: 1520µs/333Hz
• pulse width: 900µs-2100µs

For more information and photos, please visit the manufacturer's website.

*Follow the instructions included with the product.
