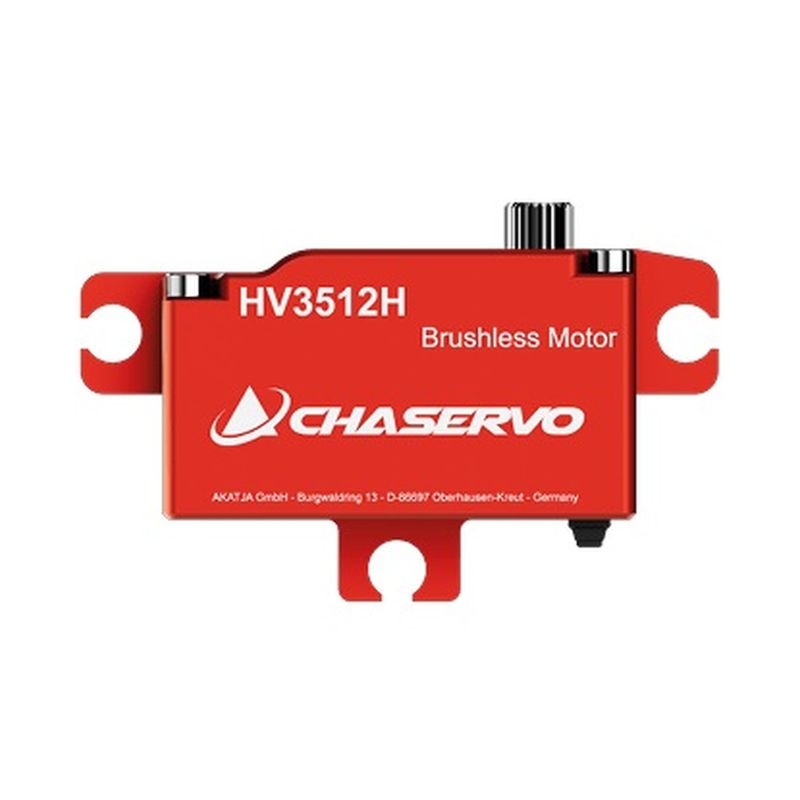

CHASERVO HV3512H (40kg / 0.11sec/60°) / 20mm

TheChaservo HV3512 is a top-of-the-line servo. It is not only compact and lightweight, but also extremely powerful. The aluminum housing will efficiently dissipate heat, and the 4-pole brushless motor will provide impressive torque of up to 40 kg at 8.4 V. Thanks to its IP65 certification, the servo can also be used in wet or dusty conditions or in demanding areas such as RC cars or boats.

Recommended for model airplanes, helicopters, cars and boats.

Specifications:

• voltage - range [V]: 6,0 - 8,4
• nominal voltage [V]: 7,4
• torque [kg/cm]: 6V - 30 / 7.4V - 35 / 8.4V - 40
• speed [s/60°]: 6V - 0.14 / 7.4V - 0.12 / 8.4V - 0.11
• gears: metal (hardened steel)
• bearing: 2 x ball bearing

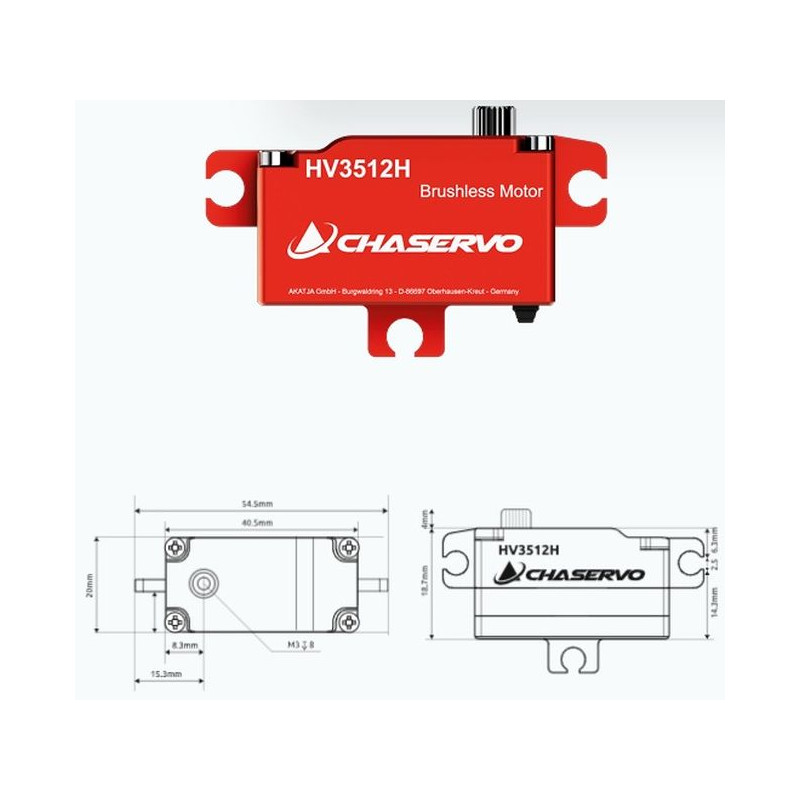

• dimensions [mm]: 40.5 x 20 x 23.1
• weight [g]: 55
• output shaft: ...
• programmable: yes
• motor: 4-pole brushless DC motor
• operating frequency: 1520µs/333Hz
• pulse range: 500µs-2100µs

For more information and photos, please visit the manufacturer's website.

*Follow the instructions included with the product.
