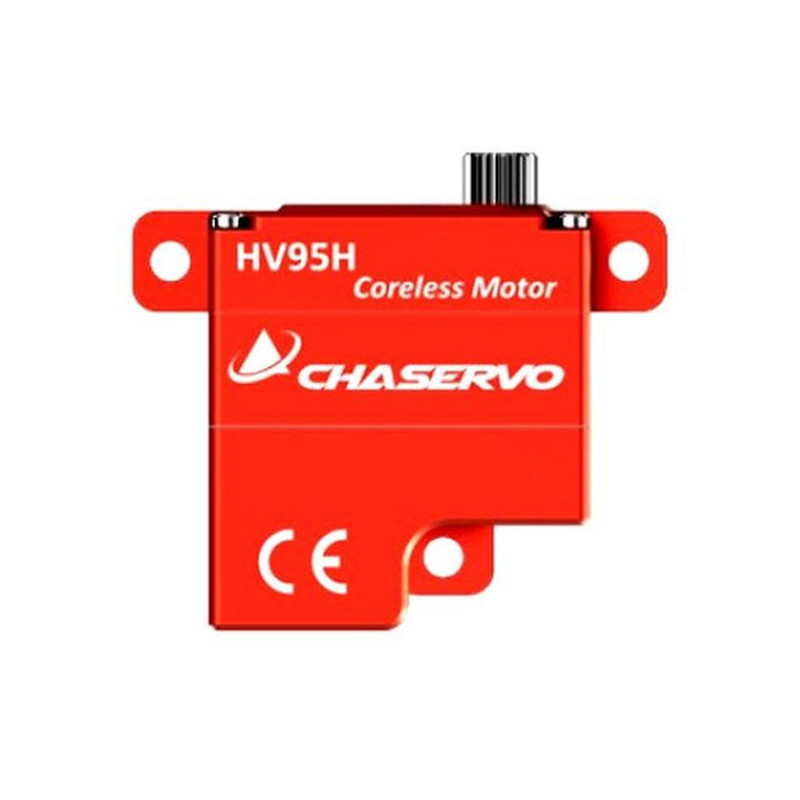

CHASERVO in a robust aluminum housing with double ball bearings and a wide voltage range.
Technical data:
- voltage - range [V]: 4,8 - 8,4
- nominal voltage [V]: 7,4
- torque [kg/cm]: 6V - 8.5 / 7.4V - 10.5 / 8.4V - 11.5
- speed [s/60°]: 6V - 0.17 / 7.4V - 0.15 / 8.4V - 0.12
- gears: metal
- bearing: 2 x ball bearing
- dimensions [mm]: 30 x 9.5 x 33.5
- weight [g]: 20
- output shaft: 25T
- motor: coreless DC
- frequency: 1520µs / 333Hz
- pulse width: 900µs-2100µs
For more information and photos, please visit the manufacturer's website.
*Follow the instructions included with the product.
