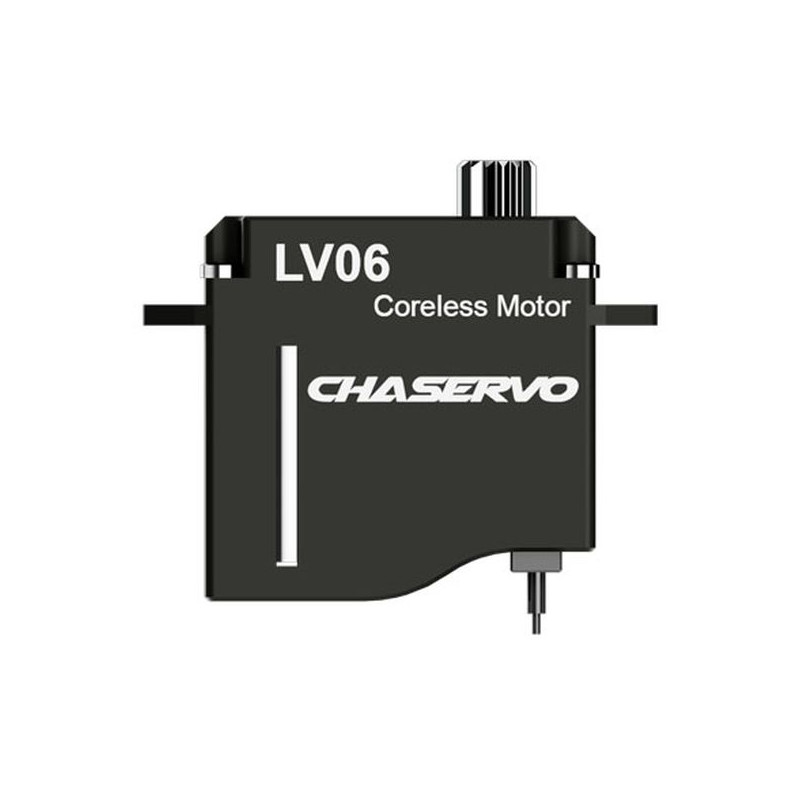

CHASERVO LV06 (1.7kg / 0.055sec/60°)

CHASERVO in aluminum housing with double ball bearings and wide voltage range. One of the thinnest servos available on the model market !

Specifications:

• voltage - range [V]: 3,3 - 5
• nominal voltage [V]: 4,2
• torque [kg/cm]: 3.3V - 0.9 / 4.2V - 1.3 / 5V - 1.7
• speed [s/60°]: 3.3V - 0.07 / 4.2V - 0.06 / 5V - 0.05
• gears: metal
• bearing: 2 x ball bearing

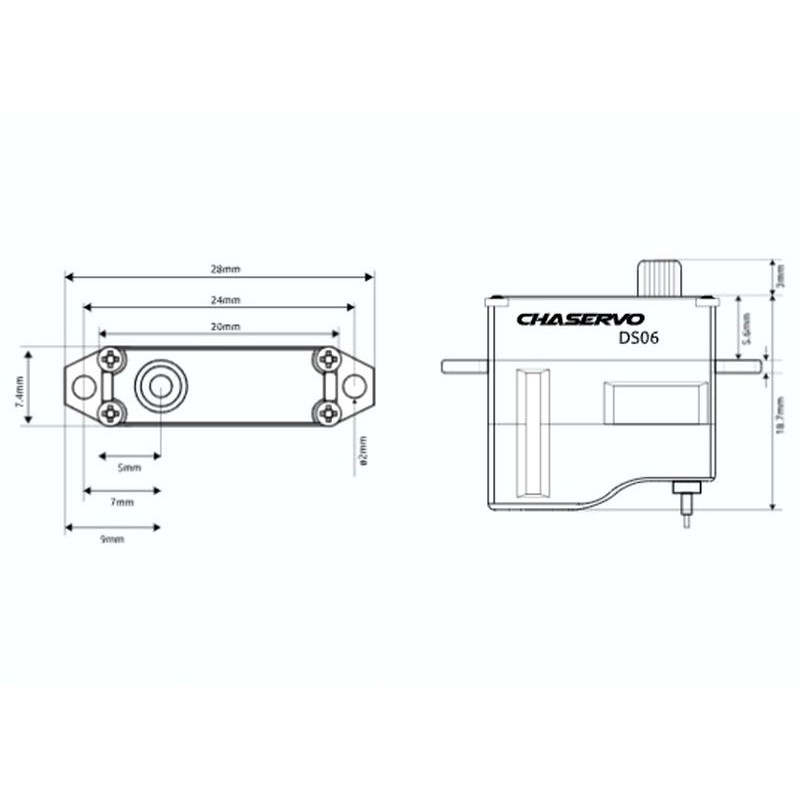

• dimensions [mm]: 19 x 6 x 18,5
• weight [g]: 6,1
• output shaft: 15T/4
• programmable: yes
• motor: coreless DC
• frequency [Hz]: 333

For more information and photos, visit the manufacturer's website.

*Follow the instructions included with the product.
