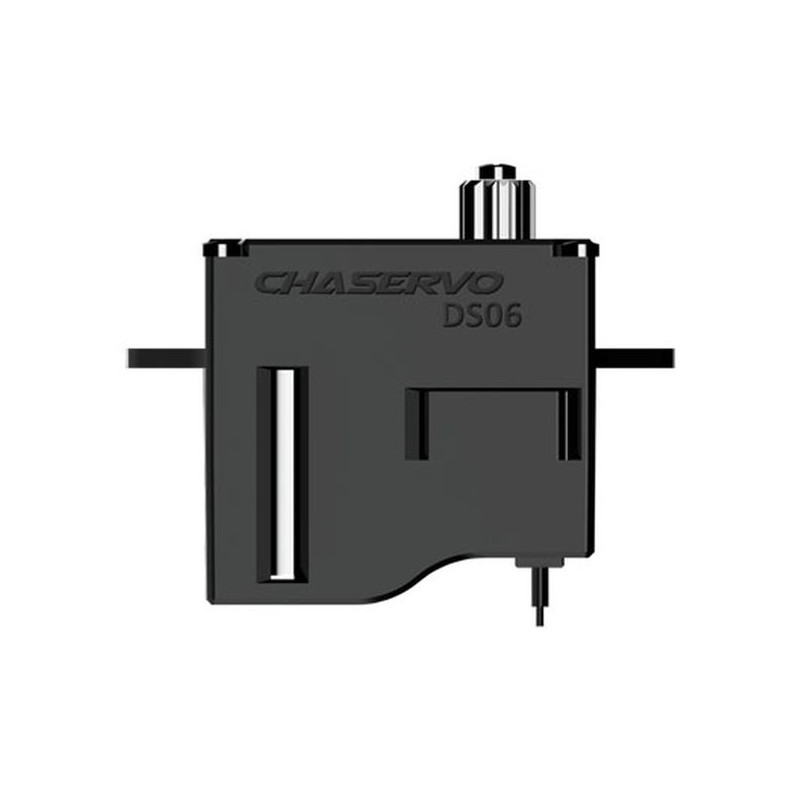

CHASERVO DS06 (1.8kg / 0.10sec/60°) / 7mm

CHASERVO in polymer housing with double ball bearings and wide voltage range. One of the thinnest servos available on the model market !

Specifications:

• voltage - range [V]: 3,8 - 8,4
• nominal voltage [V]: 6
• torque [kg/cm]: 3.8V - 0.8 / 6V - 1.5 / 8.4V - 1.8
• speed [s/60°]: 3.8V - 0.12 / 6V - 0.08 / 8.4V - 0.07
• gears: metal
• bearing: 2 x ball bearing
• dimensions [mm]: 20 x 7.4 x 18.7
• weight [g]: 6,2
• output shaft: 15T/4
• programmable: yes
• motor: coreless DC
• frequency [Hz]: 333

For more information and photos, visit the manufacturer's website.

*Follow the instructions included with the product.
