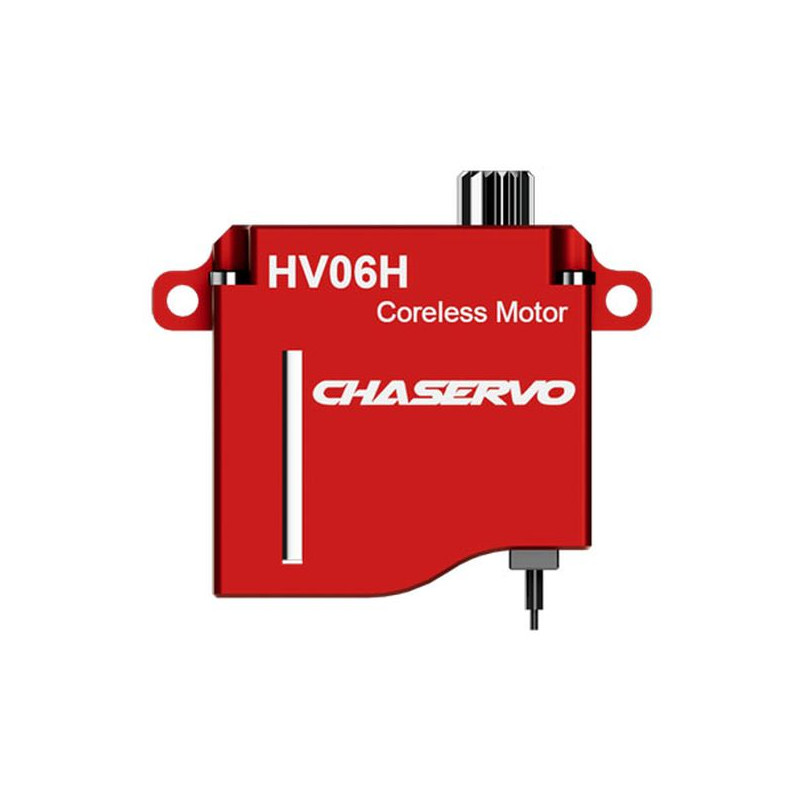

CHASERVO HV06H (2.4kg / 0.05sec/60°)

CHASERVO in aluminum housing with double ball bearings and wide voltage range. One of the thinnest servos available on the model market !

Specifications:

• voltage - range [V]: 6 - 8,4
• nominal voltage [V]: 7,4
• torque [kg/cm]: 6V - 1.5 / 7.4V - 2 / 8.4V - 2.4
• speed [s/60°]: 6V - 0.07 / 7.4V - 0.06 / 8.4V - 0.05
• gears: metal
• bearing: 2 x ball bearing
• dimensions [mm]: 19 x 6 x 18,5
• weight [g]: 6,1
• output shaft: 15T/4
• programmable: yes
• motor: coreless DC
• frequency [Hz]: 333

For more information and photos, visit the manufacturer's website.

*Follow the instructions included with the product.
