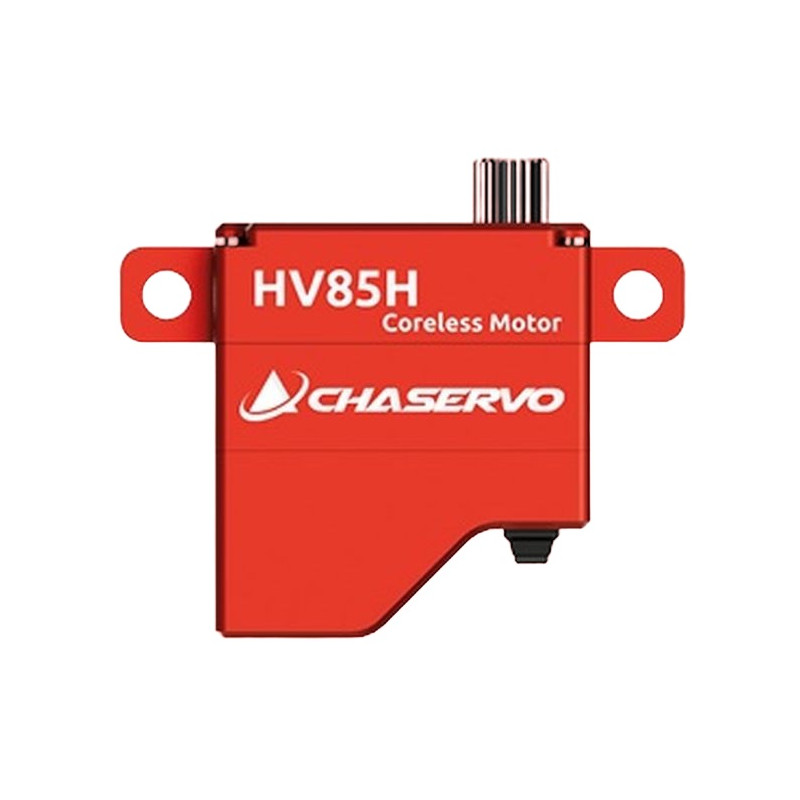

CHASERVO HV85H (8,9kg / 0.11sec/60°)

CHASERVO in aluminum housing with double ball bearings and wide voltage range.

Technical data:

• voltage - range [V]: 6 - 8,4
• nominal voltage [V]: 7,4
• torque [kg/cm]: 6V - 6.5 / 7.4V - 8.2 / 8.4V - 9.8
• speed [s/60°]: 6V - 0.16 / 7.4V - 0.12 / 8.4V - 0.11
• gears: metal
• bearing: 2 x ball bearing

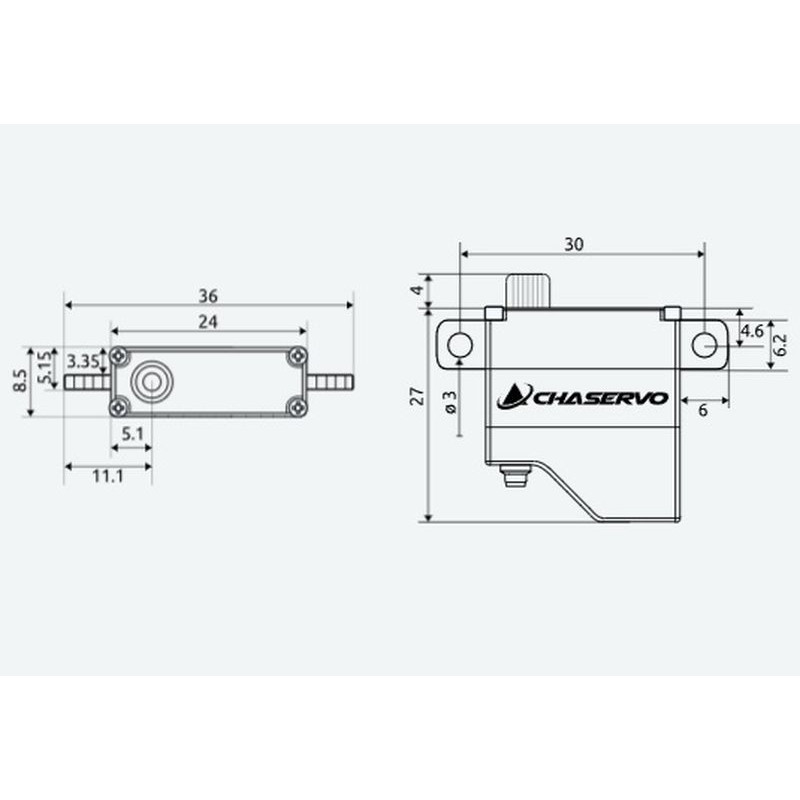

• dimensions [mm]: 24 x 8.5 x 26.5
• weight [g]: 15
• output shaft: 25T
• programmable: yes
• motor: coreless DC
• frequency [Hz]: 333

For more information and photos, visit the manufacturer's website.

*Follow the instructions included with the product.
