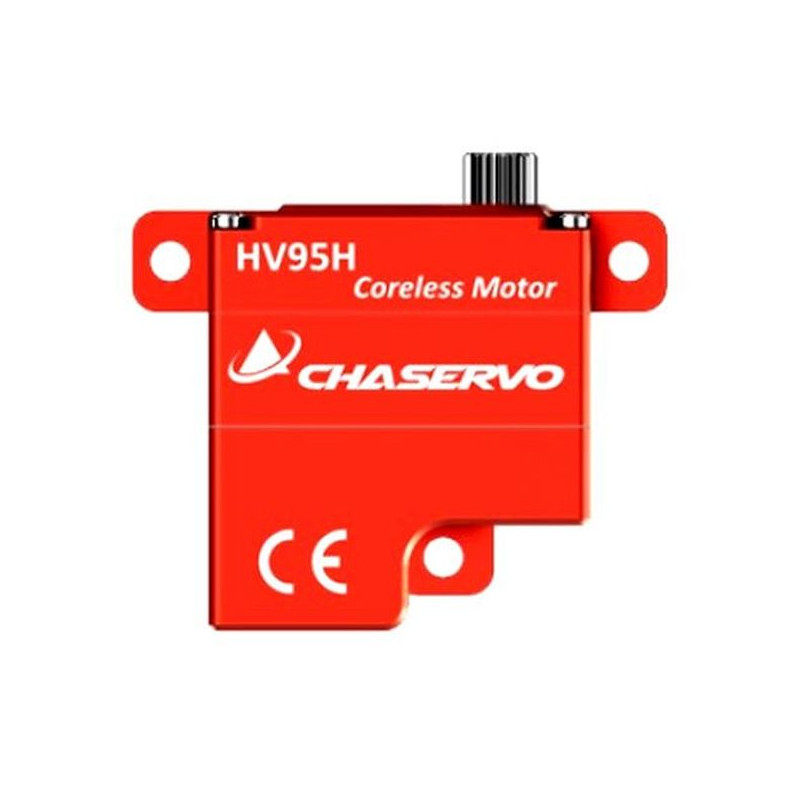

CHASERVO HV95H (11,5kg / 0.12sec/60°)

CHASERVO in a robust aluminum housing with double ball bearings and a wide voltage range.

Technical data:

• voltage - range [V]: 4,8 - 8,4
• nominal voltage [V]: 7,4
• torque [kg/cm]: 6V - 8.5 / 7.4V - 10.5 / 8.4V - 11.5
• speed [s/60°]: 6V - 0.17 / 7.4V - 0.15 / 8.4V - 0.12
• gears: metal
• bearing: 2 x ball bearing
• dimensions [mm]: 30 x 9.5 x 33.5
• weight [g]: 20
• output shaft: 25T
• motor: coreless DC
• frequency: 1520µs / 333Hz
• pulse width: 900µs-2100µs

For more information and photos, please visit the manufacturer's website.

*Follow the instructions included with the product.
