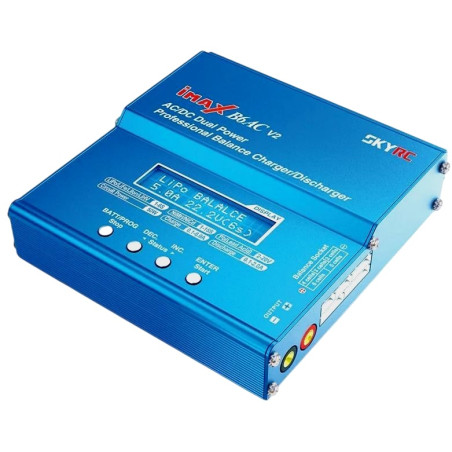

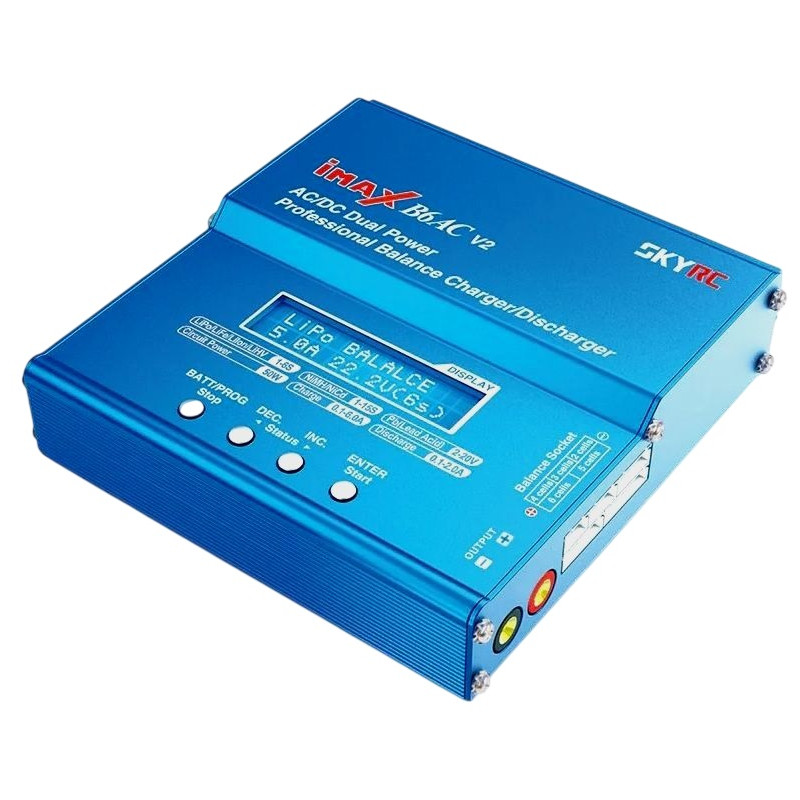

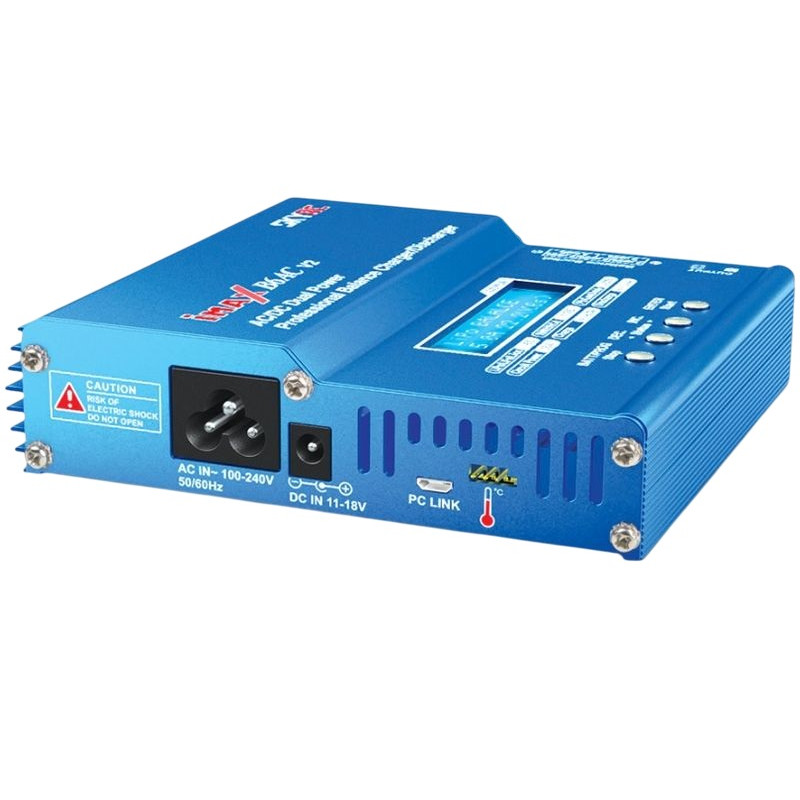

IMAX B6 AC 80W charger / with built-in power supply (100008)

SkyRC iMax B6AC V2 charger

SkyRC B6AC V2 is an improved version of the all-familiar iMax B6AC V1 charger. Compared to the B6AC V1 version, it is more stable and accurate, and has several new features. Users can set the voltage of the charger themselves, and control it with a PC. The charger has a current limit sensor, built-in resistance meter and lithium ion battery meter, temperature limit and charging time limit which makes the charger much safer than V1. SkyRC B6AC + V2 is a high-end microprocessor-based charger/discharger which is suitable for all kinds of batteries (LiPo,LiFE,Lilon). The maximum charging current is 6A, and the maximum power is 50A.

Various operation modes and control from PC

The user has the ability to monitor the voltage of packs, individual cells and many other functions to which I have a graphical view thanks to the recommended application from SkyRC.

Included:

• Charger
• Power cable
• T-ended cable terminated with: banana plug, bananas, crocodiles, futaba plug, JST plug, XT60 plug

Manufacturer SkyRC
Model SK-100008-11
Weight 632 g
Input voltage AC100-240 V /DC 11-18 V
Max. Charge 50 W
Max. Discharge 5 W
Charging current range 0.1-6 A
Discharge current range 0.1-2 A
PB battery voltage 2-20 V
LiPo/LiFe/Lilon/LiHV number of chargeable cells 1-6 S
NiMH/NiCd number of charged cells 1-15 S
