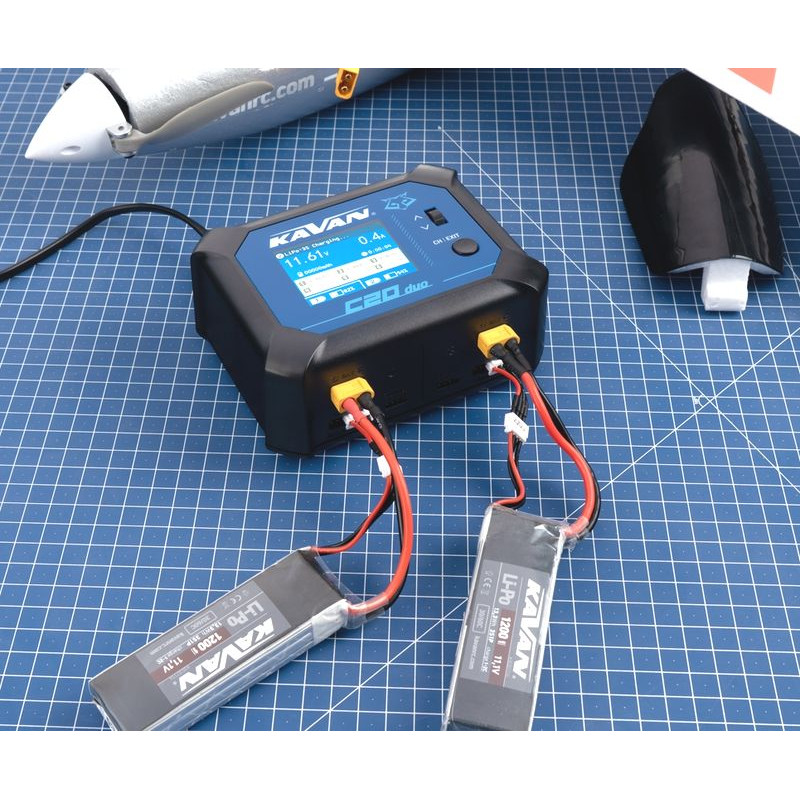

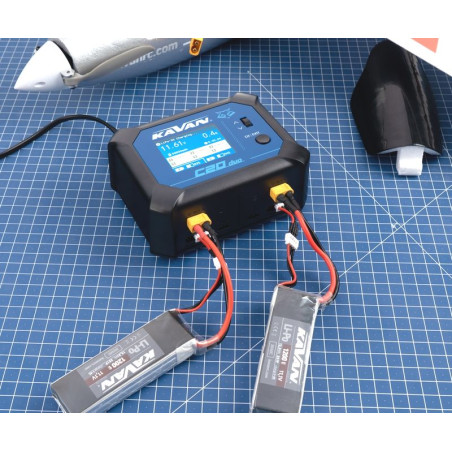

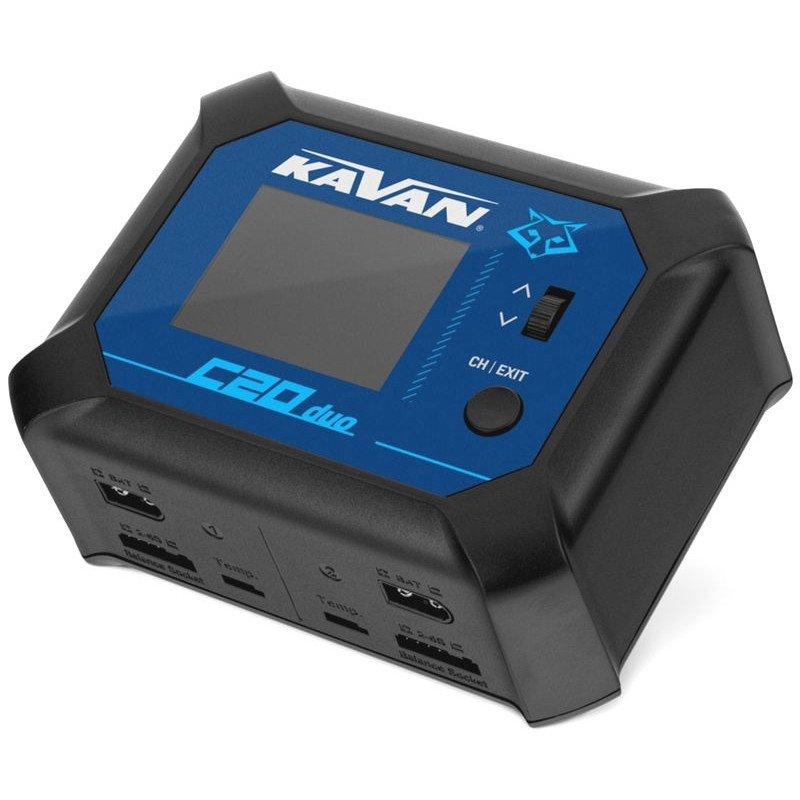

KAVAN Charger C20 Duo balanced 2 x 100W (KAV34.1045)

KAVAN C20 Duo small dual-channel charger is a smart AC/DC charger with very simple and intuitive operation. KAVAN C20 Duo is capable of charging popular battery types (NiCd, NiMH, LiPo, LiHV, ULiHV, Li-ion, LiFe, lead-acid), and is additionally equipped with built-in six-channel balancers to ensure safe charging of lithium batteries. The charger features a color LCD display and a programming knob and button for convenient and quick parameter setting, control and monitoring of the charging process.

In addition to the compact, palm-sized design and intuitive operation, the worthy features include:

• the program of new types of high-voltage LiHV batteries with a terminal voltage for charging up to 4.35V
• the possibility of synchronous operation of both channels to charge two identical batteries
• adjustable charging end voltage for lithium batteries (allows gentle charging, which pilots like, or brutal overcharging, which "car fanatics" like)

Overview of basic functions and parameters

• Mains power supply 100-240 V/50-60 Hz
• Power supply 11-18 V DC (XT60 socket)
• For charging 1-16 NiCd/NiMH cells, 1-6S Li-ion/Li-po/Li-Fe/LiHV or 2-24V lead-acid batteries
• Adjustable charging current (0.1-10.0 A) per channel (max. 100 W total with mains power, max. 2 x 100 W with car battery or powerful stabilized power supply)
• When mains power is connected, channels A and B can be allocated the available power (max. 100 W total) in a ratio of 100:0, 50:50, 0:100
• Finish charging with delta-peak automation for NiCd and NiMH batteries
• Lithium-acid and lead-acid batteries are charged using the "constant current/constant voltage" method
• Adjustable delta-peak detection sensitivity for NiCd and NiMH batteries
• Adjustable charging end voltage for lithium batteries
• The charging mode allows lithium batteries to be charged with or without a balancer.
• With mains power, the charger can also be used as a 17.5V/max 100W stabilized DC power source.
• Easy firmware update via micro USB port

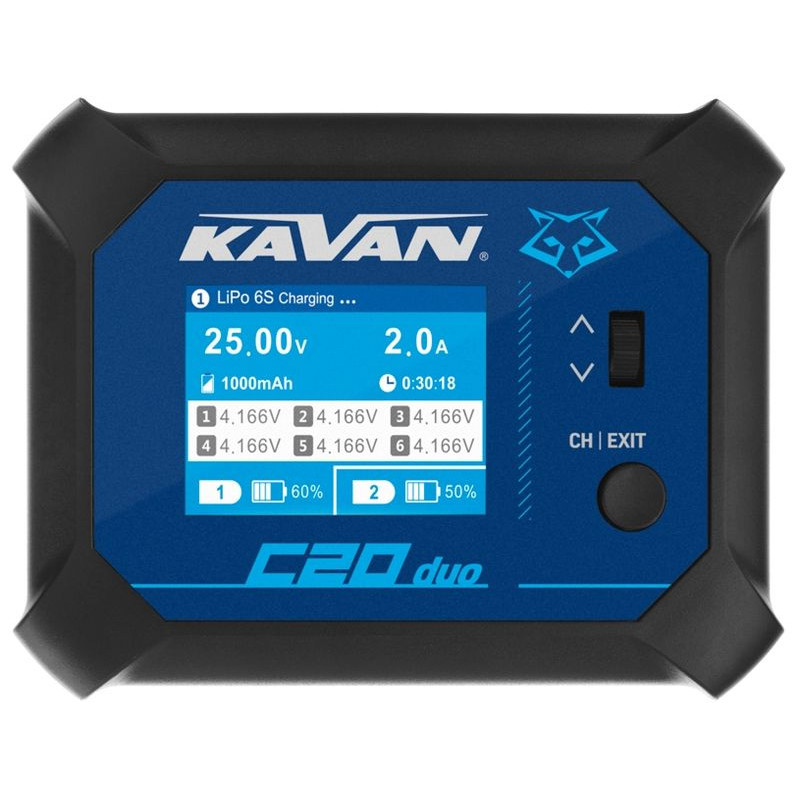

• Backlit color LCD display with simple and clear menu and parameter display during charging
• Programming knob/button and button for easy and clear charger configuration and control, multilingual menu (including English)
• Various warning messages contribute to safe operation - incorrect input voltage, incorrect wiring, unsuitable battery or battery condition, incorrect output polarity, etc.
• Forced cooling fan.
• Compact plastic housing, small size

The charger is equipped with XT60 output sockets in both channels and universal sockets for JST-XH service connectors, which allows direct connection of battery cables and JST-XH service connectors from 2-6S kits - for kits with XT60 and JST-XH connectors, you can completely dispense with charging cables and adapters. Standard Sky RC adapters can be used to connect service connectors from other systems.

Instructions.

For more information and photos, visit the manufacturer's website : TU

*Follow the instruction manual that comes with the product.
