iSDT K2 ZIP CHARGER

The ISDT K2 ZIP 2x500W high-performance dual-channel charger is a smart charger with mains or car battery power and very simple and clear operation. K2 ZIP allows charging and discharging of popular cell types (NiCd, NiMH, LiPo, LiHV, ULiHV, Li-ion, LiFe, Pb), in addition, it has built-in eight-channel balancers that ensure safe charging of lithium batteries. The charger is equipped with a color LCD display and programming buttons, which will provide you with a convenient and very clear way to set parameters, control and monitor the charging/discharging process.

In addition to its small size with high performance and intuitive operation, the following are particularly noteworthy:

• a program for new types of "high-voltage" LiHV lithium batteries with a voltage at the charging terminals of up to 4.35 V and ULiHV and with a voltage at the terminals of 3.45 V
• powerful balancer with a current of up to 1.5 A
• possibility of synchronous operation of both channels for charging two identical batteries or parallel charging of one battery with power up to 800 W
• adjustable voltage at the charging and discharging terminals of lithium batteries (allows for gentler charging, which is liked by aviators, or on the contrary, brutal overcharging, which is loved by "automotive enthusiasts")
• adjustable final charging voltage for lead-acid batteries (1.90-2.45 V; allows charging all types of lead-acid batteries)

Overview of basic functions and parameters

• Mains power supply 100-240 V/50-60 Hz
• Power supply 10-30 V DC (socket XT60) - for full use of the charger's capabilities, the supply voltage should be at least 24 V)
• For charging and discharging 1 - 18 NiCd/NiMH cells, 1 - 8 Li-ion/Li-poly/Li-Fe cells, 1 - 7 LiHV/ULiHV cells or 2-28 V lead-acid batteries
• Adjustable charging current (0.2 A - 20.0 A) per channel (max. 200 W with mains power, max. 500 W with car battery or strong stabilized mains power)
• Adjustable discharge current of 0.2 A - 1.5 A in each channel
• Max. charging power 1x 800W in parallel charging mode
• Max. discharge power 2x 15 W, max. 1x 60W in parallel discharge mode
• Charge termination by automatic delta-peak for NiCd and NiMH batteries
• Lithium and Pb batteries are charged using the "constant current/constant voltage" method.
• Adjustable delta peak detection sensitivity for NiCd and NiMH batteries
• Adjustable terminal voltage for charging and discharging lithium and lead-acid batteries
• Three lithium battery modes - charge, discharge and charge/discharge during storage; all with or without balancer. And then there's a decommissioning mode that allows you to safely discharge a used battery before recycling it
• CH1 and CH2 channels can operate as a stabilized source with adjustable voltage of 2-30 V and current of 1.0-5.0 A
• Easy firmware update via USB-C port; port can be switched to function as a 5 V/2 A smartphone power/charging socket
• Second USB-C PD power/charging port (max. 65 W)

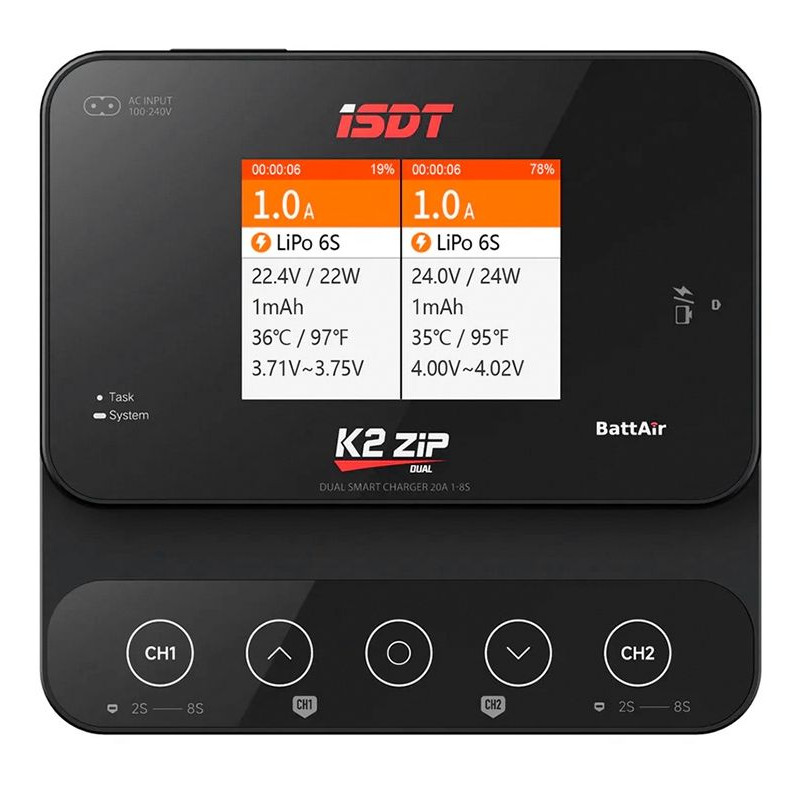

• Backlit, color, tiltable LCD display with simple and clear menus and parameter display during charging/discharging
• Sensor programming buttons for easy and clear charger setup and control
• A number of warning messages contribute to safe operation - incorrect input voltage, incorrect connection, unsuitable battery or battery condition, etc.
• Fan for forced cooling.

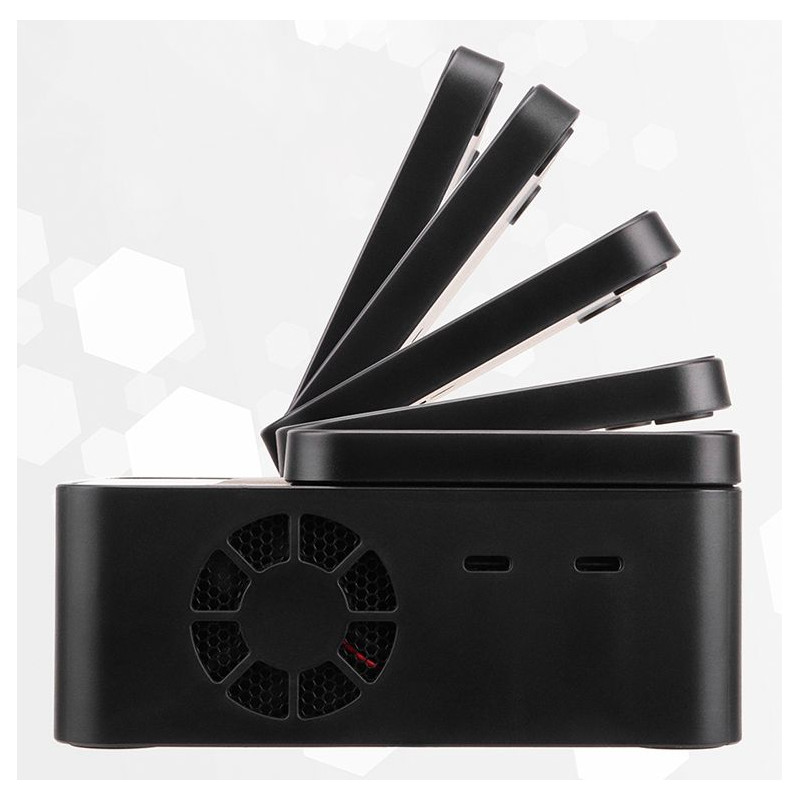

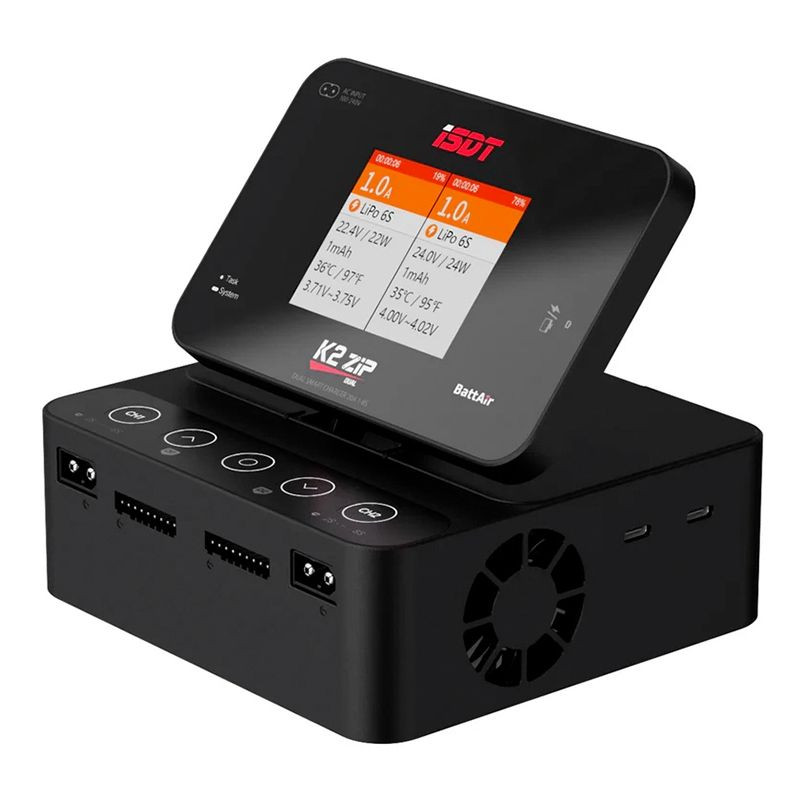

• Compact plastic box, small size, tilting LCD display

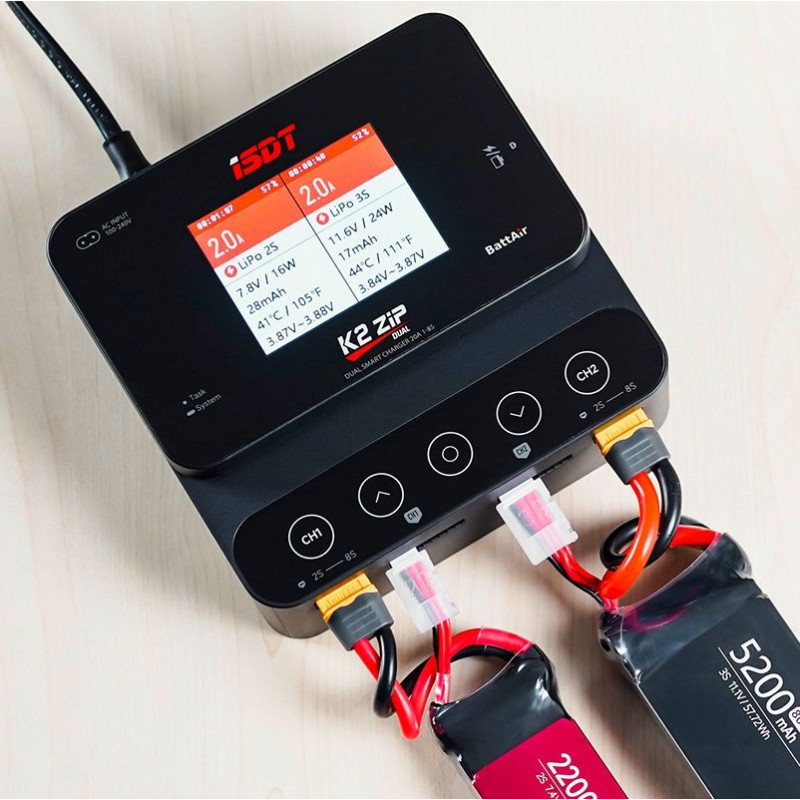

The charger is equipped with XT60 output sockets on both channels and JST-XH universal service connector sockets for direct connection of battery power cables and JST-XH service connectors of 2-8S kits - when using kits with XT60 and JST-XH connectors, you can do without charging cables and adapters. Standard Sky RC or RC System adapters can be used to connect the service connectors of other systems.

Specifications:

• Input voltage (car battery - DC) [V]: 10 - 30
• Input voltage (mains - AC) [V]: 230
• Charging current [A]: 0,2 - 20
• Charging power (mains supply) [W]: 200
• Charging power (DC car battery supply) [W]: 500
• Discharge current [A]: 0,2 - 1,5
• Discharge power [W]: 15
• Number of channels: 2
• Number of NiCd / NiMhcells : 1 - 18
• Number of Li-Po / Li-Ion / Li-Fe / Li-HV cells: 1 - 8

• Number of Pb cells: 1 - 14
• Balancer: YES
• Length [mm]: 133
• Width [mm]: 126
• Height [mm]: 57,7
• Weight [g]: 776

*Follow the instruction manual included with the product.
