iSDT Q6 Retro Charger

€61.90
13-1147
iSDT
In stock

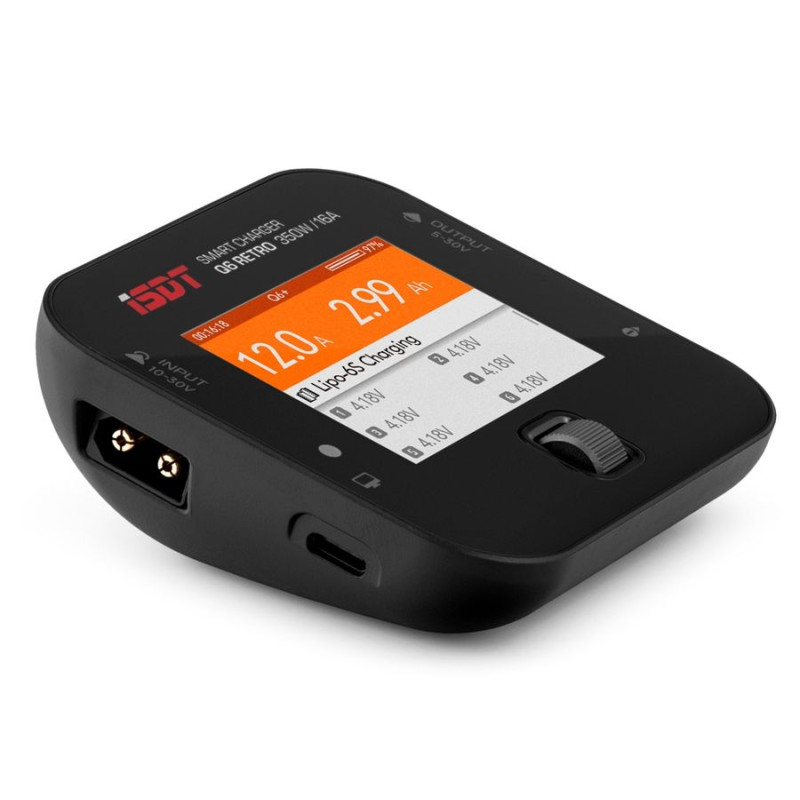

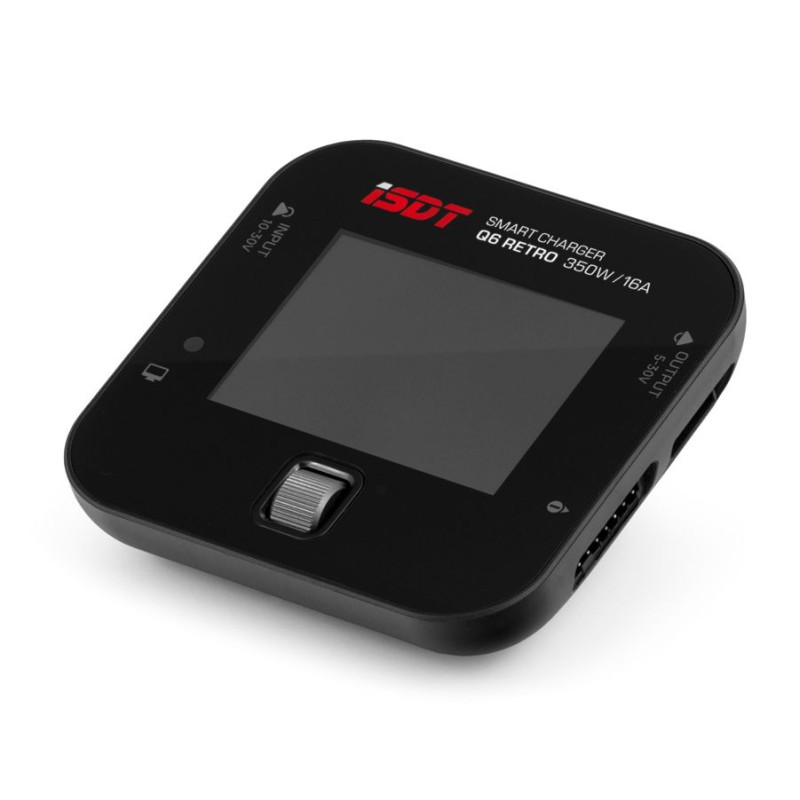

The ISDT Q6 Retro 350W Miniature Charger is a smart charger with power supply from a car battery or stabilized grid, and very simple and clear operation. Q6 Retro allows charging and discharging of popular cell types (NiCd, NiMH, LiPo, LiHV, ULiHV, Li-ion, LiFe, Pb), in addition, it is equipped with a built-in six-channel balancer to ensure safe charging of lithium batteries. The charger is equipped with a color LCD display and a programming wheel/button, which will provide you with a convenient and very clear way to set parameters, control and monitor the charging/discharging process.

In addition to its miniature size with high performance and intuitive operation, the following are particularly noteworthy:

  • a program for new types of "high-voltage" LiHV lithium batteries with a voltage at the charging terminal of up to 4.35 V and ULiHV with a voltage at the terminal of 4.45 V
  • adjustable voltage at the charging and discharging terminals of lithium batteries (allows gentler charging, which is liked by aviators, or, on the contrary, brutal overcharging, which is loved by "automotive enthusiasts")
  • adjustable final charging voltage for lead-acid batteries (2.00-2.45 V; allows charging all types of lead-acid batteries)
  • powerful balancer with a current of up to 1.5 A
  • ability to communicate and start charging/discharging without configuring the charger in cooperation with iSDT Smart modules for batteries (they store battery data and set charging parameters using the BattAir app) connected to the charger; the charger can work independently with a battery with a programmed Smart module or under the "supervision" of a smartphone with the BattAir and ISD Link apps (Android and iOS)

Overview of basic functions and parameters

  • Power supply 10-30 V DC (XT60 socket) (to fully utilize the power of the charger, the supply voltage should be at least 24 V)
  • For charging and discharging 1 - 16 NiCd/NiMH cells, 1 - 6 Li-ion/Li-poly/Li-Fe/LiHV/ULiHV cells or 2-24 V lead-acid batteries
  • Adjustable charging current 0.1 A - 16.0 A (max. 350 W)
  • Adjustable discharge current 0.1 A - 1.0 A (max. 10 W)
  • Charge termination by automatic delta-peak for NiCd and NiMH batteries
  • Lithium and Pb batteries are charged using the "constant current/constant voltage" method.
  • Adjustable delta peak detection sensitivity for NiCd and NiMH batteries
  • Adjustable terminal voltage for charging and discharging lithium and lead-acid batteries
  • Three lithium battery modes - charge, discharge and charge/discharge during storage; all with or without balancer. And then there's the decommissioning mode that allows you to safely discharge a used battery before recycling it
  • The charger can operate as a stabilized source with adjustable voltage of 5-30 V and current of 0.5-10.0 A
  • Easy firmware update via USB-C port and ISD Go PC tool

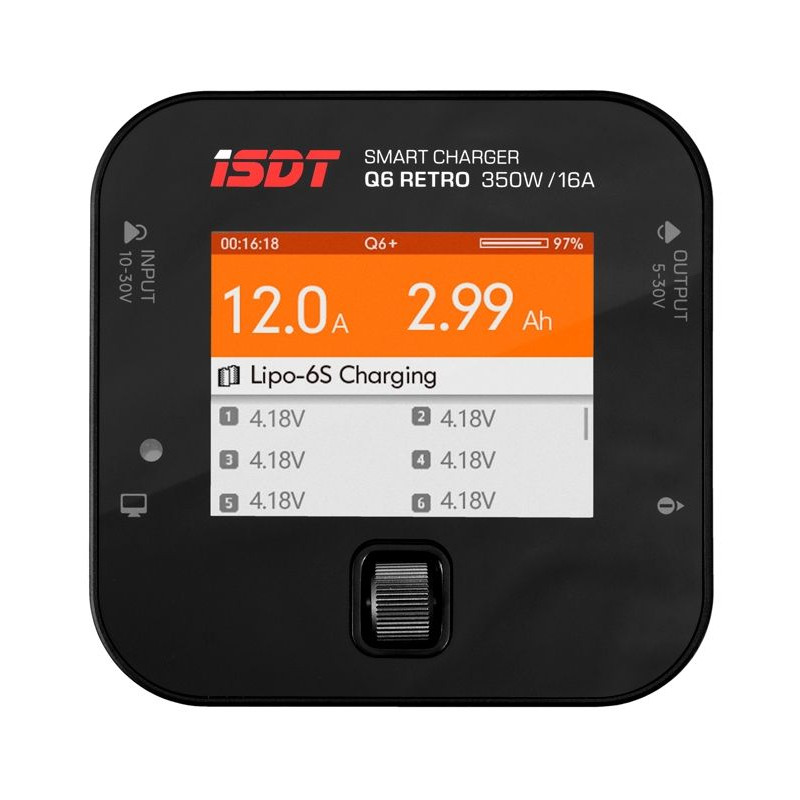

  • Backlit color LCD display with simple and clear menus and parameter display while charging/discharging
  • Programming knob/button for easy and clear charger setup and control
  • A number of warning messages contribute to safe operation - incorrect input voltage, incorrect connection, unsuitable battery or battery condition, wrong polarity on output, etc.
  • Fan for forced cooling.
  • Compact plastic box, miniature size

The charger is equipped with an XT60 output socket and a universal socket for JST-XH service connectors, allowing direct connection of battery power cables and JST-XH service connectors of 2-6S kits - when using kits with XT60 and JST-XH connectors, you can do without charging cables and adapters. Standard Sky RC or RC System adapters can be used to connect the service connectors of other systems.

Specifications:

  • Input voltage (car battery - DC) [V]: 10 - 30
  • Charging current [A]: 0,1 - 16
  • Charging power [W]: 350
  • Discharge current [A]: 0,1 - 1
  • Discharge power [W]: 10
  • Number of channels: 1
  • NiCd [number of cells]: 1 - 16
  • NiMH [number of cells]: 1 - 16
  • Li-Po [number of cells]: 1 - 6
  • Li-Ion [number of cells]: 1 - 6
  • Li-Fe [number of cells]: 1 - 6
  • Li-HV [number of cells]: 1 - 6
  • Pb [number of cells]: 1 - 12
  • Balancer: Yes
  • Balancer current: 1.5 A
  • Length [mm]: 80
  • Width [mm]: 80
  • Height [mm]: 33,5
  • Weight [g]: 119

*Follow the instruction manual included with the product.
