KAVAN CHARGER C14+ (KAV34.1014) AC/DC

The KAVAN C14+ 80W is designed to provide everything you need for charging "under one roof," including AC power and simple operation. The KAVAN C14+ is capable of charging and discharging popular cell types (NiCd, NiMH, LiPo, LiHV, Li-ion, LiFe, Pb), in addition, it comes with a built-in six-channel balancer that provides very safe and convenient charging of lithium batteries.

In addition to its higher performance, it differs from the usual 50W chargers with a really smart software that enables functions that were typical of "machines" in much higher price categories:

• setting the final charge and discharge voltages for lithium batteries (allowing gentler charging, which aviators like, or on the contrary, brutal overcharging, which "automotive enthusiasts" love) and lead-acid batteries
• measurement of total voltage and voltage of individual cells (for lithium batteries) even outside the charging/discharging process
• measurement of the internal resistance of individual cells (for lithium batteries)
• current source mode with adjustable voltage limitation (max. 6 A/80 W)
• Intelligent battery charging mode (lithium batteries with built-in safety electronics

Overview of basic functions and parameters

• Input supply voltage 11 - 18 V DC
• Mains power supply 100-240 V/50-60 Hz
• For charging and discharging 1 - 15 NiCd/NiMH cells, 1 - 6 Li-ion/LiPo/LiFe cells or 2 - 20 V lead acid batteries
• Adjustable charging current (0.1 A - 6.0 A)
• Adjustable discharge current (0.1 A - 2.0 A)
• Max. power for charging 80 W, for discharging 10 W
• Charge termination by automatic delta-peak for NiCd and NiMH batteries
• Lithium and Pb batteries are charged using the "constant current/constant voltage" method.
• Adjustable delta peak detection sensitivity for NiCd and NiMH batteries
• Adjustable terminal voltage for charging and discharging lithium and lead-acid batteries
• Repeated cyclic charging/discharging or discharging/charging of NiCd and NiMH batteries, up to 5 cycles
• Four charging modes for lithium batteries - normal charging, fast charging, balancer charging and storage charging/discharging
• Termination of charging when the set time, delivered charge or temperature limit is exceeded.
• Memory for 20 charge/discharge programs.
• Measurement of total set and individual cell voltages (for lithium batteries)
• Measurement of total internal resistance of individual cells (for lithium batteries)

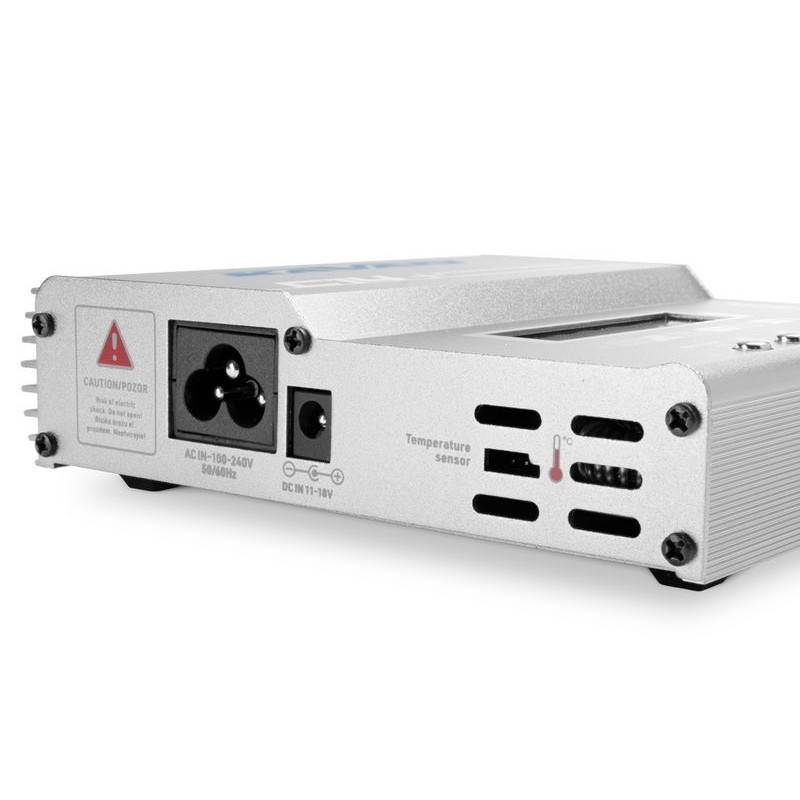

• Temperature sensor socket
• Autonomous balancer mode for lithium batteries
• Current source mode with adjustable voltage limitation for powering other devices - max. 6 A/80 W, max. voltage 27 V
• Intelligent battery charging mode (lithium batteries with built-in protection electronics) with adjustable charging time, charging current and maximum battery voltage

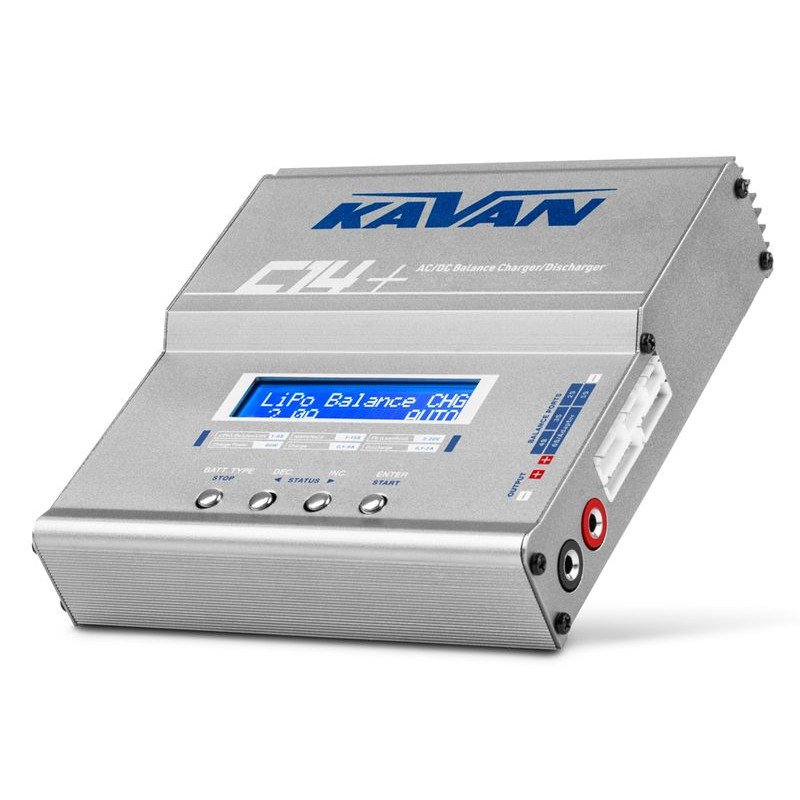

• Two-line backlit LCD display with simple and clear menu and parameter display during charging/discharging
• A series of warning text messages contribute to safe operation - incorrect input voltage, incorrect connection, unsuitable battery or battery condition, incorrect output polarity
• Protection against reverse polarity and output short circuit.
• Compact aluminum box, small size
• Built-in power supply.

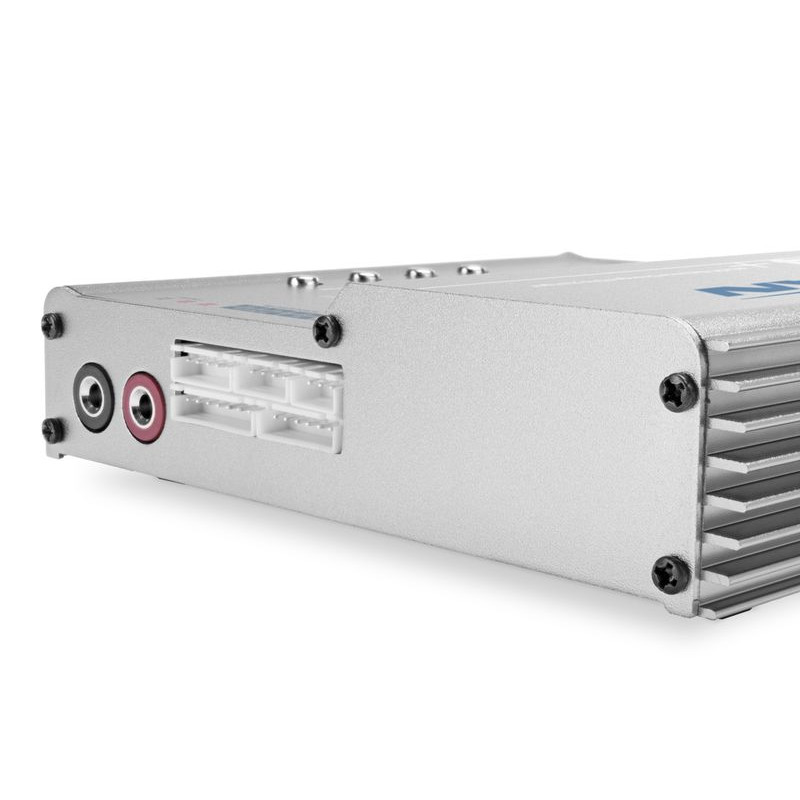

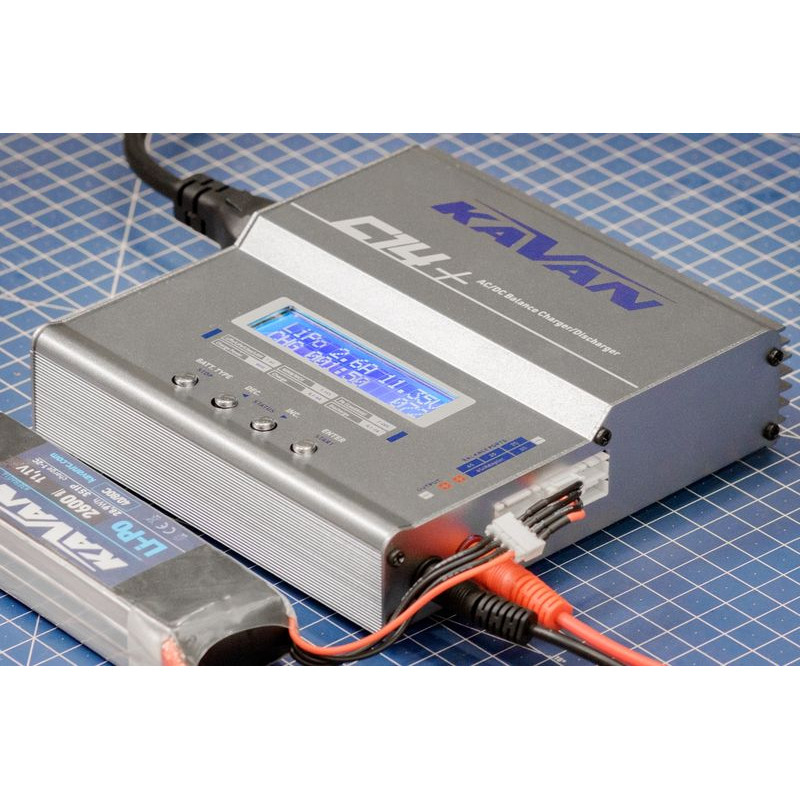

If you also connect a lithium charging kit through the service connector, you have the ability to monitor the voltage on individual cells throughout charging or discharging, and the built-in balancer equalizes the voltages on individual cells. the charger is equipped with sockets for JST-XH service connectors, and you can connect sets of other systems using adapters, which are sold separately.

You can buy a temperature sensor that will measure the temperature of charged/discharged batteries (available in our store).

Note: The charger for charging lead-acid batteries allows you to set the final voltage at 1.50-2.50 V/cell - for this reason it is suitable (if set correctly!) for charging gas-tight gel batteries, which must not be charged to above 2.30 V/cell, as well as classic lead-acid batteries (car batteries) and reverse-valve gel batteries.

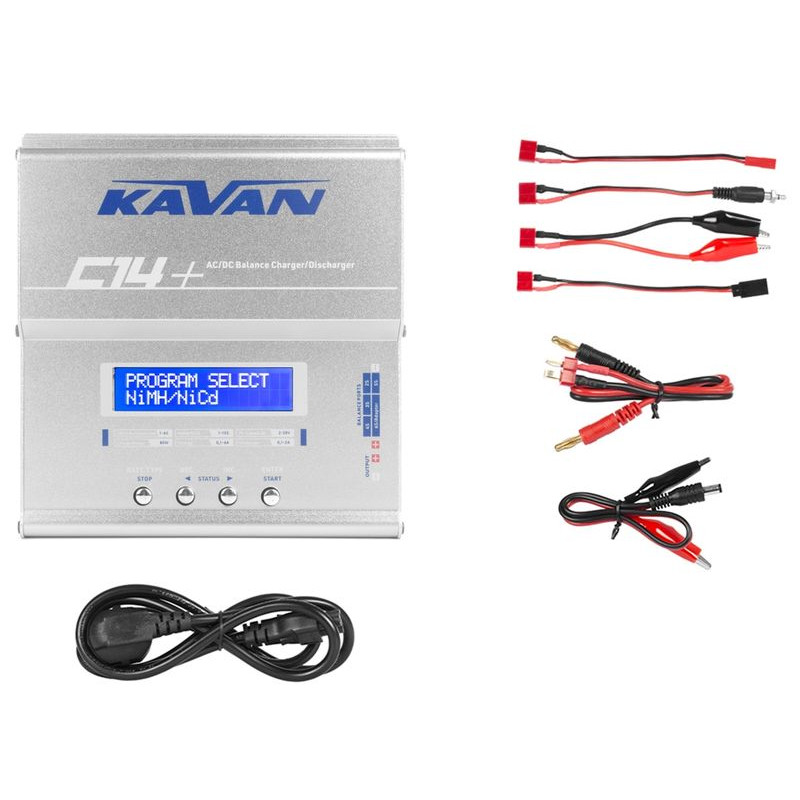

The charger kit includes: charger KAVAN C14+, mains cable, 12 V power cable with crocodiles, Dean-T charging cable with adapters for JST-BEC, JR/Futaba, with crocodiles and for compact glow plugs, instructions.

Specifications:

• Input voltage: (car battery - DC) [V] 230
• Charging current [A]: 0,1 - 6
• Charging power [W]: 80
• Discharge current [A]: 0,1 - 2
• Discharge power [W]: 10
• Number of channels: 1
• Number of NiCdcells : 1 - 15
• Number of NiMH cells: 1 - 15
• Number of Li-Po cells: 1 - 6
• Number of Li-HV cells: 1 - 6
• Number of Li-Ion cells: 1 - 6
• Number of Li-Fe cells: 1 - 6
• Balancer [mA]: 400
• Length [mm]: 144
• Width [mm]: 137
• Height [mm]: 40
• Weight [g]: 493

The store offers a dedicated thermometer for the C14+ charger.

*Follow the instruction manual included with the product.
