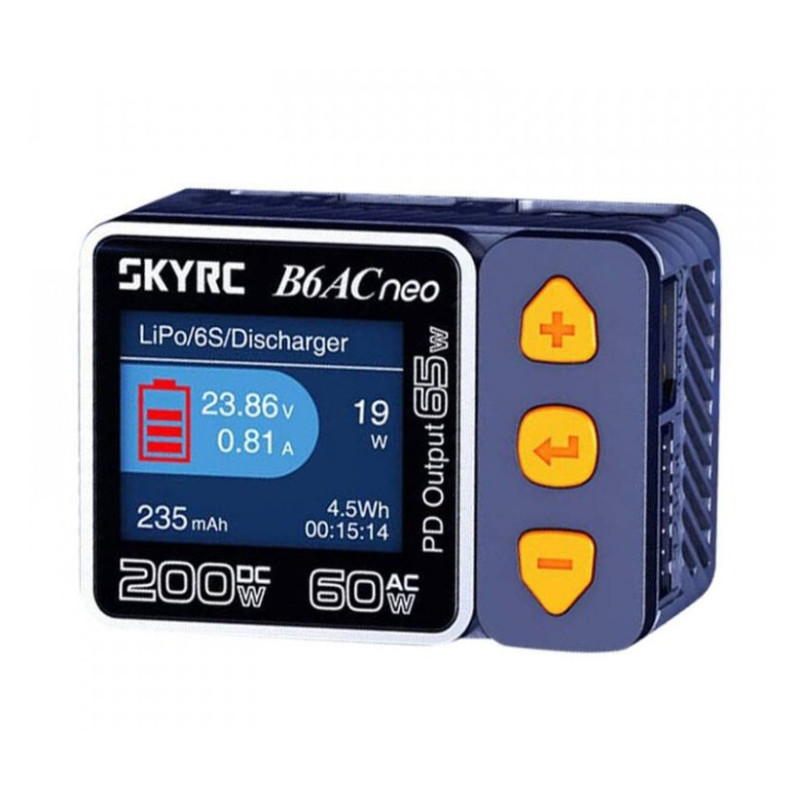

SkyRC RC B6AC neo charger (10200)

The SKY RC B6ACneo 200W mini charger is designed to provide everything you need for high-current charging, with simple operation, in a "half palm" or "vest pocket" size. The B6neo is capable of charging and discharging popular cell types (NiCd, NiMH, Li-poly, Li-ion, Li-Fe, Li-HV, Pb), plus it has a built-in six-channel balancer which ensures very safe and comfortable charging of lithium batteries. It can also operate in stabilized power supply mode with adjustable output voltage in the range of 5-27 V and current of 1-10 A.

The intelligent software offers intuitive menus and is designed for practical users who buy a battery charger to charge batteries:

• a program for new types of "high-voltage" LiHV lithium batteries with a final charging voltage of up to 4.35 V
• setting the final charging and discharging voltages of lithium batteries (allows for gentler charging, which is liked by aviators, or on the contrary, brutal overcharging, which is loved by "car enthusiasts")
• charging programs for maintenance-free AGM lead batteries and charging lead batteries at low temperatures
• measurement of total voltage and voltage of individual cells (in the case of lithium batteries) even outside the charging/discharging period
• measurement of the internal resistance of the entire set and individual cells (for lithium batteries)

Overview of basic functions and parameters:

• Input supply voltage 10 - 30 V DC (to take full advantage of the charger's power, the power supply should provide at least 24 V) when powered by a battery or mains-stabilized source, or 12-20 V when powered by a USB source (PD3.0/QC)
• Mains power supply 100-240V / 50-60Hz
• For charging and discharging 1 - 15 NiCd/NiMH cells, 1 - 6 Li-ion/Li-poly/Li-Fe/LiHV cells or 6/12V lead-acid batteries with liquid electrolyte and maintenance-free AGM batteries
• Adjustable charging current 0.2 A - 10.0 A
• Adjustable discharge current (0.1 A - 2.0 A)
• Max. charging power 200 W when powered by mains or car battery or 80 W when powered by USB source (PD3.0/QC)
• Max. power to discharge 5 W
• Charge termination with automatic delta-peak for NiCd and NiMH batteries
• Lithium and lead batteries are charged using the "constant current/constant voltage" method
• Adjustable delta-peak detection sensitivity for NiCd and NiMH batteries
• Adjustable terminal voltage for charging and discharging lithium batteries
• Multiple cyclic charging/discharging or discharging/charging of NiCd and NiMH batteries, up to 5 cycles
• Three charging modes for lithium batteries - normal charging, balancing charging and storage charging/discharging
• Three charging modes for lead-acid batteries - for normal lead-acid "car batteries", for AGM lead-acid batteries (batteries with electrodes separated by a fiberglass separator saturated with electrolyte) and for charging lead-acid batteries at low temperatures ( -20°C to +5°C)
• Termination of charging after exceeding the set time or the supplied charge
• Measurement of the total voltage of the set and individual cells (for lithium batteries)
• Measurement of total internal resistance of the set and single cells (for lithium batteries)
• Backlit LCD display with simple and clear menu and parameter display during charging/discharging
• Safe operation is influenced by a series of warning text messages - incorrect input voltage, incorrect connection, inappropriate battery or battery condition, incorrect output polarity, etc
• Protection against reverse polarity and output short circuit
• Fan for forced cooling
• Compact plastic housing, miniature size !

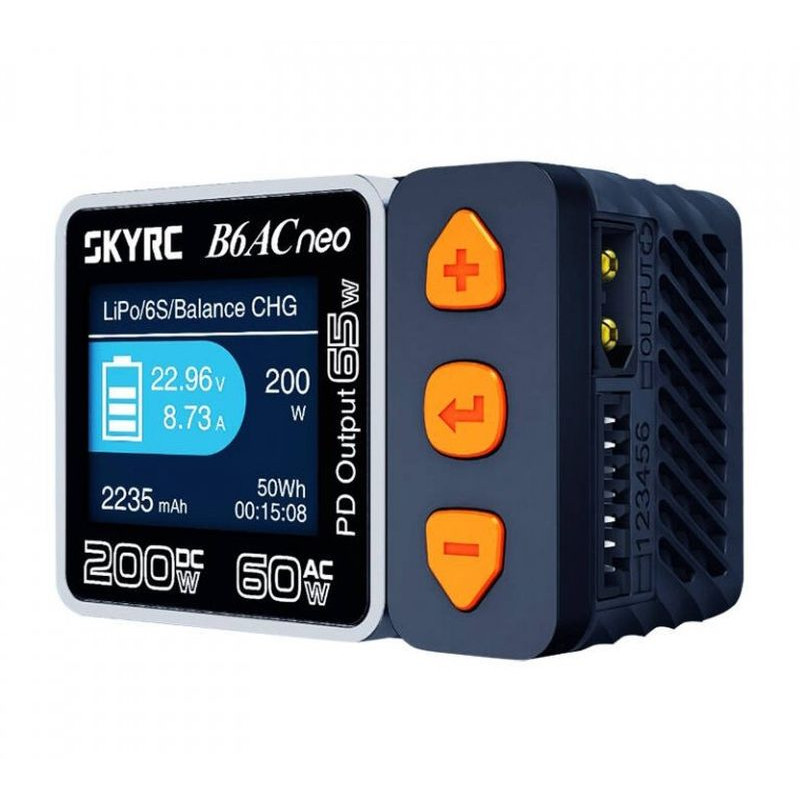

The charger is equipped with an XT60 output socket and a universal socket for JST-XH service connectors, allowing you to directly connect the battery power cables and JST-XH service connectors of 2-6S kits - if you use kits with XT60 and JST-XH connectors , you can do without charging cables and adapters. You can use standard Sky RC or RC System adapters to connect service connectors of other systems.

Note: When charging lead-acid batteries, the charger uses a final voltage of 2.40 volts/cell (or 2.46 volts/cell in the program for AGM batteries and in the program for cold charging) - therefore, it is suitable for charging classic lead-acid batteries (car batteries) and gel batteries with a reversing valve. It is not suitable for charging gas-tight gel batteries, which must not be charged with a voltage higher than 2.30 V/cell.

Technical data:

• Input voltage (car battery - DC) [V]: 10 - 30
• Mains power supply: 100-240V / 50-60Hz
• Charging current [A]: 0,2 - 10
• Discharge current [A]: 0,1 - 2
• Number of channels: 1
• NiCd [number of cells]: 1 - 15
• NiMH [number of cells]: 1 - 15
• Li-Po [number of cells]: 1 - 6
• Li-Ion [number of cells]: 1 - 6
• Li-Fe [number of cells]: 1 - 6
• Li-HV [number of cells]: 1 - 6
• Pb [number of cells]: 1-10
• Balancer: Yes
• Charging power [W]: 200 (DC power supply)
• Charging power [W]: 60 (AC power supply)
• Discharge power [W]: 5
• Length [mm]: 70
• Width [mm]: 50
• Height [mm]: 46
• Weight [g]: 150

For more information and photos, visit the manufacturer's website (tab above)

*Follow the instructions included with the product.
