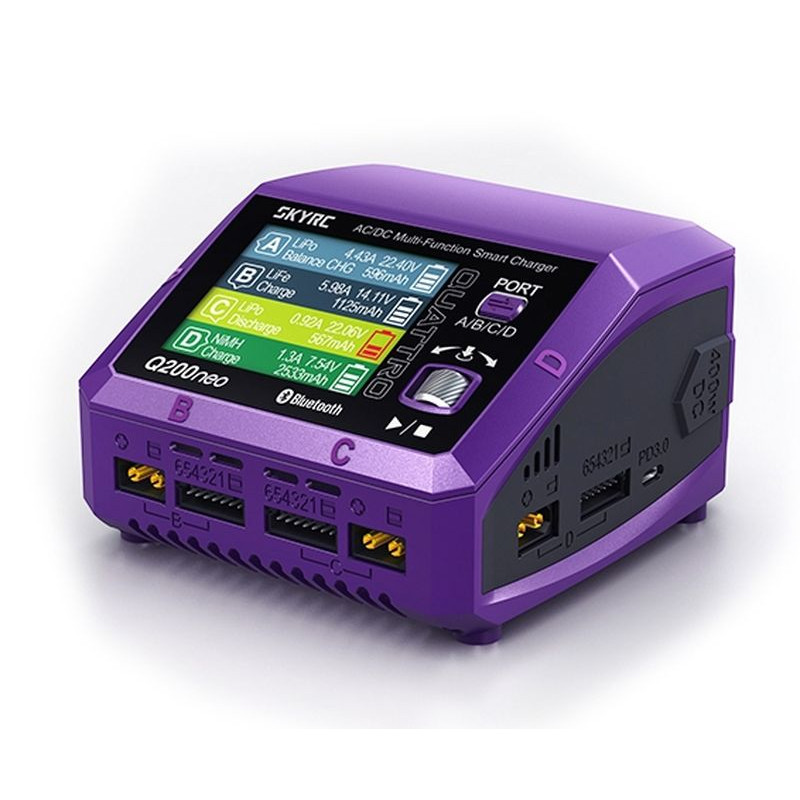

SkyRC Q200 NEO Charger / 4x100W (3SK10197)

The SKY RC Q200neo 400W four-channel charger is designed to provide everything needed to simultaneously charge four batteries with currents "under one roof", including mains power, with simple operation and the ability to communicate with the SkyCharger app. The Q200neo allows charging and discharging of popular cell types (NiCd, NiMH, Li-poly, Li-ion, Li-Fe, Li-HV, Pb), in addition, all channels are equipped with built-in six-channel balancers for convenient charging of lithium batteries.

Intelligent software allows you to control and monitor charging on a PC or on the SkyCharger app on a smartphone via Bluetooth :

• program for new types of "high-voltage" LiHV lithium batteries with a terminal voltage that allows charging up to 4.35V
• setting the end voltage for charging and discharging lithium batteries (allows for gentler charging, which is liked by pilots, or on the contrary, overcharging, which is preferred by "automotive enthusiasts" - max. 4.22 V for LiPo, 4.12 V for Li-ion, 3.67 V for LiFe, 4.37 V for LiHV with current software)
• programs for charging maintenance-free AGM lead acid batteries and charging lead acid batteries at low temperatures
• measurement of total voltage and voltage of individual cells (for lithium batteries) even beyond charging/discharging
• measurement of internal resistance of the whole set and individual cells (for lithium batteries)

Overview of basic functions and parameters:

• Input supply voltage 10 - 30 V DC (to fully utilize the power of the charger, the power supply should provide at least 24 V)
• Mains power supply 100-240 V/50-60 Hz
• For charging and discharging 2 - 15 NiCd/NiMH cells, 1 - 6 Li-ion/Li-poly/Li-Fe/LiHV cells or 6/12/24 V lead-acid batteries with liquid electrolyte and maintenance-free AGM
• Adjustable charging current 0.1 A - 10.0 A
• Adjustable discharge current (0.1 A - 2.0 A)

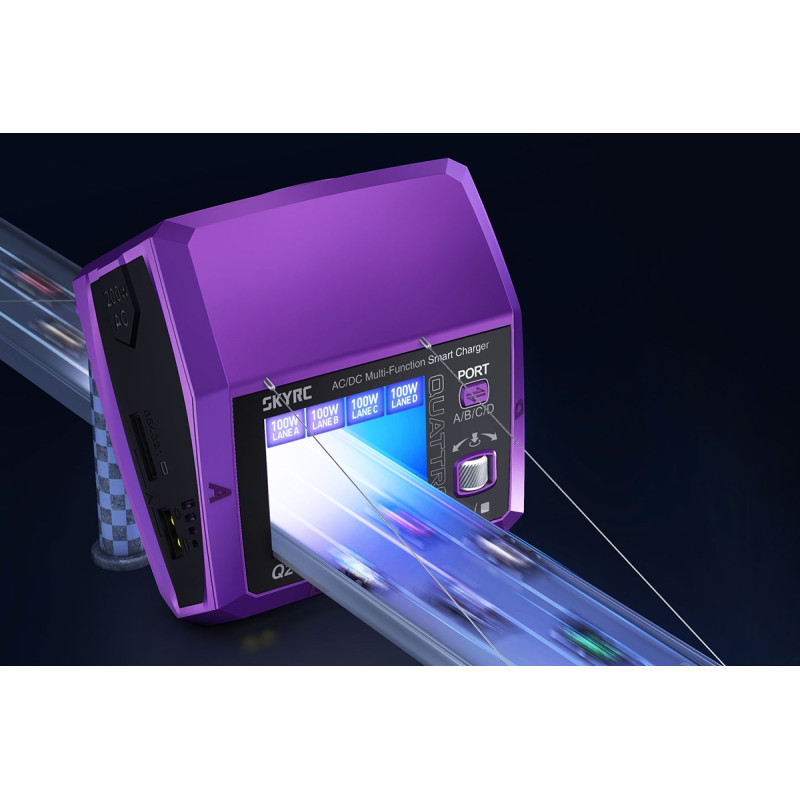

• Max. total charging power 200 W when powered by mains (2 channels max. 2x 100 W, 3 channels max. 3x 66 W, 4 channels max. 4x 50 W) or 4x 100 W when powered by a DC source
• Max. power to discharge 5 W
• Charge termination by automatic delta-peak for NiCd and NiMH batteries
• Lithium and Pb batteries are charged using the "constant current/constant voltage" method
• Adjustable delta peak detection sensitivity for NiCd and NiMH batteries
• Repeated cyclic charging/discharging or discharging/charging of NiCd and NiMH batteries, up to 3 cycles
• Three charging modes for lithium batteries - normal charging, balancing charging and storage charging/discharging
• Three charging modes for lead-acid batteries - for normal lead-acid "car batteries", for AGM lead-acid batteries (batteries with electrodes separated by a fiberglass separator impregnated with electrolyte), and for charging lead-acid batteries at low temperatures ( -20°C to +5°C)
• Termination of charging after exceeding the set time or the supplied charge
• Measurement of the total voltage of the set and individual cells (for lithium batteries)
• Measurement of the total internal resistance of the set and individual cells (for lithium batteries)
• Bluetooth 5.0 module for wireless communication with the SkyCharger app

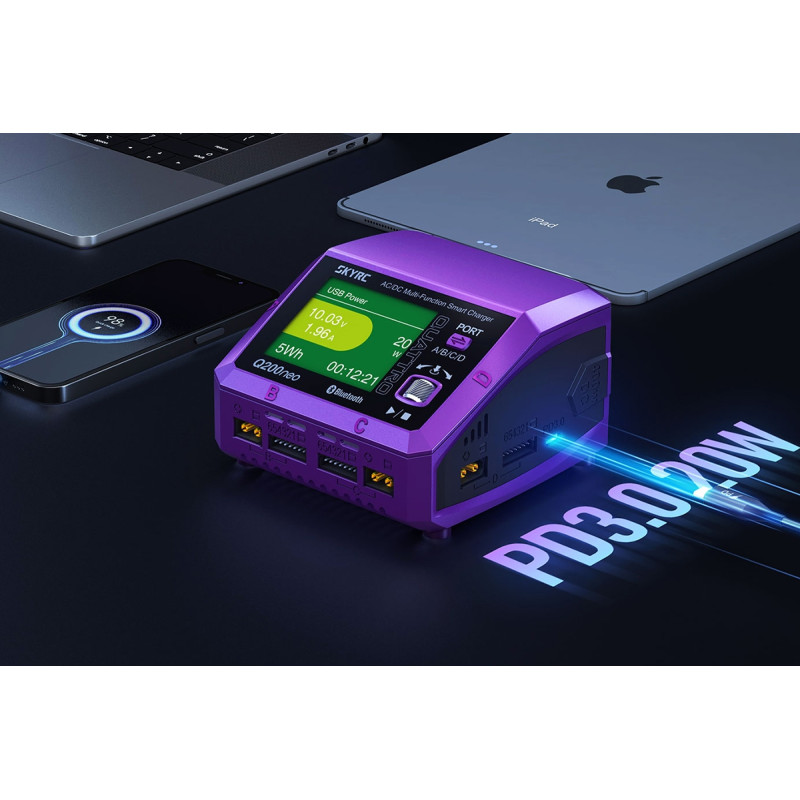

• USB-C port with optional functionality - for software updates and charger control and monitoring charging progress on a PC in Charge Master or as a power/charging source for mobile devices
• Backlit LCD display with simple and clear menus and parameter display during charging/discharging
• A number of warning text messages contribute to safe operation - incorrect input voltage, incorrect connection, unsuitable battery or battery condition, wrong output polarity, etc.
• Protection against reverse polarity and output short circuit
• Fan for forced cooling
• Compact plastic box, small size
• Built-in power supply

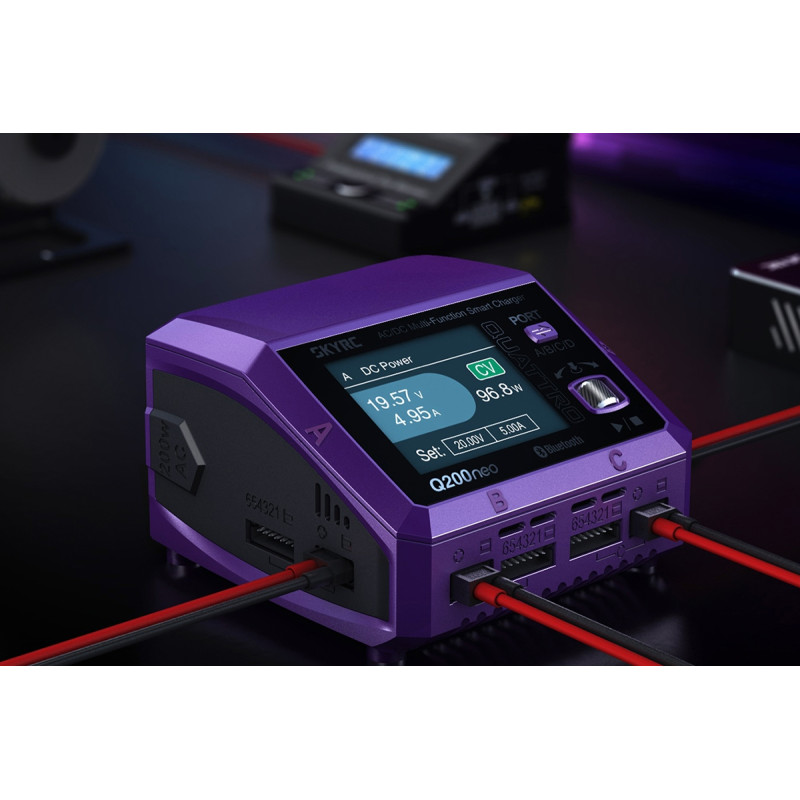

The charger is equipped with XT60 output sockets on all channels and universal sockets for JST-XH service connectors for direct connection of battery power cables and JST-XH service connectors of 2-6S kits - if you use kits with XT60 and JST-XH connectors, you can do without charging cables and adapters. Standard Sky RC or RC System adapters can be used to connect the service connectors of other systems.

Note: When charging lead-acid batteries, the charger uses a final voltage of 2.40 volts/cell (or 2.46 volts/cell in the program for AGM batteries and in the cold charging program) - for this reason, it is suitable for charging classic lead-acid (automotive) batteries and reversible valve gel batteries. It is not suitable for charging gas-tight gel batteries, which must not be charged with a voltage higher than 2.30 V/cell.

Technical data:

• Input voltage (car battery - DC) [V]: 11 - 30
• Input voltage (mains - AC) [V]: 100 - 240
• Charging current [A]: 0,1 - 10
• Discharge current [A]: 0,1 - 2
• Number of channels: 4
• NiCd [number of cells]: 2 - 15
• NiMH [number of cells]: 2 - 15
• Li-Po [number of cells]: 1 - 6
• Li-Ion [number of cells]: 1 - 6
• Li-Fe [number of cells]: 1 - 6
• Li-HV [number of cells]: 1 - 6
• Pb [number of cells] 1 - 10
• Stabilizer: Yes
• Charging power (external power supply) [W]: 100
• Charging power (mains/total power supply) [W]: 200
• Discharge power [W]: 5
• Balancer current [mA]: 800
• Output voltage (USB output - QC3.0/PD) [V]: 5 - 12
• Output current (USB output - QC3.0/PD) [A]: 1,5 - 3
• Length [mm]: 123
• Width [mm]: 119
• Height [mm]: 78
• Weight [g]: 680

*Follow the instructions included with the product.
