iSDT Q6 CHARGER

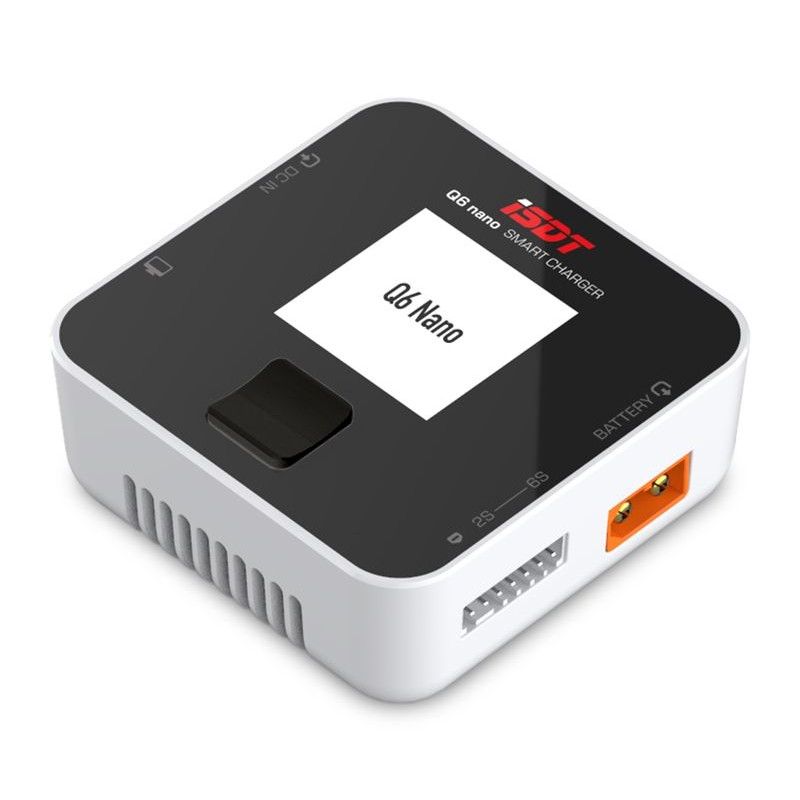

ISDT's Q6 Nano 200W mini charger is a smart charger with power from a car battery or a stabilized mains source, and very simple and clear operation. The Q6 Nano is capable of charging and discharging popular cell types (NiCd, NiMH, LiPo, LiHV, ULiHV, Li-ion, LiFe, Pb), plus it comes with a built-in six-channel balancer to ensure safe charging of lithium batteries. The charger is equipped with a color LCD display and a three-position programming button, which will ensure that you can conveniently and very clearly set parameters, control and monitor the charging/discharging process.

In addition to the miniature size with high performance and intuitive operation, the most noteworthy features are:

• program for new types of "high-voltage" LiHV lithium batteries with terminal voltage for charging up to 4.35 V and ULiHV with terminal voltage of 4.45 V
• adjustable terminal voltage for charging and discharging lithium batteries (allows gentler charging, which is liked by aviators, or on the contrary, brutal overcharging, which is loved by "car enthusiasts")
• adjustable final charging voltage for lead-acid batteries (2.00-2.45 V; allows charging of all types of lead-acid batteries)

Overview of basic functions and parameters:

• Power supply 10-30 V DC (XT60 socket)
• For charging and discharging 1 - 16 NiCd/NiMH cells, 1 - 6 Li-ion/Li-poly/Li-Fe/LiHV/ULiHV cells or 2-24 V lead-acid batteries
• Adjustable charging current 0.1 A - 8.0 A (max. 200 W) - to fully utilize the charger's power, the power source must be at least 24 V
• Adjustable discharge current 0.1 A - 1.0 A (max. 10 W)
• Termination of charging by automatic delta-peak for NiCd and NiMH batteries
• Lithium and lead batteries are charged using the "constant current/constant voltage" method
• Adjustable delta-peak detection sensitivity for NiCd and NiMH batteries
• Adjustable terminal voltage for charging and discharging lithium and lead-acid batteries
• Three modes for lithium batteries - charge, discharge and charge/discharge storage; all with or without balancer. And there's a liquidation discharge mode for safely discharging a used battery before sending it for recycling
• The charger can operate as a stabilized source with adjustable voltage of 2-30 V and current of 0.5-5.0 A
• Easy firmware update via micro USB port

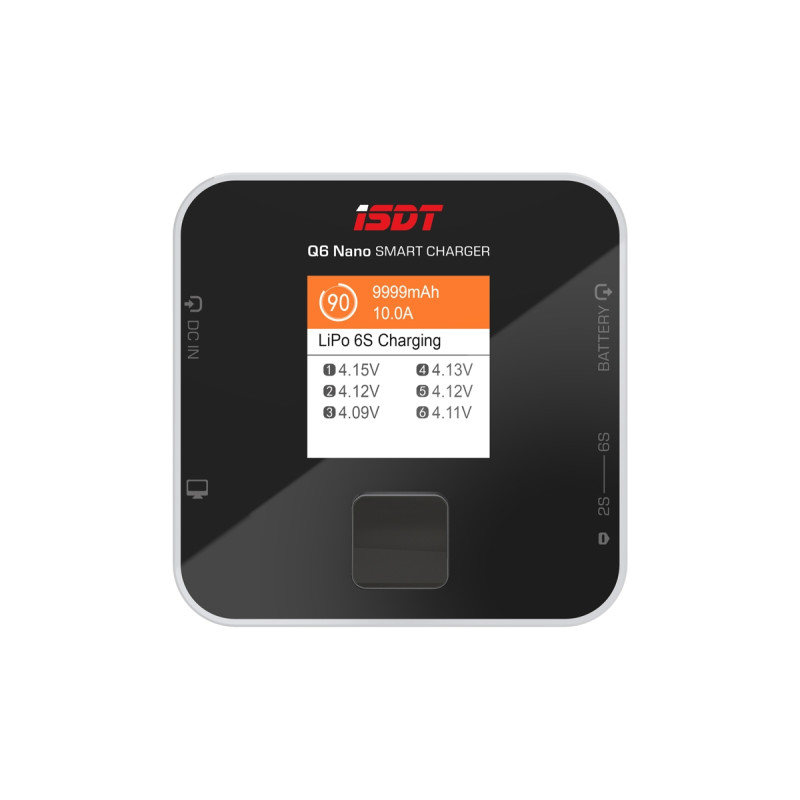

• Backlit color LCD display with simple and clear menus and parameter display during charging/discharging
• Three-way programming button for easy and clear charger setup and control
• Safe operation is influenced by a series of warning messages - wrong input voltage, wrong connection, wrong battery or battery condition, wrong polarity on output, etc.
• Fan for forced cooling
• Compact plastic box, miniature size

The charger is equipped with an XT60 output socket and a universal socket for JST-XH service connectors, allowing you to directly connect the battery cables and JST-XH service connectors of 2-6S kits - if you use kits with XT60 and JST-XH connectors , you can do without charging cables and adapters. You can use standard Sky RC or RC System adapters to connect service connectors of other systems.

Specifications:

• Input voltage (car battery - DC) [V]: 10 - 30
• Charging current [A]: 0,1 - 8
• Charging power [W]: 200
• Discharge current [A]: 0,1 - 1
• Discharge power [W]: 10
• Number of channels: 1
• NiCd [number of cells]: 1 - 16
• NiMH [number of cells]: 1 - 16
• Li-Po [number of cells]: 1 - 6
• Li-Ion [number of cells]: 1 - 6
• Li-Fe [number of cells]: 1 - 6
• Li-HV [number of cells]: 1 - 6
• Pb [art:] 1 - 12
• Balancer: Yes
• Balancer current [mA]: 500
• Length [mm]: 72
• Width [mm]: 72
• Height [mm]: 32
• Weight [g]: 120

More information and photos on the manufacturer's website.

*Follow the instructions included with the product.
