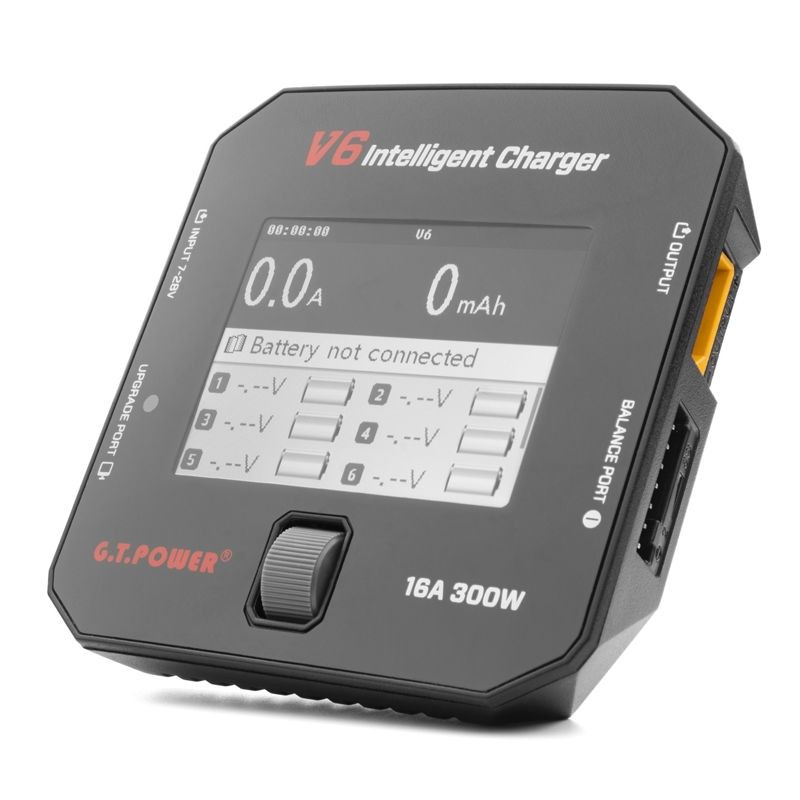

G.T.POWER mini V6-300W charger

The GT POWER V6 300W charger is designed to offer a smart pocket charger with great performance and very simple and clear operation. The V6 is capable of charging and discharging popular cell types (NiCd, NiMH, LiPo, LiHV, Li-ion, LiFe, Pb), plus it has a built-in six-channel balancer for very safe and convenient charging of lithium batteries.

In addition to its extremely compact, palm-sized design and intuitive one-knob/button operation, the most noteworthy features include:

adjustable voltage at the terminals for charging and discharging lithium batteries (allows for gentler charging, which is favored by aviators, or on the contrary, brutal overcharging, which is loved by "car enthusiasts")
adjustable terminal voltage for charging and discharging lead-acid batteries - the V6 is thus one of the few charger models today that allows safe charging of both gas-tight gel batteries and ordinary car batteries
measurement of total voltage and voltage of individual cells (for lithium batteries)
measurement of the internal resistance of individual cells during charging (for lithium batteries)
micro USB port for firmware updates
Overview of basic functions and parameters

Input supply voltage 7 - 28 V DC
For charging and discharging 1 - 16 NiCd/NiMH cells, 1 - 6 Li-ion/LiPo/LiFe/LiHV cells or 2 - 24 V lead acid batteries
Adjustable charging current (0.1 A - 16.0 A)
Adjustable discharge current (0.1 A - 3.0 A)
Max. power for charging 300 W (to fully utilize the charger's power, the power source must be at least 24 V), for discharging 5 W
Charging termination by automatic delta-peak for NiCd and NiMH batteries
Lithium and lead batteries are charged using the "constant current/constant voltage" method.
Adjustable delta-peak detection sensitivity for NiCd and NiMH batteries
Adjustable terminal voltage for charging and discharging lithium and lead-acid batteries
Four charging modes for lithium batteries - fast charging, normal charging, balancing charging and storage charging/discharging
Measurement of the total voltage of the set and individual cells (for lithium batteries)
Measurement of total internal resistance of individual cells during charging (for lithium batteries)
Micro USB port for charger firmware updates
Color backlit LCD display with simple and clear menu and parameter display during charging/discharging
Safe operation is influenced by a series of warning text messages - incorrect input voltage, incorrect connection, inappropriate battery or battery condition, incorrect output polarity, etc.
Protection against reverse polarity and output short circuit.
Charger power and output sockets for XT60 connectors.
Compact plastic box, small size
Built-in fan for forced cooling
If you additionally connect a set of lithium batteries through the service connector, you have the ability to monitor the voltage on individual cells throughout charging or discharging, and the built-in balancer balances the voltage on individual cells. The charger is equipped with a socket for JST-XH service connectors, and you can connect sets of other systems using adapters, which are sold separately.

Note: When charging lead-acid batteries, the charger allows you to set the final voltage in the range of 2.00-2.40 V/cell - this makes it suitable for charging gas-tight gel batteries, which must not be charged to a voltage higher than 2.30 V/cell, as well as for charging classic lead-acid (car) batteries and gel batteries with a reversing valve.

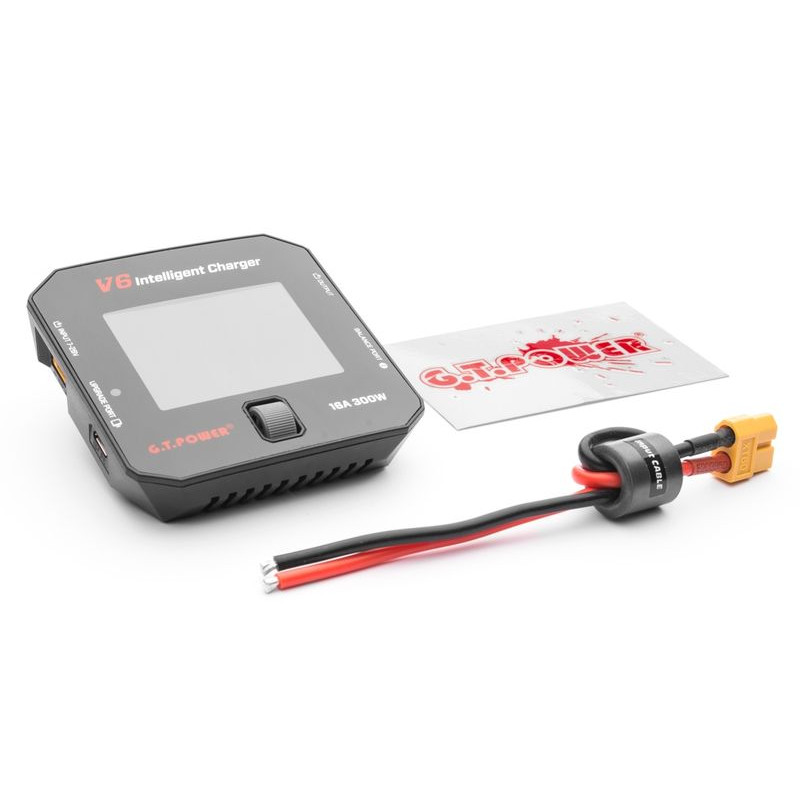

The charger kit includes: charger V6, 12V power cable with XT60 connector.

Technical data:

• Input voltage (car battery - DC) [V]: 7 - 28
• Charging current [A]: 0,1 - 16
• Charging power [W]: 300
• Discharge current [A]: 0,1 - 3
• Discharge power [W]: 5
• Number of channels: 1
• NiCd [number of cells]: 1 - 16
• NiMH [number of cells]: 1 - 16
• Li-Po [number of cells]: 1 - 6
• Li-Ion [number of cells]: 1 - 6
• Li-Fe [number of cells]: 1 - 6
• Li-HV [number of cells]: 1 - 6
• Pb [number of cells]: 1 - 12
• Balancer current [A]: 1
• Length [mm]: 80
• Width [mm]: 80
• Height [mm]: 32
• Weight [g]: 120

*Follow the enclosed instruction manual.
