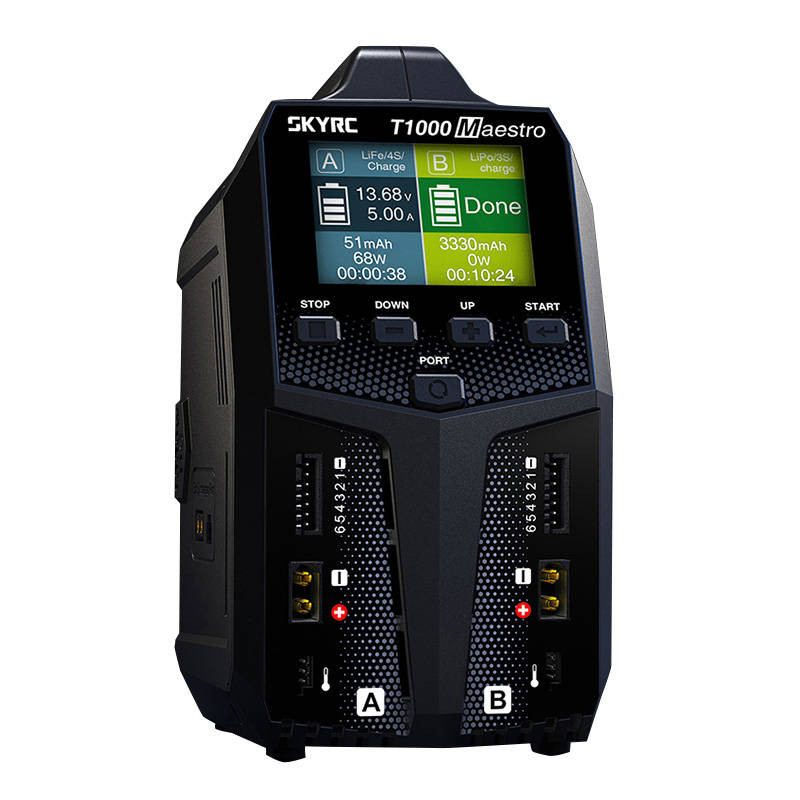

SkyRC Charger T1000 / MAESTRO (100182-01)

SkyRC T1000 Maestro charger
SkyRC T1000 Maestro is a new, incredibly powerful RC model charger that stands out with up to 450 watts (AC) or even 1000 watts (DC). It uses an advanced Arm Cortex-M4 core and is equipped with a color display that will provide you with the most important information regarding its operation. It allows you to use 2 ports at the same time, and you will have no problem transporting it. Special Charger Master software is also available to provide even more capabilities.

Reliable performance
Push the limits with the SkyRC T1000 charger and get more options for your next RC race. The product supports advanced DSP technology and has a state-of-the-art Arm Cortex-M4 core, which also uses a coprocessor (FPU). This allows it to deliver incredible speed, performance and reliability! Bet on proven solutions and choose a charger that works in almost every situation.

Even faster charging
Enjoy even faster charging. The charger is equipped with 2 ports that will allow you to charge 2 batteries simultaneously in a short time. You can also choose between AC and DC input. In AC mode, the charging power reaches 450 watts, and in DC mode it is up to 1000 watts! This will charge your batteries up to 9 times faster (in AC mode) or up to 20 times faster (in DC mode) than with standard chargers.

Intelligent power distribution
When you use only one port, the charger will direct all its power to it and provide up to 20 amps. When using both ports, the charging current parameters will be dynamically and intelligently divided between each port. So you can enjoy optimal performance in most situations! What's more, when one port finishes working, the other will start charging at full capacity. When using 2 outlets simultaneously, the total current is up to 35 A.

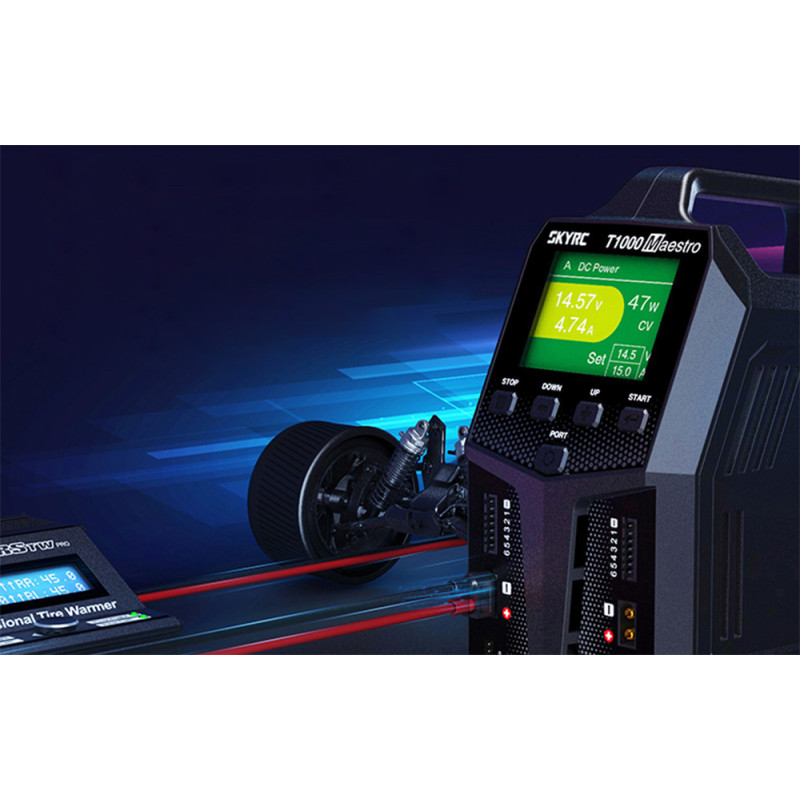

Digital power supply
The T1000 will not only perform well as a charger, but can also act as a digital power supply. All it takes is a few clicks on its menu! The product offers a voltage of 5-27 V with 0.1 V increments and an adjustable current of 1-15 A. It is also equipped with protection against short circuit, overload and reverse polarity. Thus, it provides unparalleled performance and safety!

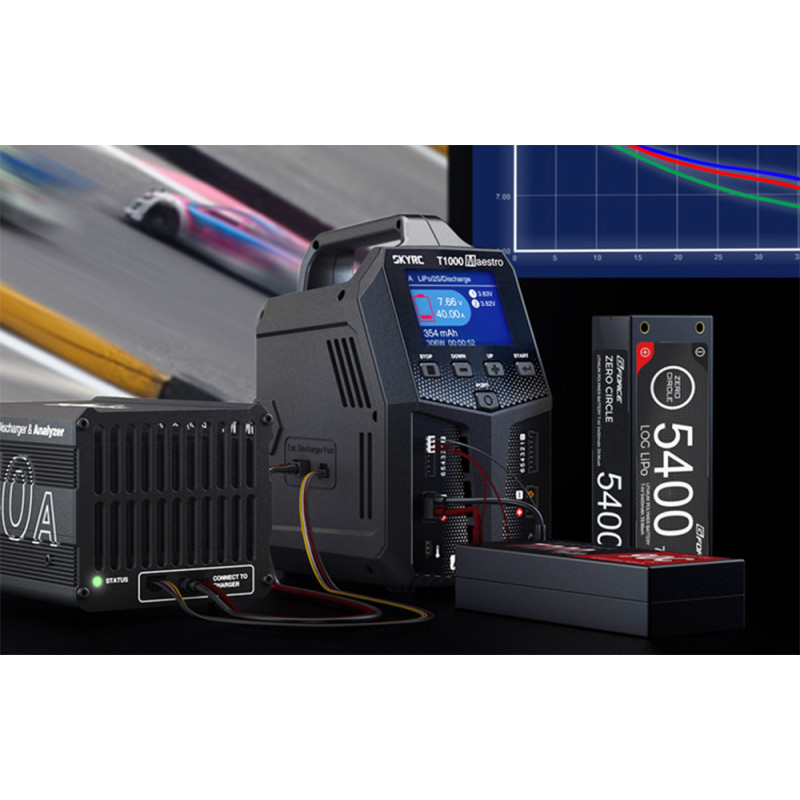

Additional capabilities
Do you care about additional capabilities? Try the separately available devices that work with the charger. For example, the BD350 discharger provides a maximum of 40 amperes. In combination with the T1000 Maestro, it also allows you to check the condition of the battery using Charger Master software. There is also a charging hub that can handle up to 150 watts and offers up to 4 ports (3x USB-C, 1x USB-A).

User-friendly interface
The charger features an easy-to-read 2.8″ TN LCD screen with a clear ColorX interface. It provides a resolution of 240x320 and displays images in 262,144 colors. Also noteworthy is the 250:1 contrast ratio. Responsive Web2.0 menus and specially designed icons make operating the device much simpler and more pleasant! What's more, the interface offers 4 languages to choose from - English, Dutch, Chinese and Japanese.

Will prove itself while traveling
Take the charger to your next RC event and don't sacrifice the ability to quickly charge your batteries while you're away. The T1000 Maestro is compatible with 100-240 volts, which means you can use it in many countries around the world without any problems. The product is also equipped with a special handle that makes it much easier to carry.

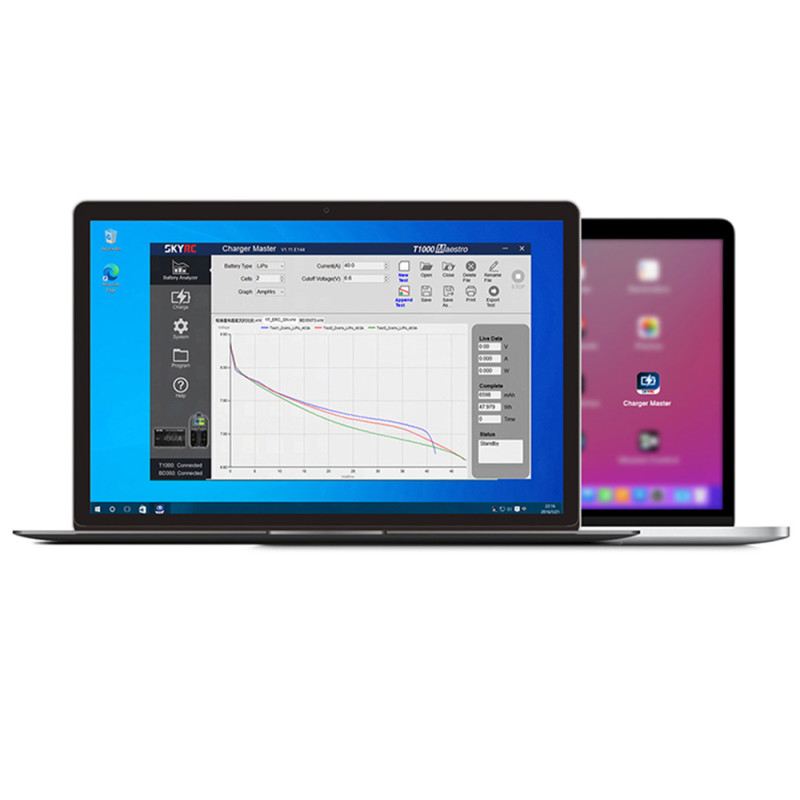

Try out the Charger Master software
Get convenient access to the most important information - just use the Charger Master software. Simply connect the T1000 charger to your computer with a USB-C cable! Once you do, for example, you can download OTA updates and sync the latest software version to the cloud in real time. It is also possible to view a graph of charging/discharging data.

Specifications:

• Model: T1000
• AC input voltage: 100-240 V (50 / 60 Hz)
• DC input voltage: 10-30 V
• Input current: 35 A max.
• AC charging power: 450 W max.
• DC charging power: 1000 W max.
• Discharge power Main port: 10 W
• Discharge power Balancer port: 37 W max.
• External discharge: 350 W max.
• Charging intensity: LiPo / LiFe / LiIon / LiHV / NiMH / NiCd / Pb: 0,1-20,0 A;
  Parallel charging: 20,0-35,0 A
• Discharge rate of LiPo / LiFe / LiIon / LiHV / NiMH / NiCd / Pb: 0,1-2,0 A;
  External discharge: 0.1-40.0 A;*
  *BD350 discharger is required for this function, which must be purchased separately
• LiPo / LiFe / LiIon / LiHV balancer current: 1.5 A max.
• Battery type: LiPo / LiFe / LiIon / LiHV: 1-6S;
  NiMH / NiCd: 4-15S
  Pb: 3S / 6S / 12S
• DC output voltage: 5-27V
• DC output current: 1.0-15.0 A
• Dimensions: 190.3 x 153.5 x 100 mm
• Weight: 1370 g

*Follow the instructions included with the product.
