KAVAN CHARGER C50 DUO / 2x250W

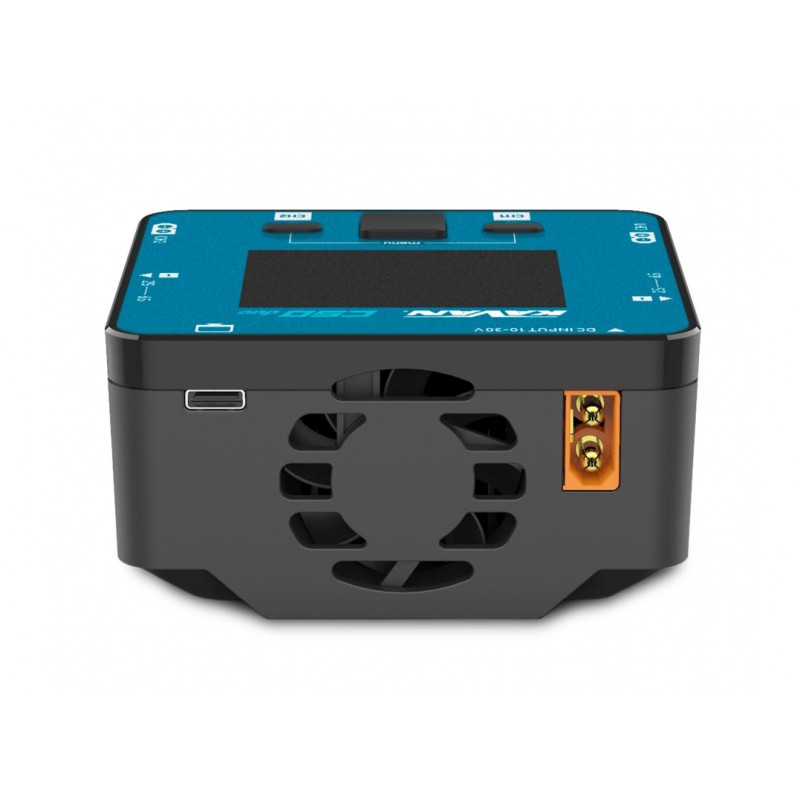

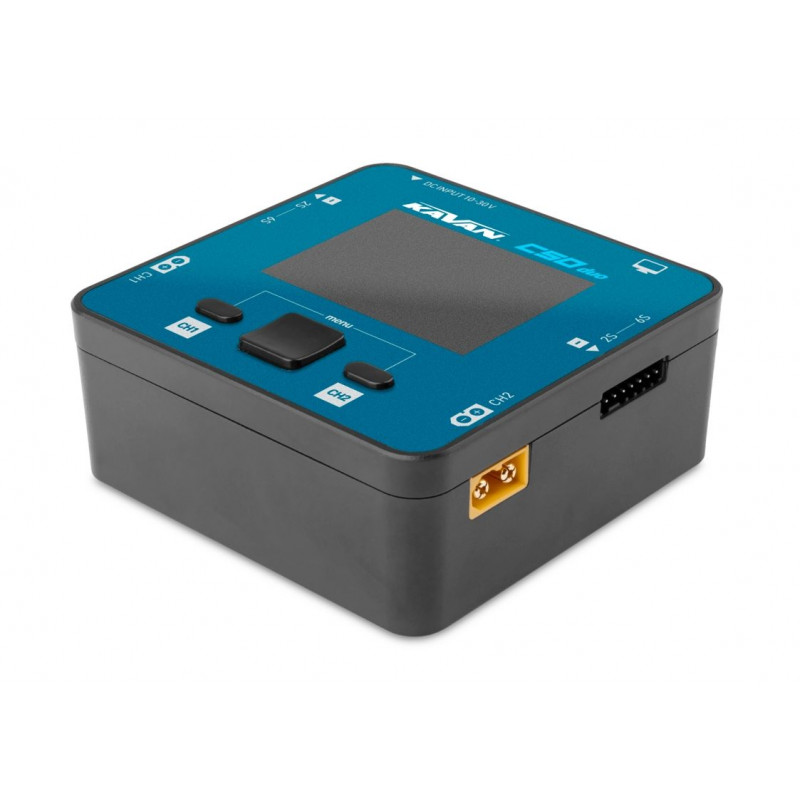

Miniature dual-channel charger KAVAN C50 Duo 2x250W is a smart charger powered by car battery - stabilized mains source with very simple and clear operation. C50 Duo allows you to charge popular cell types (NiCd, NiMH, LiPo, LiHV, ULiHV, Li-ion, LiFe, Pb), in addition, it is equipped with built-in six-channel balancers that ensure safe charging of lithium batteries. The charger is equipped with a color LCD display and programming buttons, which will provide you with a convenient and very clear way to set parameters, control and monitor charging progress.

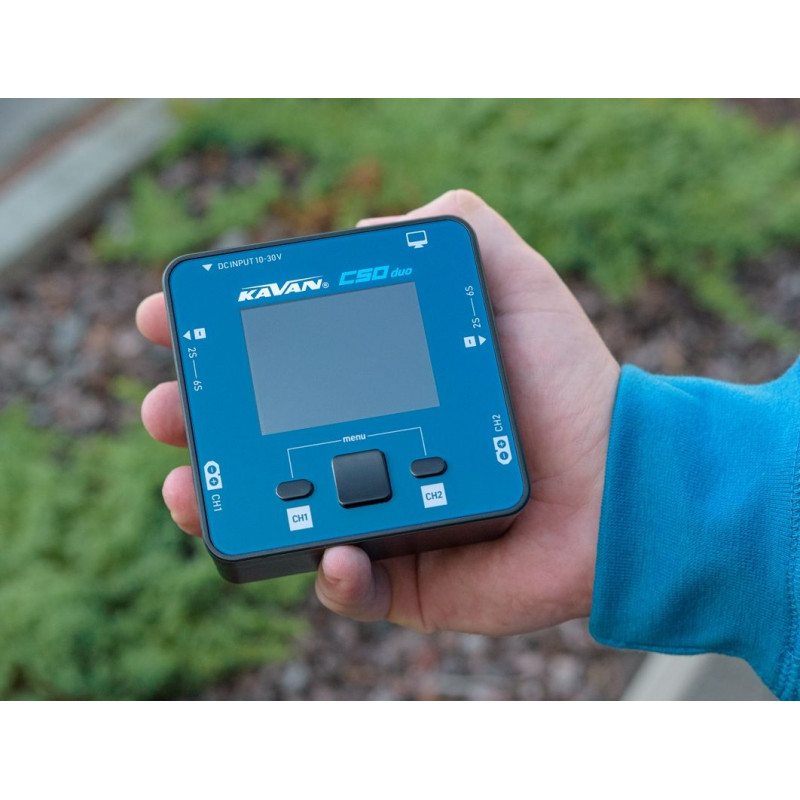

In addition to its compact, palm-sized design and intuitive operation, it is especially noteworthy:

• program for new types of "high-voltage" LiHV lithium batteries with terminal voltage for charging up to 4.35 V and ULiHV with terminal voltage of 4.45 V
• possibility of synchronous operation of both channels for charging two identical batteries or parallel charging of one battery of up to 400 W,
• adjustable terminal voltage for charging lithium batteries (allows gentler charging, which aviators like, or on the contrary, brutal overcharging, which "car enthusiasts" love)
• adjustable charging end voltage for lead-acid batteries (1.90-2.45 V; allows charging of all types of lead-acid batteries)

Overview of basic functions and parameters:

• Power supply 10-30 V DC (XT60 socket); to fully utilize the maximum power of the charger, the supply voltage should be at least 24 V
• For charging 1-16 NiCd/NiMH cells, 1-6 Li-ion/LiPo/LiFe/LiHV/ULiHV cells or 2-20V lead-acid batteries
• Adjustable charging current (0.2-10.0 A) in each channel (max. 250 W)
• Max. charging power 1x400 W (charging current 0.2-16.0 A) in parallel charging mode
• Charge termination using automatic delta-peak for NiCd and NiMH batteries
• Lithium and lead batteries are charged using the "constant current/constant voltage" method
• Adjustable delta-peak detection sensitivity for NiCd and NiMH batteries
• Adjustable final charging voltage for lithium and lead-acid batteries
• Charging mode allows you to charge lithium batteries with or without a balancer
  C50 Duo has no discharge function
• CH1 channel can operate as a stabilized source with adjustable voltage of 5-24 V and current of 0.2-5.0 A
• Easy software update via USB-C port

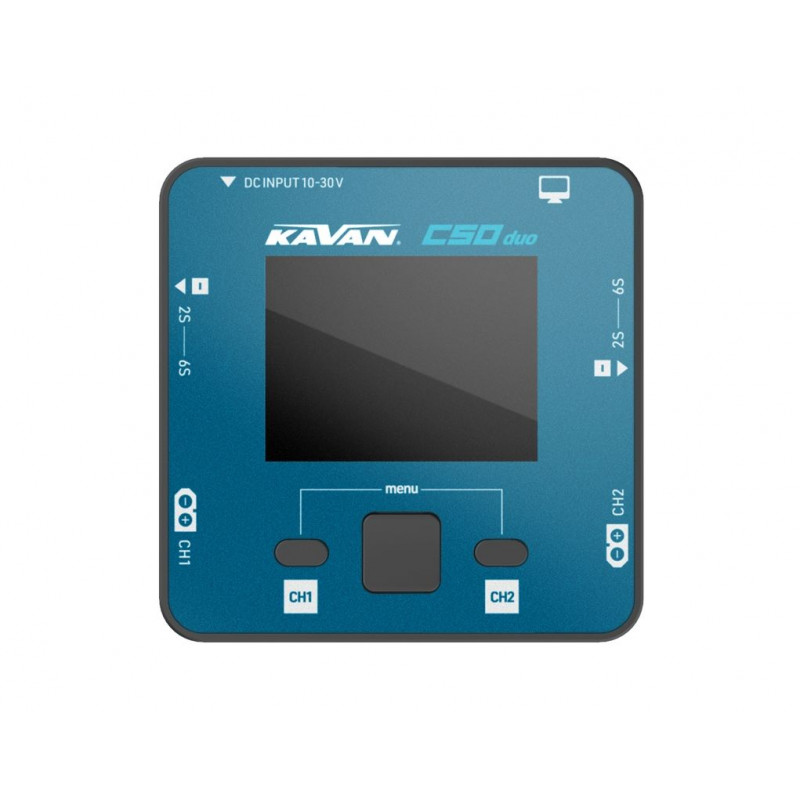

• Backlit color LCD display with simple and easy-to-read menus and parameter display during charging
• Programming buttons for easy and clear charger setup and control
• Safe operation is influenced by a series of warning messages - wrong input voltage, wrong connection, wrong battery or battery condition, wrong polarity on output, etc.
• Fan for forced cooling.
• Compact plastic box, very small size

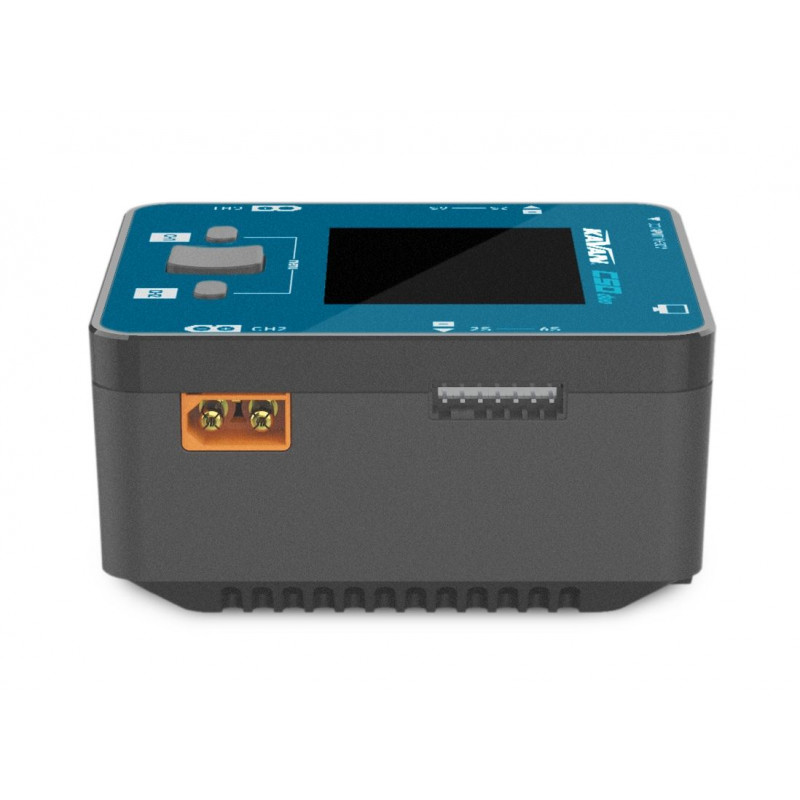

The charger is equipped with XT60 output sockets in both channels and universal sockets for JST-XH service connectors, allowing you to directly connect battery power cables and JST-XH service connectors of 2-6S kits - if you use kits with XT60 and JST-XH connectors, you can do without charging cables and adapters. You can use standard Sky RC or RC System adapters to connect the service connectors of other systems.

Specifications:

• Input voltage (car battery - DC) [V]: 10 - 30
• Charging current [A]: 0,2 - 10
• Charging power [W]: 250
• Number of channels: 2
• NiCd [number of cells]: 1 - 16
• NiMH [number of cells]: 1 - 16
• Li-Po [number of cells]: 1 - 6
• Li-Ion [number of cells]: 1 - 6
• Li-Fe [number of cells]: 1 - 6
• Li-HV [number of cells]: 1 - 6
• Pb [number of cells]: 1 - 10
• Stabilizer: YES
• Balancer current [mA]: 500
• Length [mm]: 90,5
• Width [mm]: 90,5
• Height [mm]: 47
• Weight [g]: 250

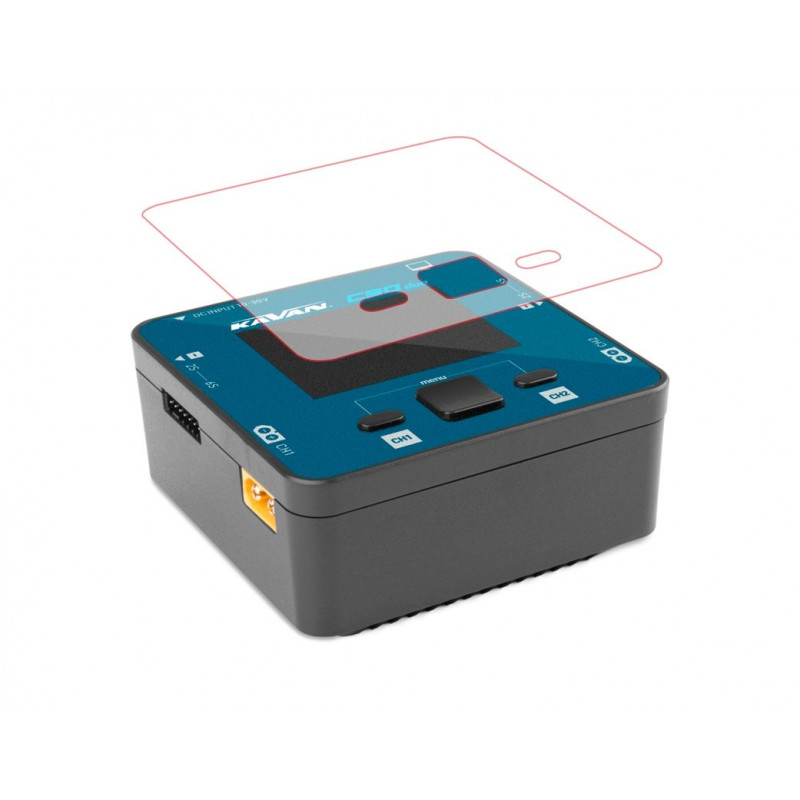

Included with the charger: charger C50 Duo, screen protector, instructions.

*Follow the instructions included with the product.
