SkyRC T100 CHARGER

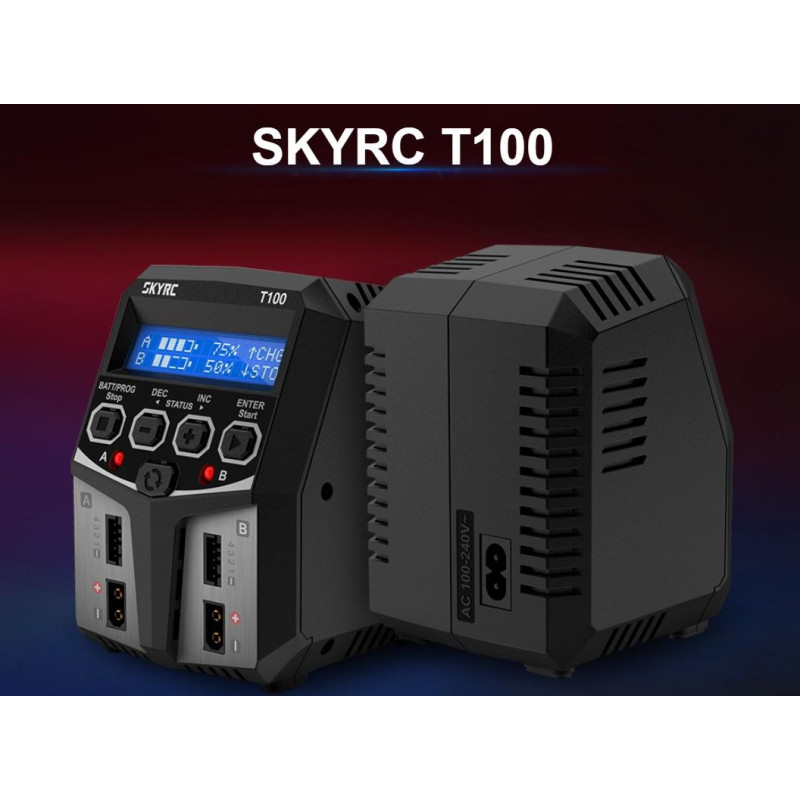

SkyRC T100 2 x 50W charger

Double the power and mobility

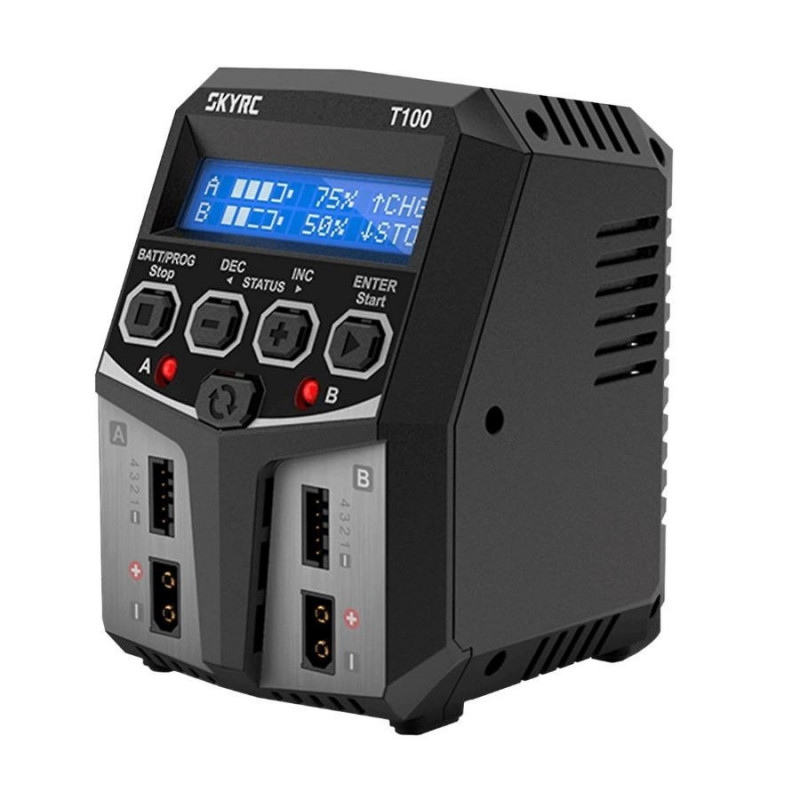

The SkyRC T100 charger is a dual-channel charger that is capable of charging or discharging all the most popular battery types. The clever design allows seamless connection to the balancer ports and the XT60 plug. The charger is small in size, but has as much as 100 watts of power to charge a battery with a current of 5 amps. The charger also poses AGM and cold charging modes for charging lead-acid and AGM batteries at lower temperatures

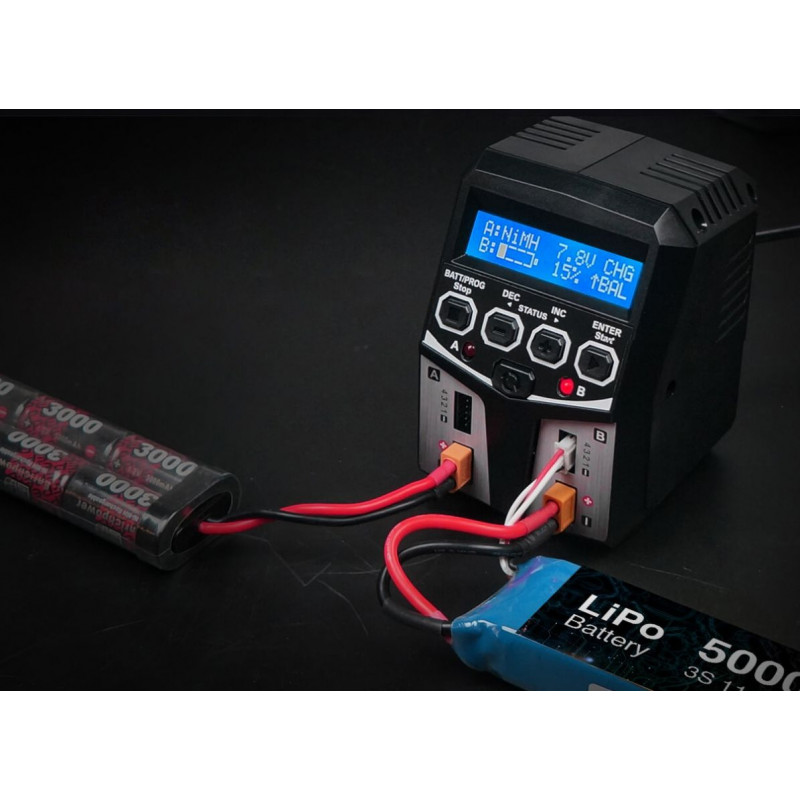

Two charging circuits
The T100 allows you to connect 2 batteries, after which it will intelligently and automatically charge them to their maximum capacity. The batteries can have different specifications and be of completely different types.

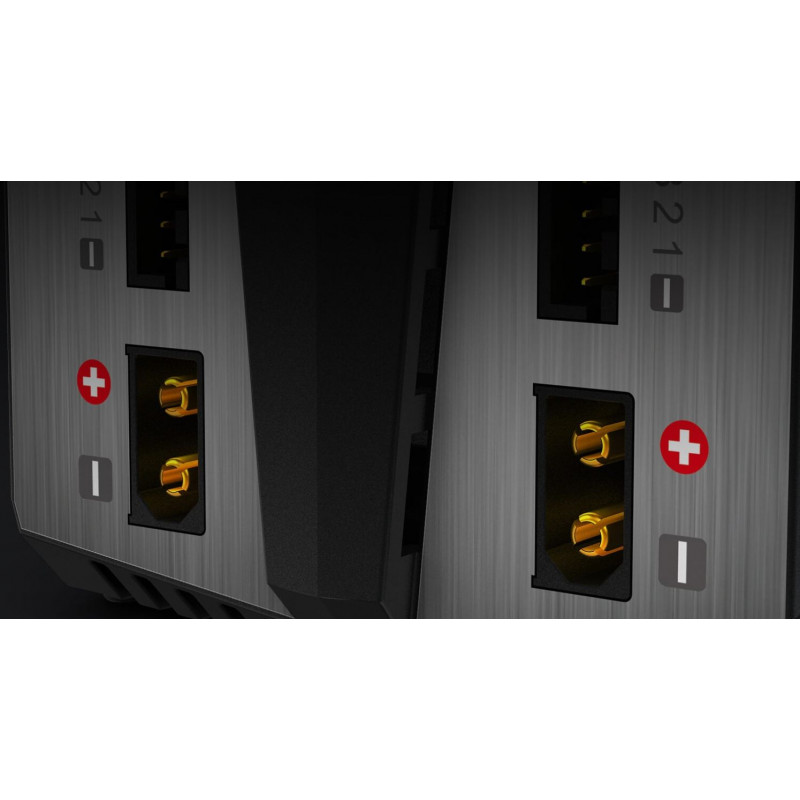

Universal XT60 plug
Today's most popular XT60 plug has been built into the T100 charger, so we can easily connect and charge commonly used batteries. XT60 prevents the problem of reversed polarity and provides a very stable connection.

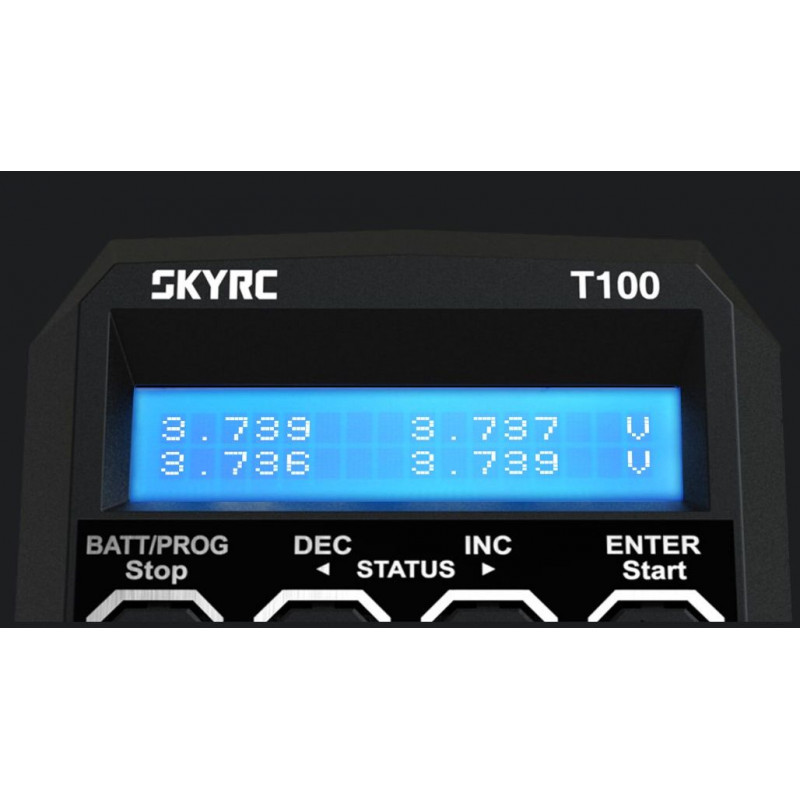

Greater accuracy in voltage reading
The charger's software has been highly optimized, allowing it to display battery voltage up to 3 decimal numbers. With the T100, you are in for an extremely precise voltage measurement during the charging process.
AGM and cold charging modes
AGM batteries are more durable and lighter than typical lead-acid batteries. Although both types of batteries have the same key components, their chemical structure makes them very different. For this reason, the T100 introduced a charging mode for AGM batteries. Never charge AGM batteries with an ordinary charger in Pb mode. In addition, the T100 has introduced a COLD mode optimized for low-temperature operation.

Specifications:

• Power supply: AC 100-240 V

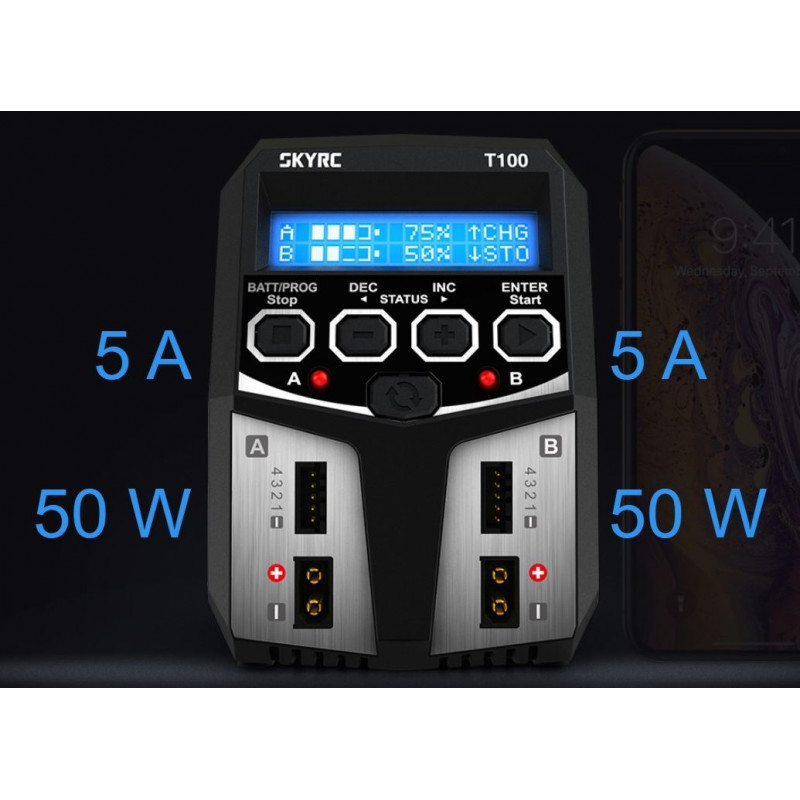

• Charging power: 100W (50W x 2)
• Discharge power: 10 W
• Battery type: LiPo/LiIon/LiFe/LiHV 2-4S, NiMH/NiCd 6-8S, Pb 6/12V
• Battery Capacity: LiPo/LiIon/LiFe/LiHV 100-50000 mAh, NiMH / NiCd 100-50000 mAh, Pb 100-50000 mAh
• Charging current: 0.1 - 5 A
• Discharge current
• Charging voltage: LiPo: 4.18-4.25V/cell, LiIon: 4.08-4.2V/cell, LiFe: 3.58-3.7V/cell, LiHV: 4.25-4.5V/cell, NiMH/NiCD - Delta-Peak Detection, Pb Normal: 2.4V/cell, Pb AGM: 2.45V, Pb Cold: 2.45V
• Discharge voltage: LiPo: 3.0-3.3V/cell, LiIon: 2.9-3.2V/cell, LiFe: 2.6-2.9V/cell
  LiHV: 3.1-3.4V/cell, NiMH/NiCD - 0.1-1.1V/cell
• Balancer: 2-4S
• Dimensions: 100 x 90 x 127 mm
• Weight: 500 g
• Timer: 1-170 minutes
• Operating temperature: 0℃-40℃
• Display: 2x16 LCD with backlight
• External ports: XH 2-4S balancer socket, XT60 female

*Follow the instructions included with the product.
