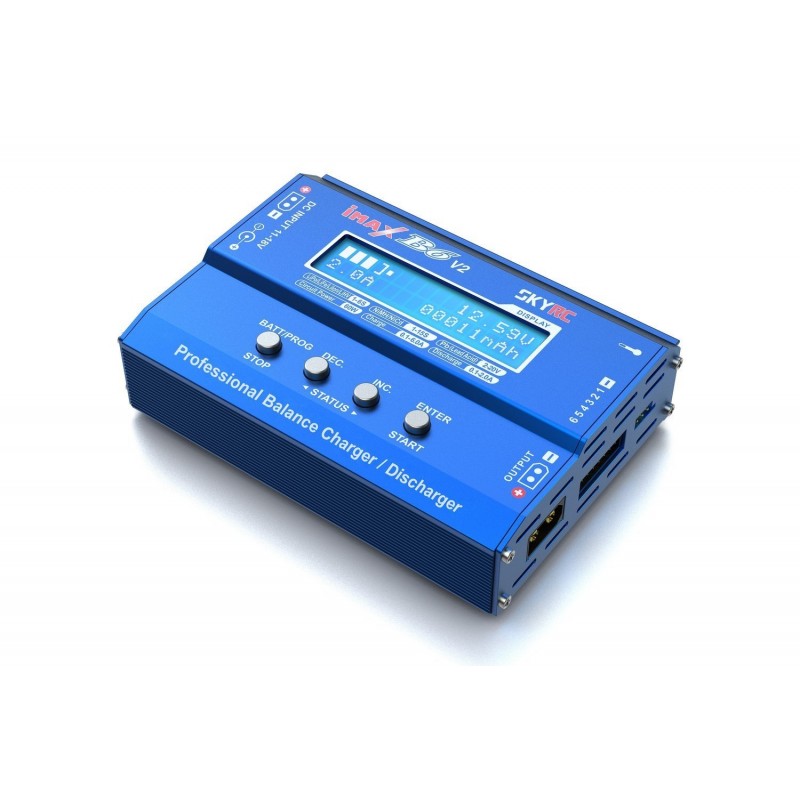

SkyRC ŁADOWARKA iMAX B6 V2 (021552)

SkyRC CHARGER iMAX B6 V2 (021552)

€30.23
12-4622
SkyRC
In stock

A classic in a new version

iMax B6 V2 is a modernized version of the most popular charger among RC model users and the first-ever SkyRC brand. The high-quality charger with microprocessor-controlled charging, discharging and regulated DC power supply is compatible with all major battery types (LiPo / LiFe / Li-Ion, LiHV, NiMH, NICd, Pb). SkyRC iMAX b6 V2 now has a charging power of 60 W with a charging current of up to 6 A. In addition, it supports charging batteries for DJI Mavic and DJI Inspire with a maximum charging power of 4 A.
New Features

The iMAX b6 V2 charger screen now shows an intuitive battery charge icon as well as a battery charge percentage record. This makes it much easier to assess the level of charge and discharge of the battery.


High-quality microprocessor

32-bit ARM Cortex-M3 microprocessor with high speed ensures smooth and lightning-fast data processing. Compared to the previous version, this means twenty times more possibilities. Using the proven voltage range of 2.5 V - 5.5 V, the microprocessor also has strong interference-suppression properties.

DC / DC converter

B6 V2 has a built-in DC power port, which has the ability to power devices with a power of 60 W in the voltage range 5-26 V and a current of 1-6 A. With this charger, RC drivers have a useful gadget to power devices such as tire heaters, workshop lamps, etc. .


Charging PB batteries in cold & AGM mode

The charger is able to charge AGM and lead acid batteries at low temperatures.


Thermal protection

The internal chemistry of the battery will cause its temperature to rise. When it exceeds the set threshold, the charging process is interrupted. This function is available when an optional temperature sensor is connected and must be purchased separately here.

Specification:

Weight 238 g
Input voltage DC 11-18V
Dimensions: 115 x 84 x 31 mm
Max. 60W charging
Max. 5W discharge
Charging current range 0.1-6.0 A
Discharge current range 0.1-1.0 A
Current consumption per cell 300mA / cell
PB 2-20V battery voltage
LiPo / LiFe / Lilon / LiHV number of loaded cells 1-6S
NiMH / NiCd number of charge cells 1-15S

Included:

IMax B6 V2 charger
DC power cable
Dean charging cable
Charging cable without connector
