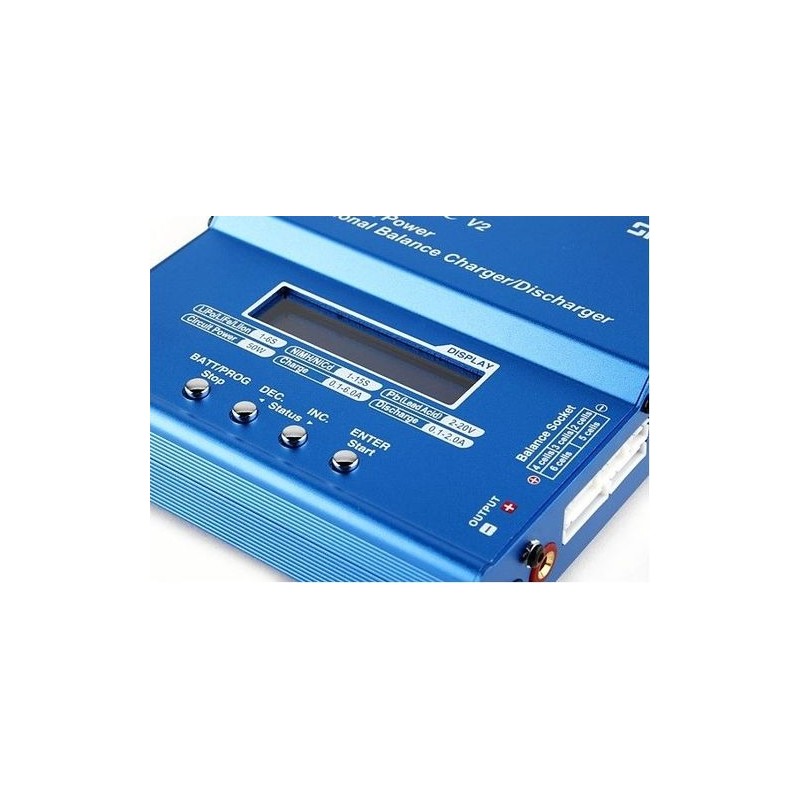

SkyRC CHARGER B6AC V2 50W 12V / 230V

iMAX B6AC is a quick and easy-to-use charger for NiCd / NiMh and lithium batteries. Its main features are:

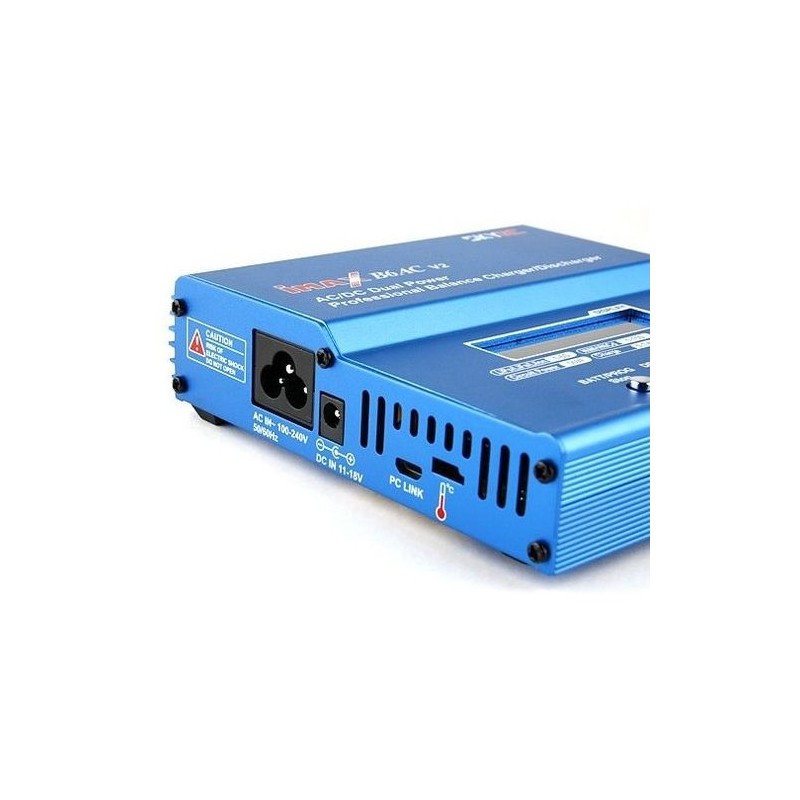

Dual Power:
The built-in power supply allows you to power the charger directly from the 230V network. Additionally, it also has 11-18V to connect the power supply or battery.

Optimized Operating Software:
The AUTO function provides constant control over the charging and discharging rates, preventing, inter alia, overheating of lithium batteries and, as a result, even an explosion. The charger will automatically cut off the power in the event of any failure. The operating modes are automatically controlled for maximum security, while each setting can be manually configured by the user.

Complete security:
Delta-peak: When the battery voltage exceeds a certain threshold, the charging process will be terminated automatically. It is also possible to set the upper limit of the charging current of NiCd or NiMH batteries.

Temperature limitation:
The reactions in the battery during charging may cause the temperature of the battery to rise during charging. When the temperature limits are exceeded, the charging process will end. This function is available after connecting an optional temperature probe, not included in the set.

Maximum charger power:
The maximum real power is limited to 50W, while the discharge power is limited to about 5W. If the temperature exceeds 80 degrees, the charging process will be stopped and the message "TEMP OVER ERR" will be displayed on the display. This means that the discharge current must be reduced.

Balancing of individual cells during charging and discharging:
During the discharge process, the iMAX B6AC can constantly monitor and equalize the voltage of each battery cell individually. If there are abnormalities in the voltage level, a message will be displayed and the process will end automatically.

Adaptable to different types of lithium batteries:
The charger is suitable for various types of lithium batteries such as Li-ion, LiPo and the new series of LiFe batteries.

Technical data:

• AC supply voltage: 100-240V
• DC supply voltage: 11-18V
• Charging power: Max. 50W
• Discharging power: 5W
• Charging current: 0.1-5.0A
• Discharge current: 0.1-1.0A
• Li-po balancer current: 300mA / cell
• Number of NiCd / NiMH cells: 1-15 cells
• Number of Li-ion / Fe / Po cells: 1-6 cells
• Pb / gel battery voltage: 2-20V
• Net weight: 575g
• Dimensions: 135 x 144 x 36mm

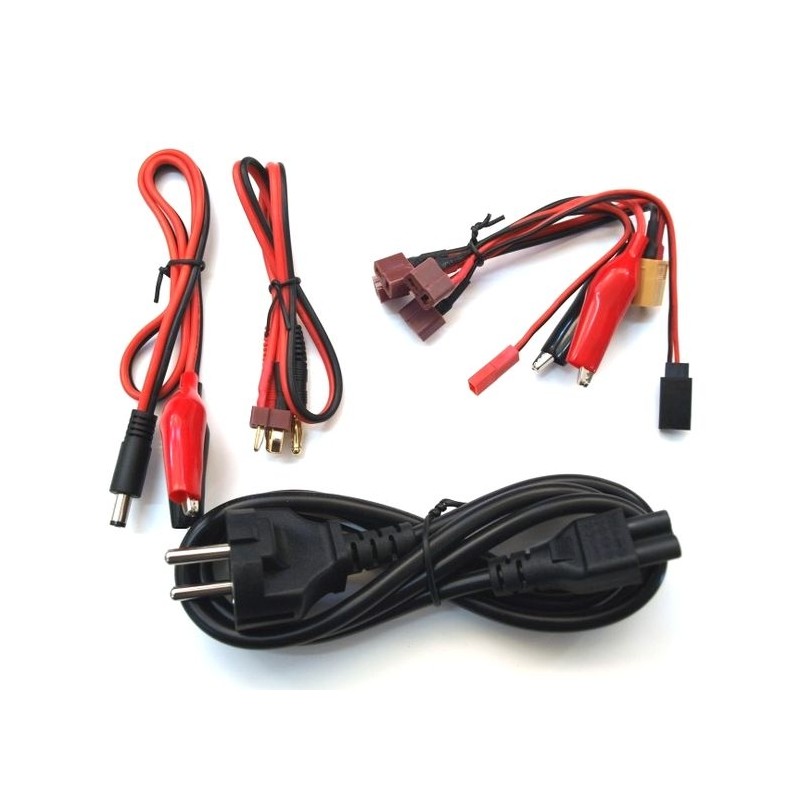

Kit composition:

• SkyRC iMAX B6AC V2
• The power cable for the power supply ends with two crocodiles
• T-type cable with crocodile clips
• A cable with a T-type tip ended with a futaba plug
• A cable with a T-type tip ended with a JST plug
• A cable with a T-type tip ended with an XT60 plug
• Power cable
