BRUSH MOTOR 12-24V / 16000RPM (15625)

€10.95
13-1000
Pozostałe
In stock

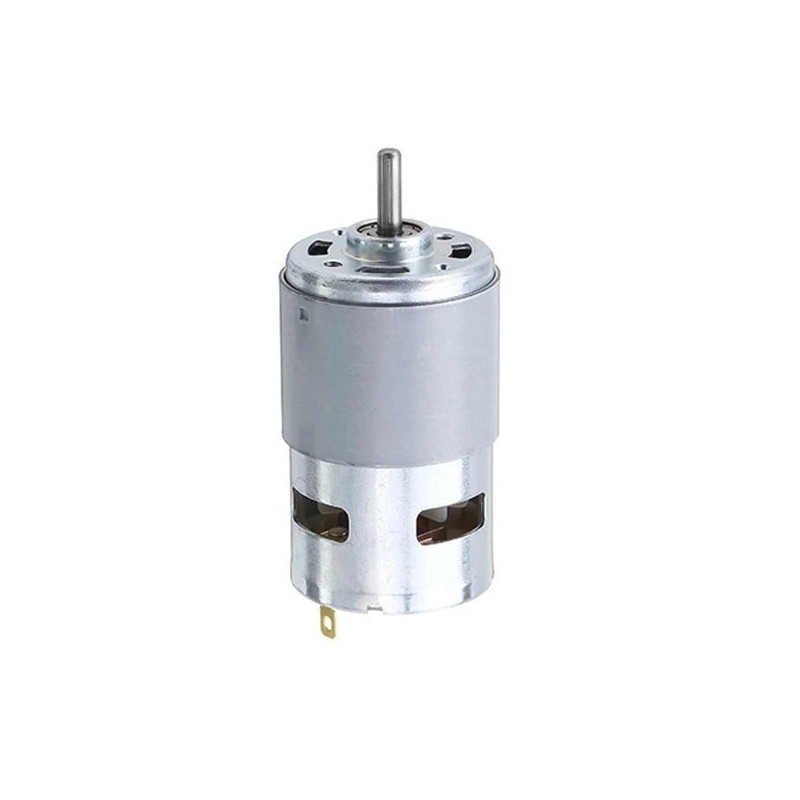

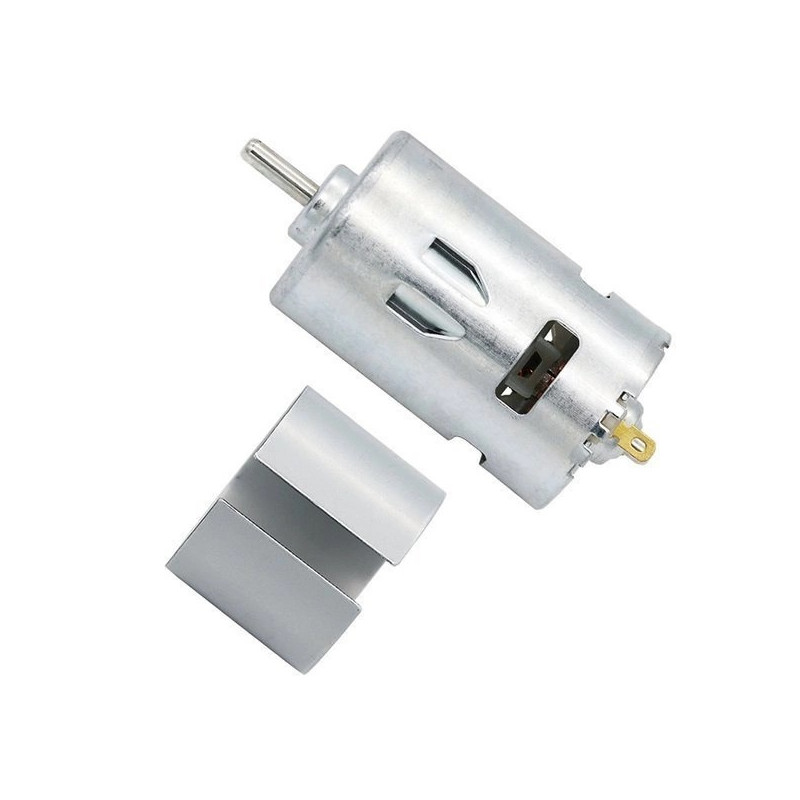

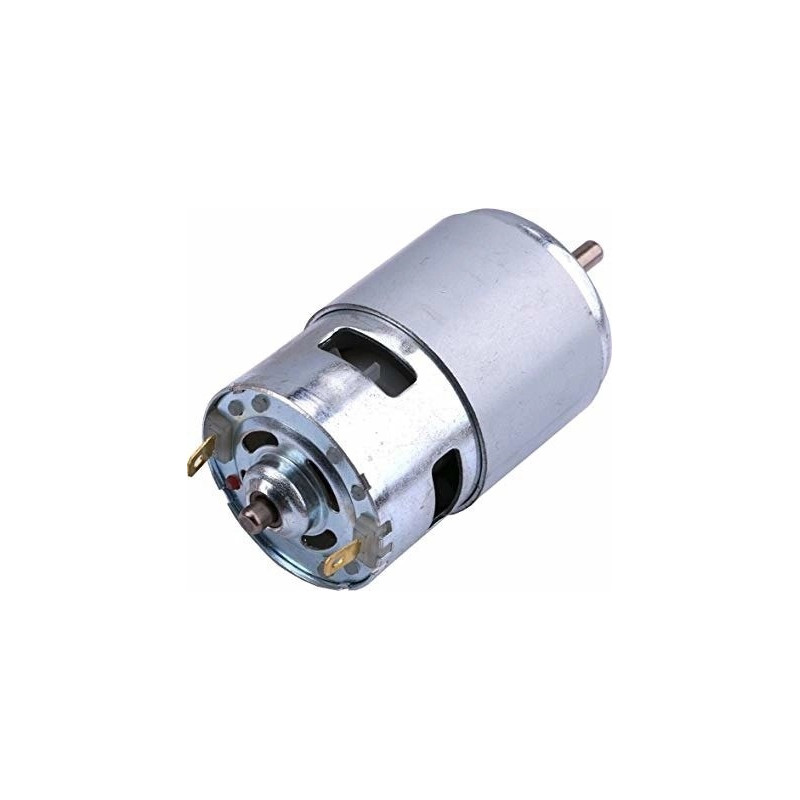

DC class 795 brush motor (with undercut), powered by DC 12/24V. The motor has a high-quality ball bearing on the shaft side and high torque.
Dedicated to use in robotics, model making, DIY projects, electrical appliances, electric drives, etc.

Product Features:

  • Typical DC motors consist of the following components:
    the rotor, through which the outwardly leading axis passes,
    the winding, which is wound around the rotor,
    a stator that surrounds the rotor, which contains permanent magnets,
    the commutator, which switches the windings on the rotor,
    brushes that supply power to the commutator.
    a built-in fan provides cooling to the winding

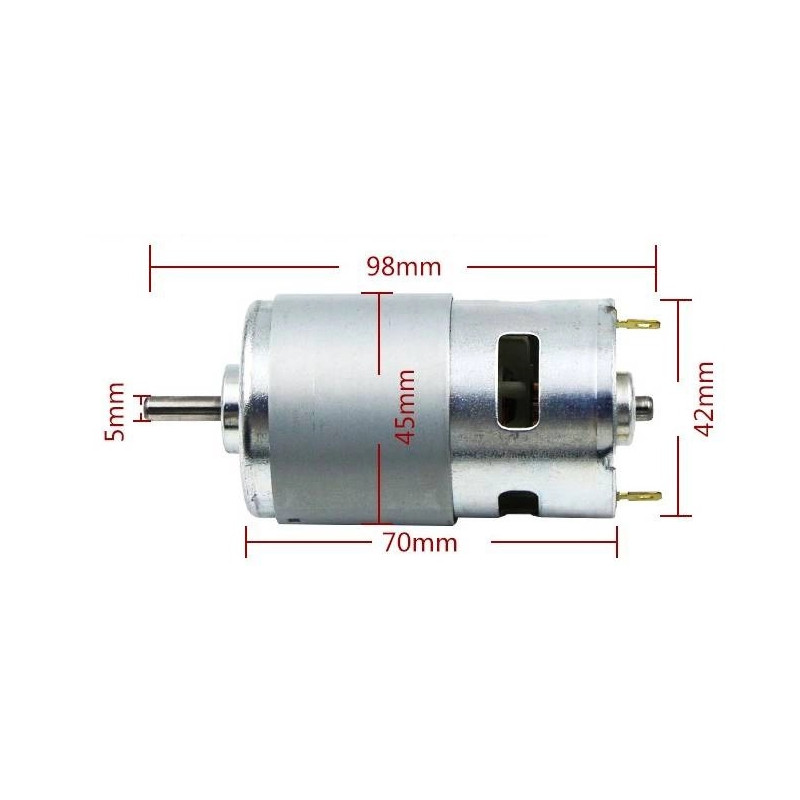

Technical specifications:

  • Shaft length: 16 mm (axis length above step level)
  • Shaft diameter: 5 mm
  • Motor diameter: 42 mm
  • Motor length: 70mm
  • Weight: 379g
  • Mounting hole spacing: 29mm
  • Mounting holes diameter: 2x M4
  • Speed: 8000 RPM at 12V and 16000 at 24V
  • No-load current consumption: 1.35A
  • Max. current consumption: 10A
  • Rated power: 100W
