RABOESCH BRUSH MOTOR RM730/12V (109-73)

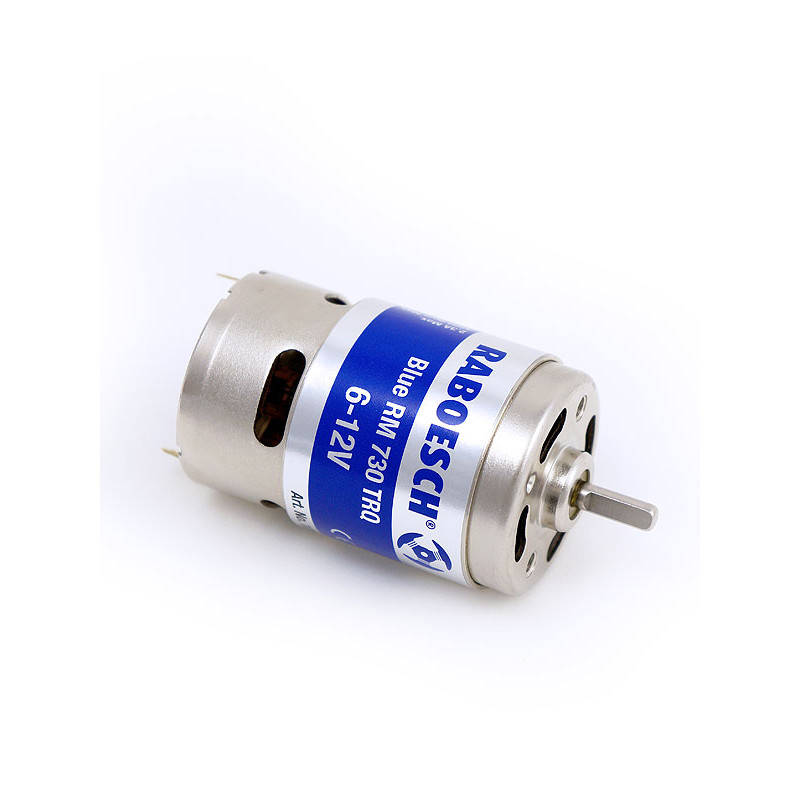

Blue RM730 TRQ 12V brush electric motor manufactured by the Dutch company RABOESCH.

Technical data:

• Nominal voltage: 12 V DC
• Operating voltage: 6-15 V - DC
• Shaft diameter: 5 mm
• Shaft length: 13 mm
• Weight: 352 g

No load:

• Speed: 4500 rpm max
• Current consumption: 0.40 A

Maximum output:

• Efficiency: 67%
• Speed: 3820 rpm
• Current consumption: 2,3 A
• Power: 18.00 W

Overload on block:

• Torque: 3041 g-cm
• Current consumption: 12,5 A

For more information and photos, please visit the manufacturer's website.

*Follow the enclosed instruction manual.
