Brush motors
  • Out-of-Stock

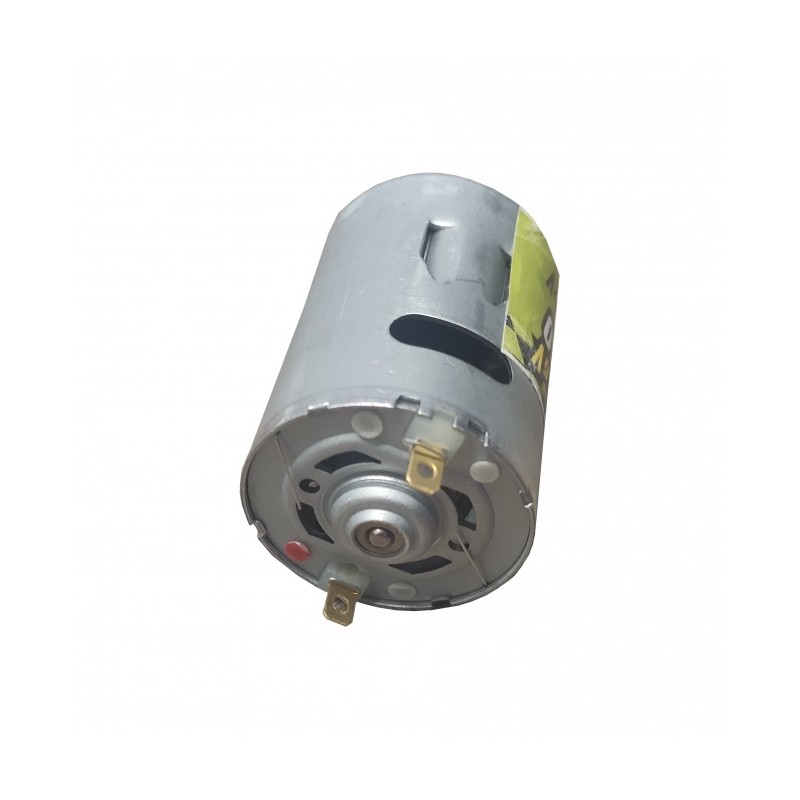

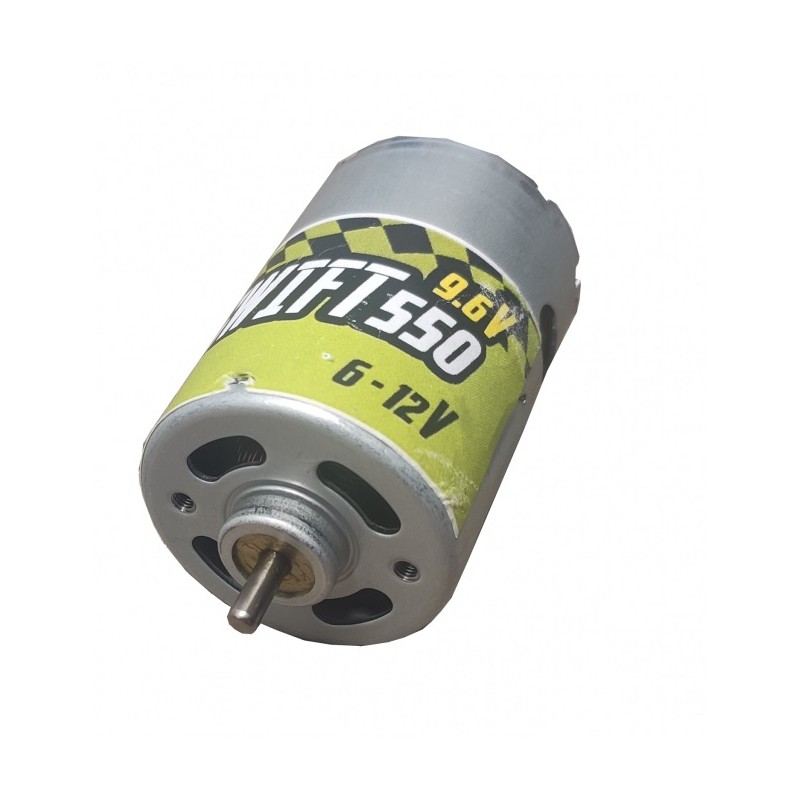

SWIFT MOTOR 550 / 9.6V (BRUSHED)

12-7311
GPX Extreme
Out of stock

Powerful 550 class GP X Extreme brushed motor that supports increased voltage of 12V. Recommended for car models in 1:10 scale and remote-controlled boats powered by 12V gel batteries.

Technical data:

  • Nominal Voltage: 9.6V
  • Working range (without gear): 6 - 12V
  • Working range (with gear): 12 - 18V
  • No-load speed: 19,200 rpm.
  • No-load current consumption: 1.87A
  • Rotations at max. capacity: 16,800 rpm
  • Current consumption at max. capacity: 12A
  • Shaft diameter: 3.17 mm
  • Body diameter: 35.7mm
  • Body Length: 58mm
  • Overall length: 67mm
  • Shaft length: 9mm
  • Weight: 200g
  • Mounting hole spacing: 25mm
  • Built-in fan
  • It can work in both directions (just reverse the direction of the supply current
