HANSH brakes 260 mm - ELECTRIC HV (099ELAFHV25)

New version prepared for a wider power supply range up to 8.4V (HV).

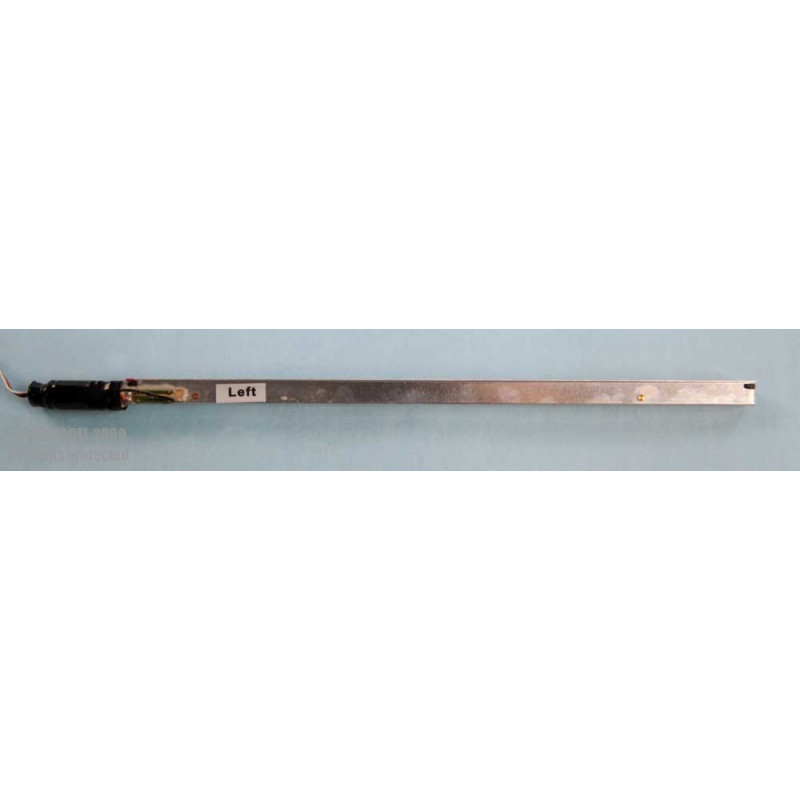

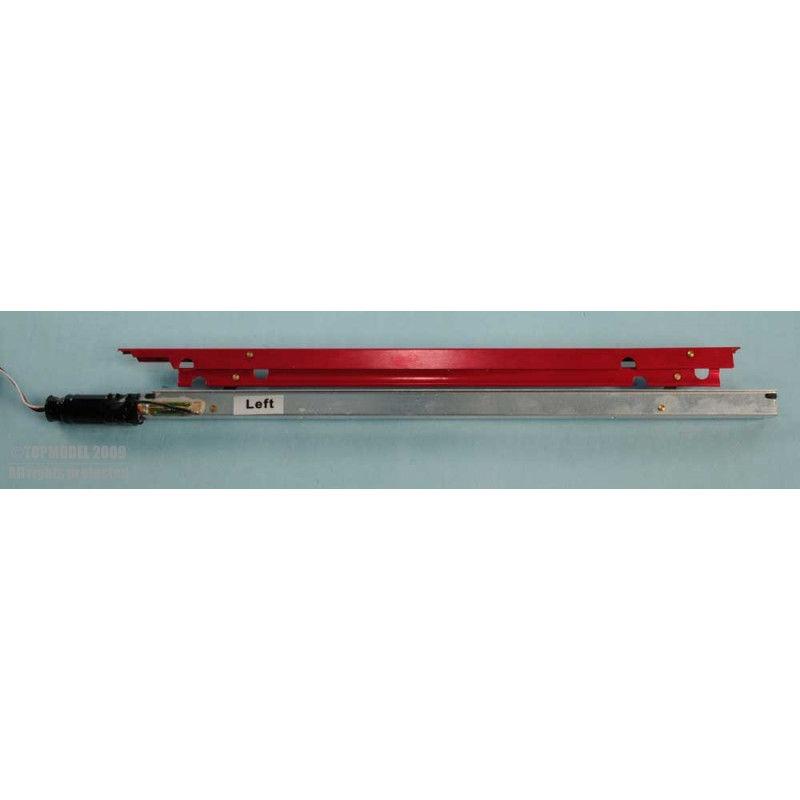

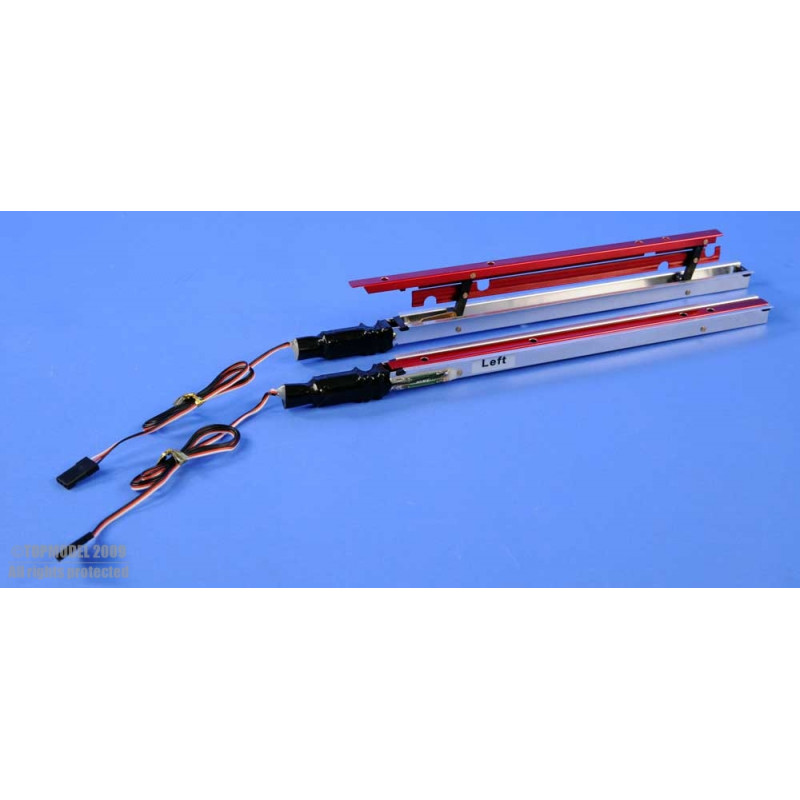

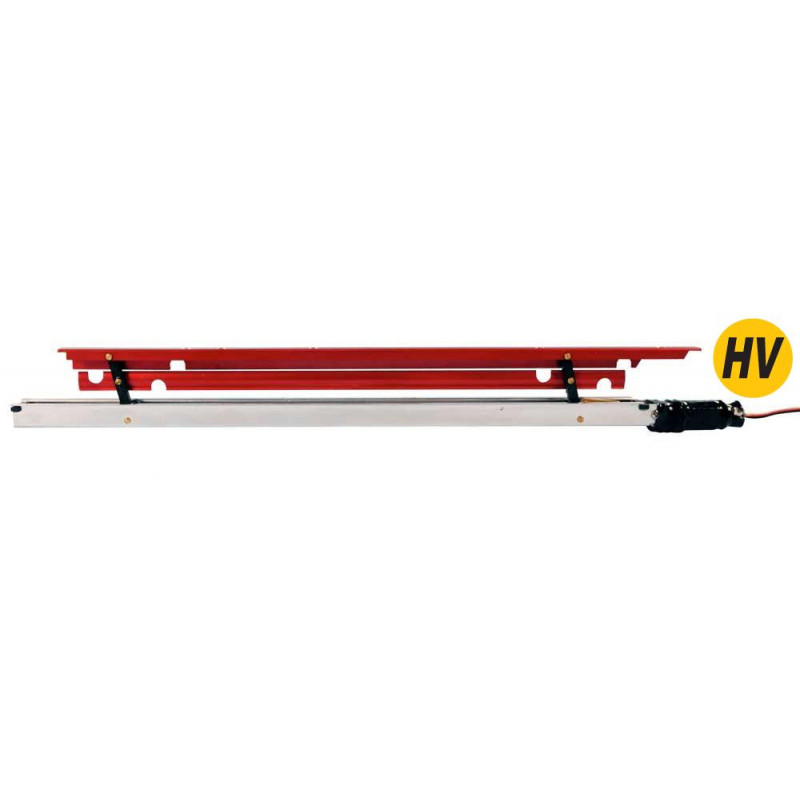

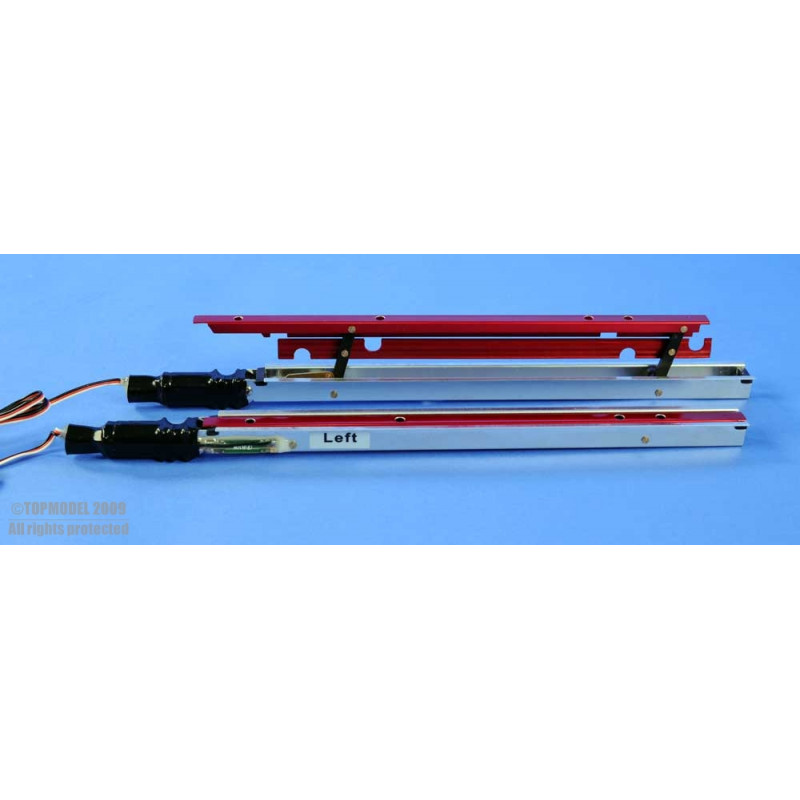

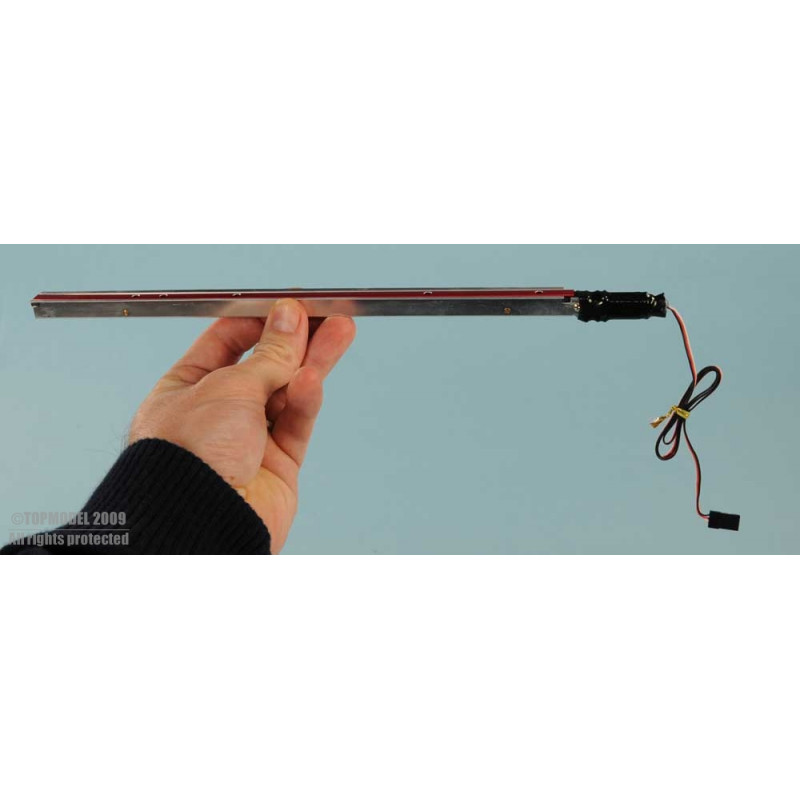

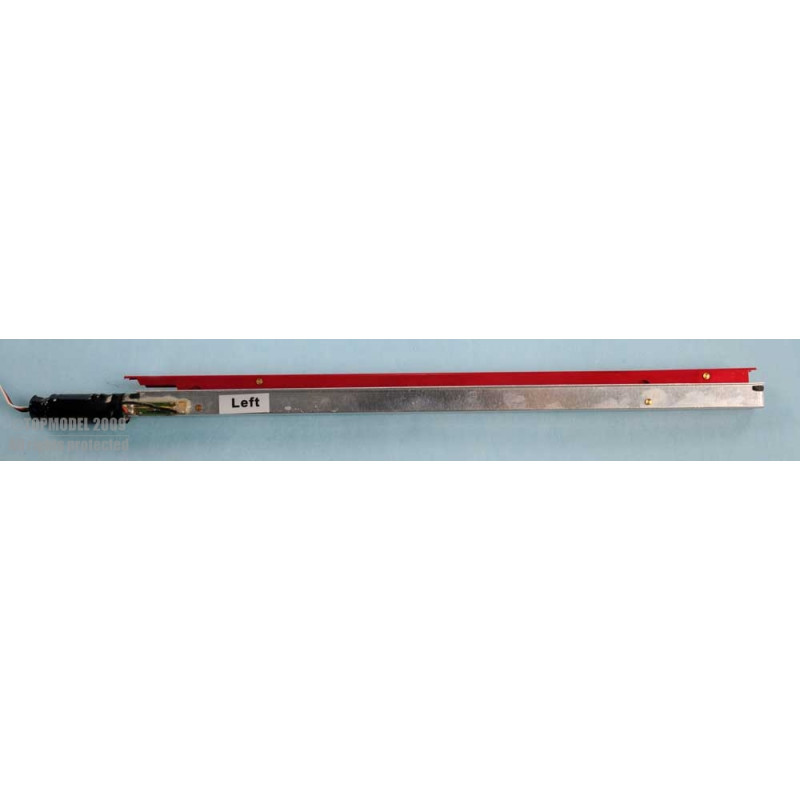

A set of (left + right) metal Schempp-Hirth airbrakes with electric drive. All you need to do is to connect to the appropriate channel in the receiver. In the closed position they do not consume electricity.

Technical data:

• Overall length: 300 mm
• Brake length: 260 mm
• Width: 9 mm
• Height: 10 mm
• Height when opened: 31 mm (21 mm extension)
• Power supply voltage: 4.8-8.4V
• Cable length: 420mm
• Weight: 33g each
• Current consumption and speed at 4.8V: 0.15-0.20A and 1.2″
• Current consumption and speed at 6.0V: 0.15-0.20A and 0.9″
• Current draw and speed at 7.4V: 0.16-0.22A and 0.7″
• Current consumption and speed at 8.4V: 0.17-0.22A and 0.6″

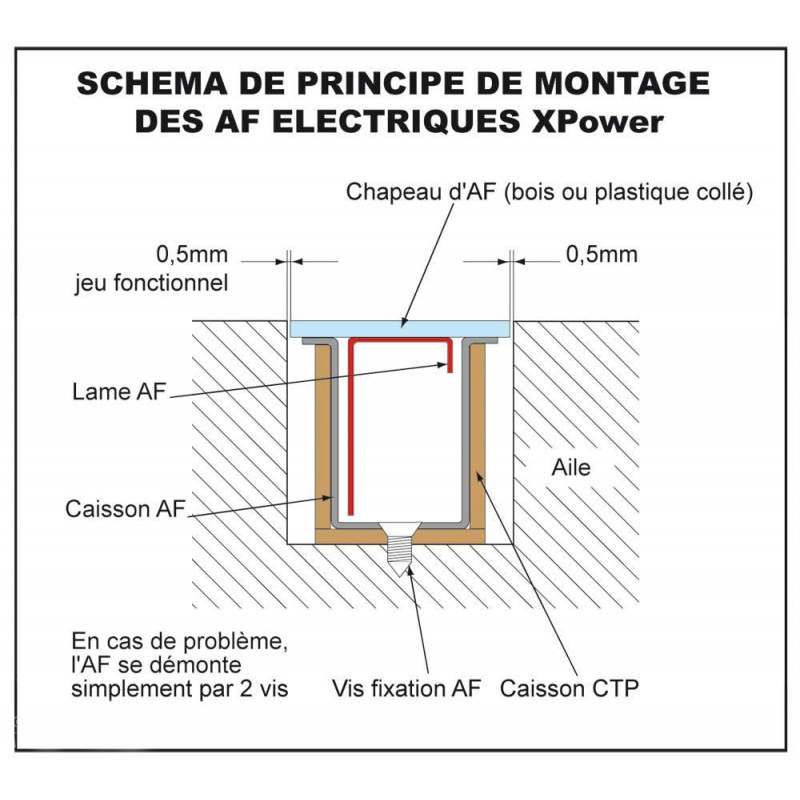

Installation instructions attached.
