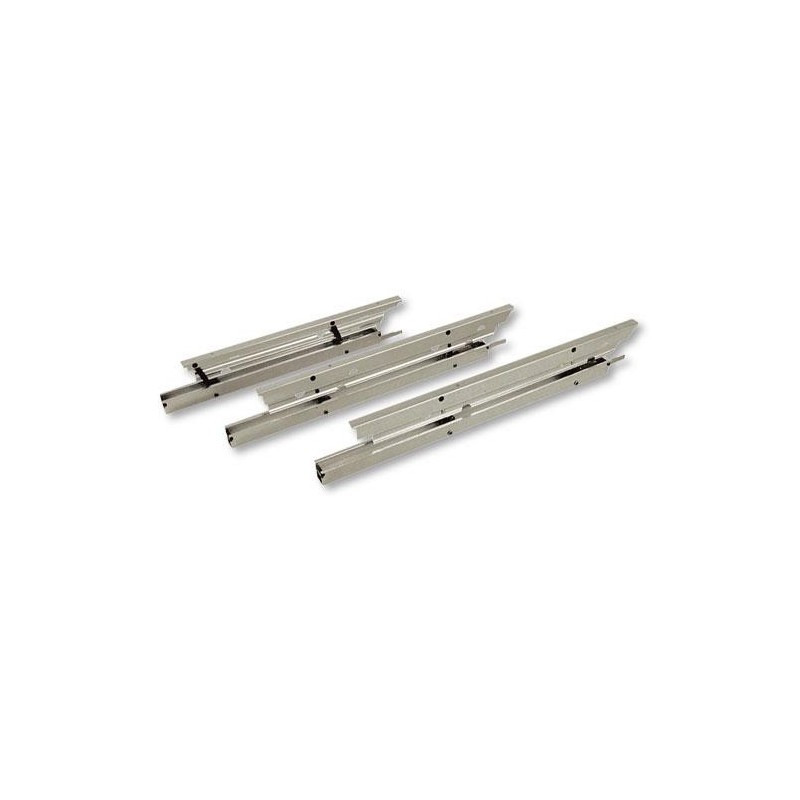

HORIZONTAL BRAKES 300/16 mm (0203016) for models up to 4.5 meters

Metal (aluminum) brakes from the Czech company TOPMODEL for model gliders. Thanks to their low height (when closed), they are suitable for low-profile wings. A mini class servo can be used for the drive

Technical data:

• length (without lever): 300 mm
• total length with lever (with brake closed): 315 mm
• height of closed brake: 16.8 mm
• total height of open brake: 48 mm
• working height of open brake: 31 mm
• mounting hole in the sash: 300x11 mm
• weight of 1 piece: 44.5 g
• price per set ( 2 pieces )

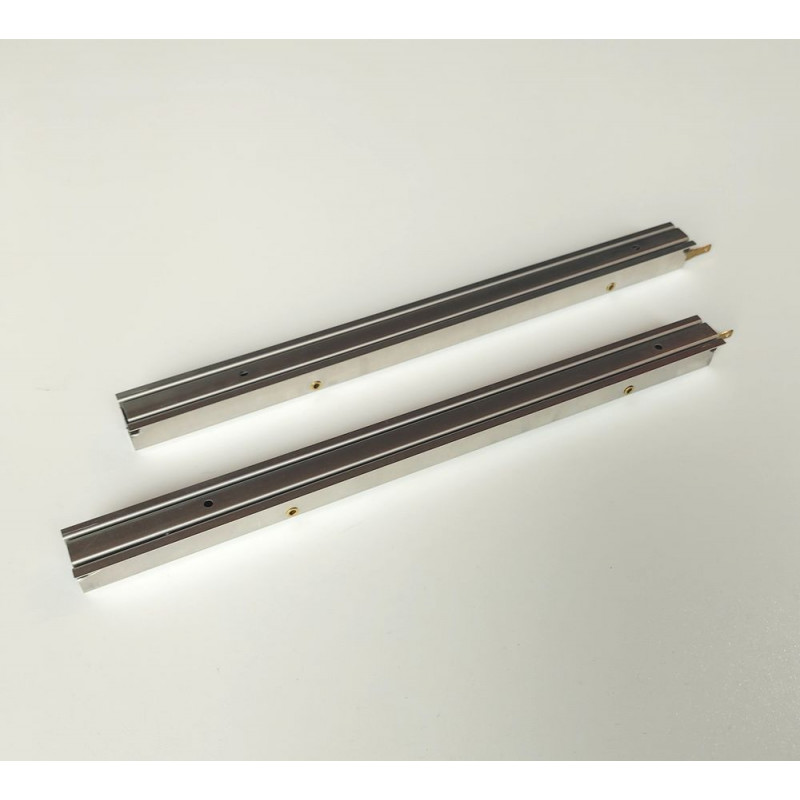

Closed brake:

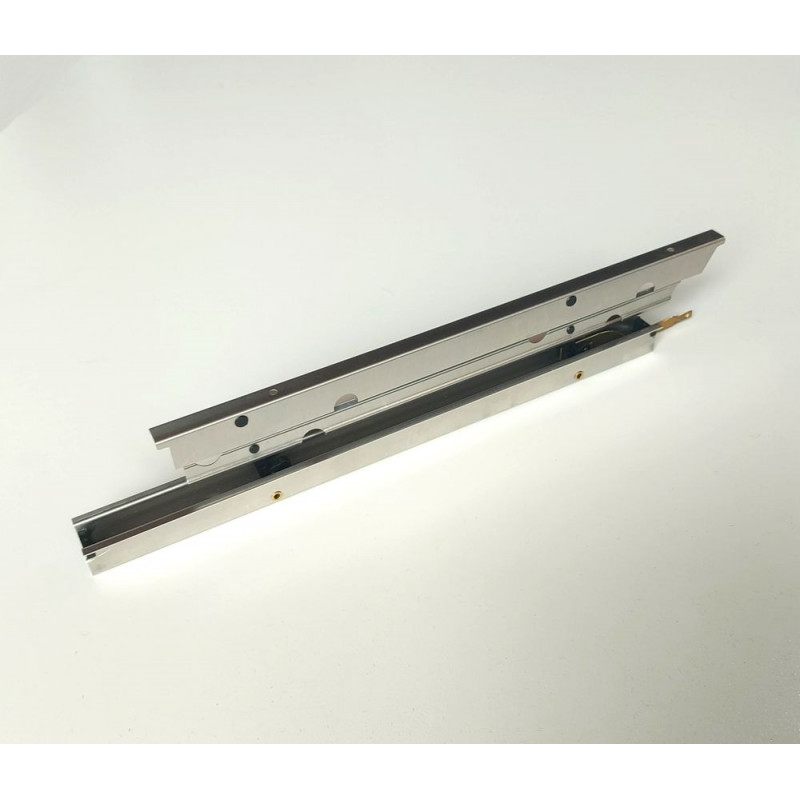

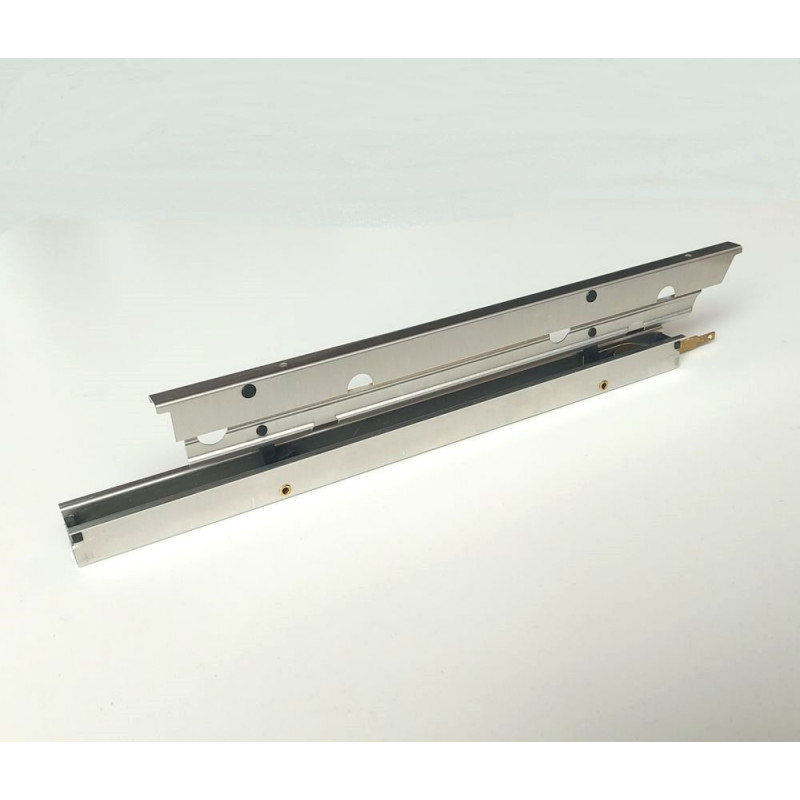

Open brake
