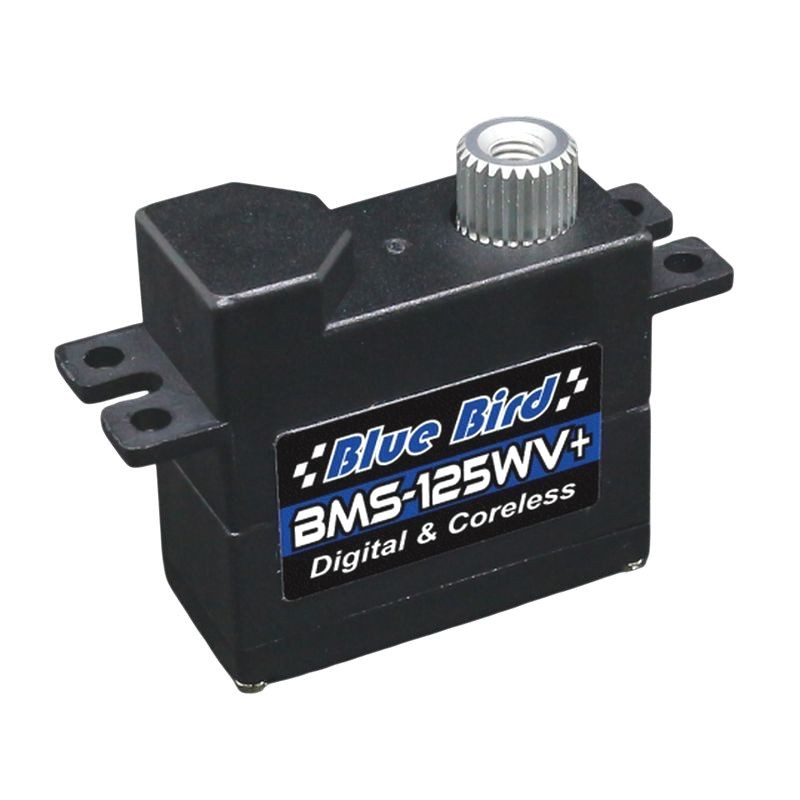

BLUE BIRD Servo BMS-125WV+ (7.1kg - 0.09s/60°) Digital

The Blue Bird BMS-125WV+ Digital servo is a new version of the BMS-125WV servo
The parameters have been improved and ball bearings have been added. The servos are equipped with horizontal flanges. It is recommended for use in 3D EP, F3K, F3P and DLG and HLG aircraft. The servos are also suitable for installation in F5J size models.

The output shaft has a 25-tooth drive lever with a diameter of 6 mm, identical to Futaba servos. This makes replacing the lever very easy. The connection of the shaft to the lever is very rigid and backlash-free.

WV stands for wide voltage range . The servo works with 1S LiPo, 4-5 NiMH or 2S LiPo cells.

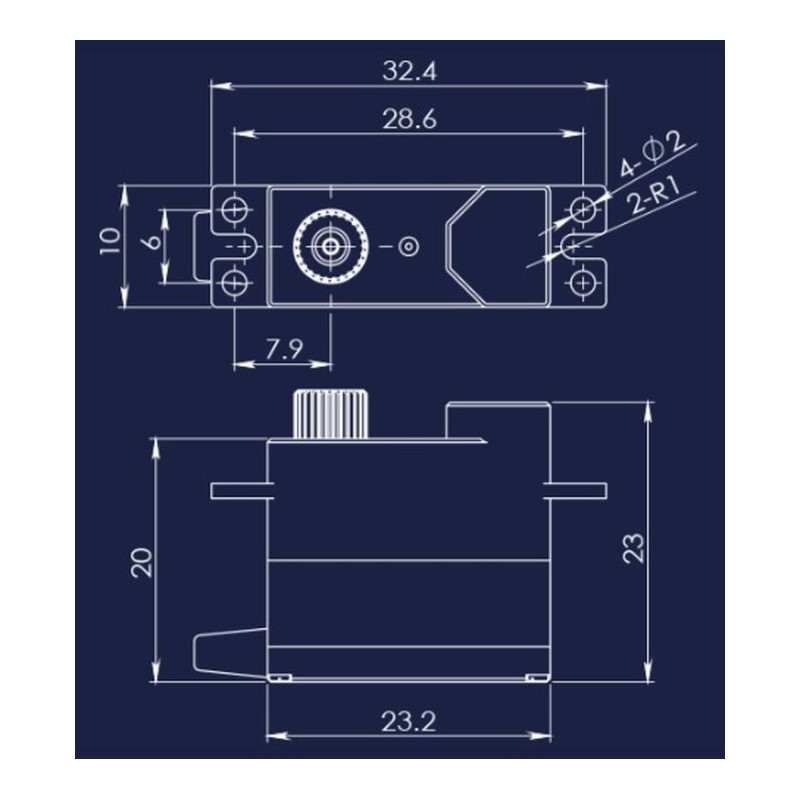

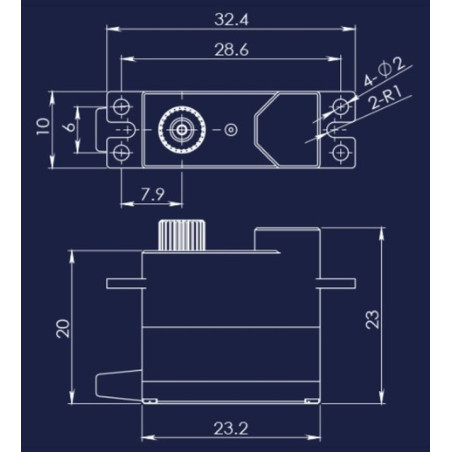

The Blue Bird BMS-125WV+ servo has similar dimensions to the popular MKS DS610 and MKS HV6100 servos. It is similarly precisely made, with no backlash in the gears and much more powerful than competing models.

Note: the output shaft differs from that of MKS servos, so it is not compatible with most MKS accessories.

Specifications:

• torque [kg-cm]: 3.7V-3.6 / 6.0V-5.5 / 7.4-6.6 / 8.4-7.1
• speed [sec]: 3.7V-0.20 / 6.0V:0.13 / 7.4V-0.10 / 8.4V-0.09
• weight: 11g +/- 0.5
• gearbox: metal
• motor: coreless
• operating frequency: 333 Hz
• standstill zone: 2 µs
• pulse width for ± 60º: (L) 900 µs - (0º) 1520 µs - (R) 2100 µs
• digital: yes
• programmable: no
• included: levers

*Follow the instruction manual supplied with the product.
