Aeromax

AEROMAX PIPER PA-18 SUPER CUB (1100 MM) wersja KIT

€107.38
12-3376
Aeromax
In stock

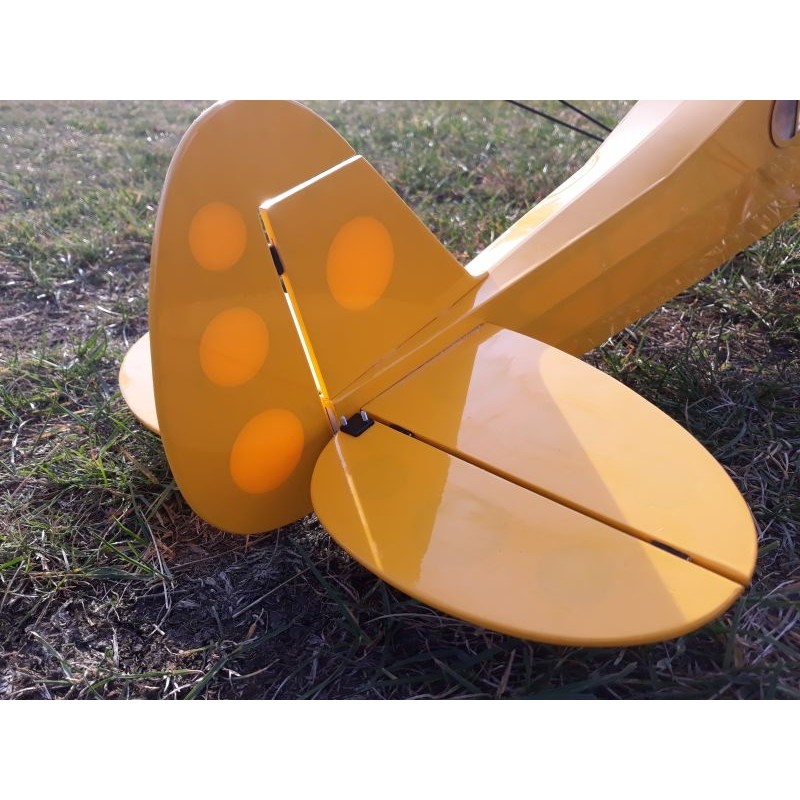

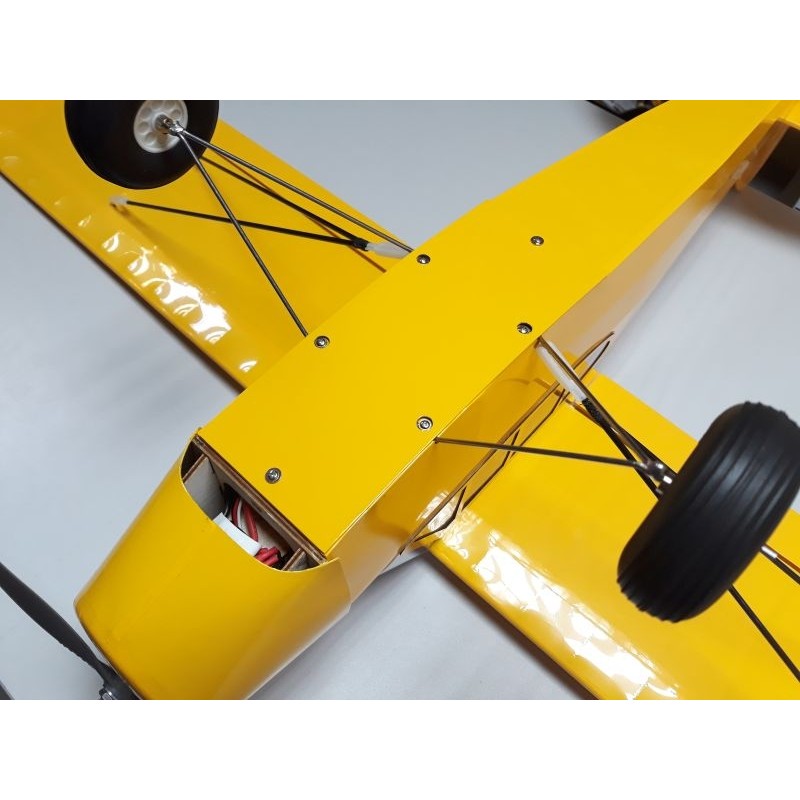

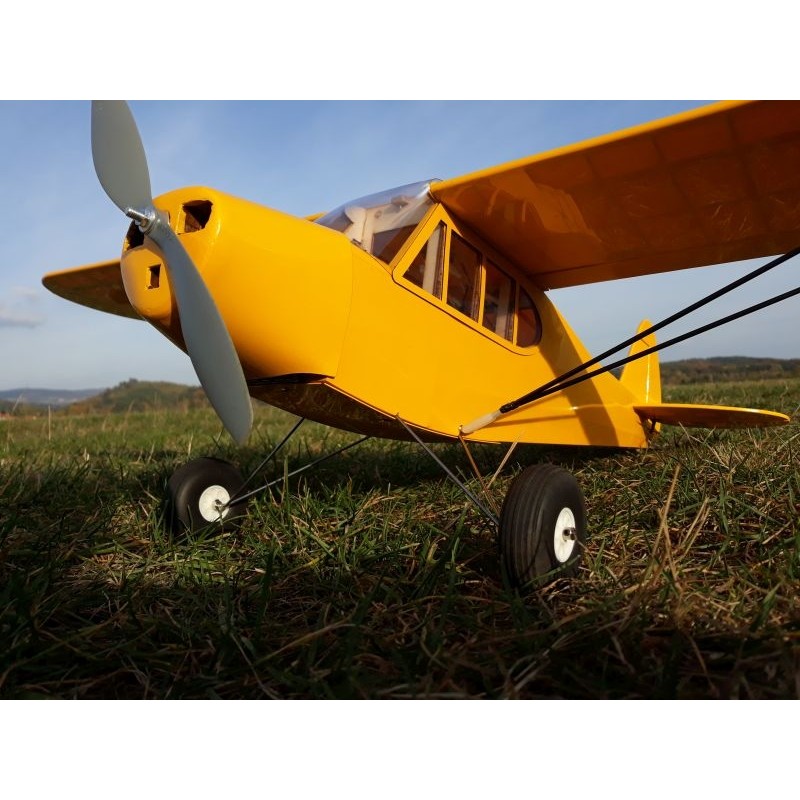

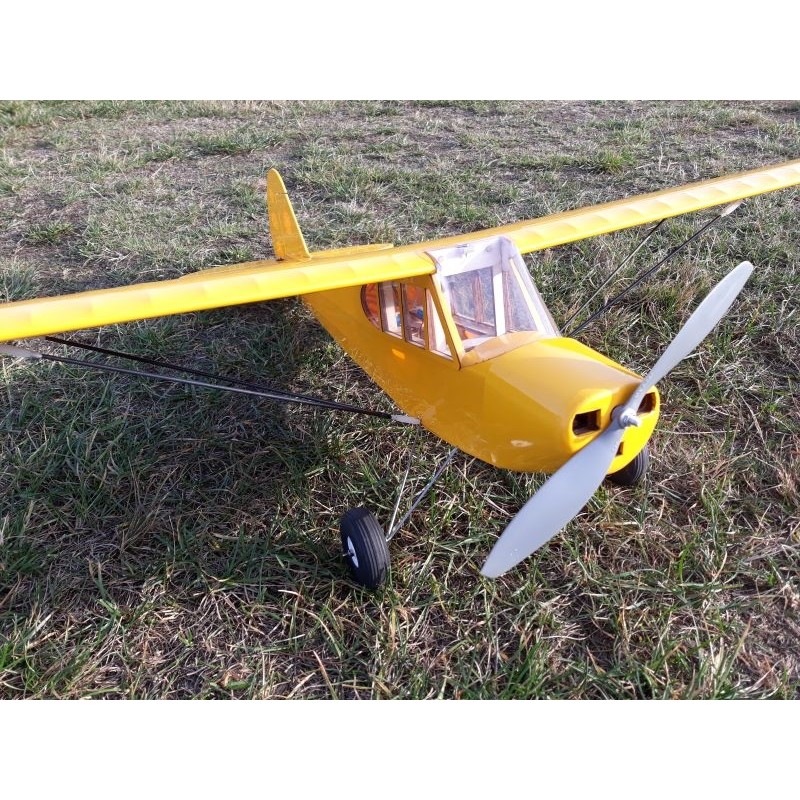

A semi-mock-up of the legendary Piper PA 18 Super Cub aircraft manufactured by the Polish company Aeromax. The model in the KIT version is laser cut from plywood and balsa for self-assembly. Aeromax models are developed by an experienced modeller-constructor, from the drawing board the design goes to laser cutting, then the model is folded and tested. The Piper PA-18 with a span of 1100mm is a good choice for the first engine model. The E-MAX 2822 engine used in it provides sufficient power and allows you to perform basic acrobatics, e.g. loop, barrel, ranwers. Thanks to its small size, it is easy to transport, without having to unfold it. A perfect training and recreational model for beginners and intermediate modelers.

Technical data:

  • span: 1100 mm
  • length: 770 mm
  • weight (for flight): 600 g

Recommended RC equipment:

  • apparatus. min 4-channel
  • electric motor: E-MAX 2822
  • propeller: APC 10x4.7SF
  • propeller hub 3mm / M5
  • servos: Hitec HS 55 4 pcs.
  • speed controller: 30A
  • battery: 11.1V (3S) 1300-1600mAh

Set contains:

  • laser cut elements (ribs, frames, etc.)
  • balsa slats (girders, stringers)
  • elements of braces
  • bars on the chassis
  • 1: 1 scale plans
  • CD with photos

To assemble the model, you will need the following materials and accessories (available in our store):

  • Oracover foil 2 m
  • M2 T-grip 6 pcs.
  • threaded rod M2
  • securing ring 2.1mm 4 pcs.
  • 63 mm foam wheel 2 pcs.
  • bowden socket M2 4 pcs.
  • rudder lever 1mm 4 pcs.
  • linden strip 4x4mm 1 pc (pushers)
  • 1mm steel rod 1 pc (pusher tips)
  • M2 * 10mm screws with a collar 20 pcs.
  • side M4 socket 1 pc (leaf fixing)
  • plastic screw M4 1 pc.
  • connector XT 60 1 set
  • gold-plated connector 2 mm 3 sets
  • Aileron servo extension 20 cm 2 pcs.
  • cyanoacrylate glue or vicol

We have spare parts for the Aeromax models we sell (fuselages, wings, fairings, tail pieces).
