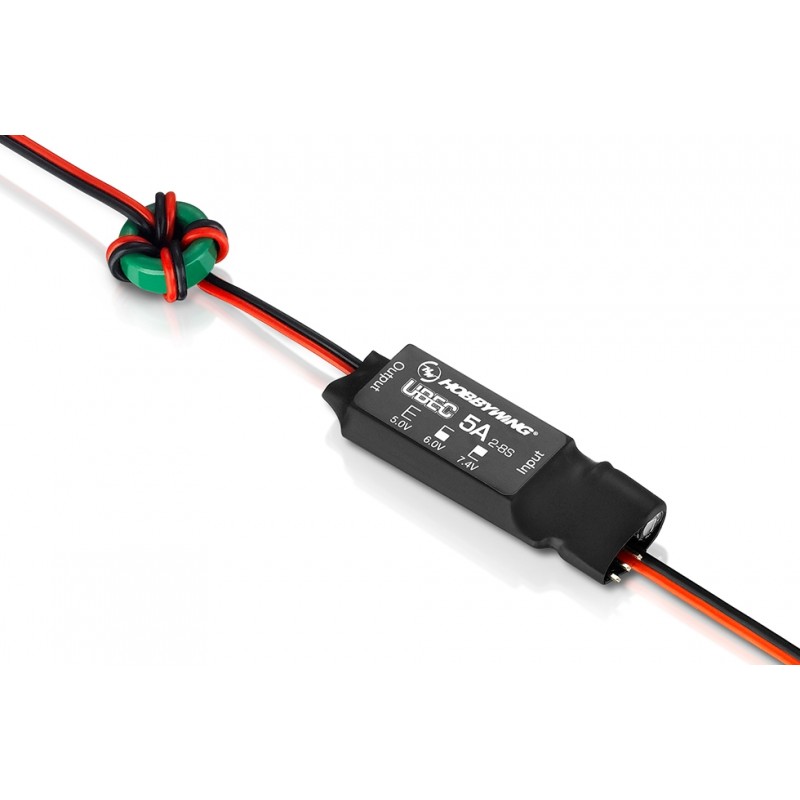

HOBBYWING 5A V2 Air Voltage Regulator (HW30607000)

UBEC 5A is a pulsed DC power stabilizer; powered by a 2-8S LiPo battery, it reduces the input voltage to a level suitable for powering RC model receivers and on-board electronics and stabilizes the output voltage at a preset value (5.0V, 6.0V or 7.4V). The load capacity of the UBEC is 5A continuous, 15A peak (momentary). This makes it particularly suitable for model airplanes and smaller RC helicopters, but also multicopters, cars, ships, etc.

• It uses an advanced DC voltage-reducing converter circuit with current and thermal overload protection, operating at close to 90% efficiency,
• Small size and light weight for easy use and installation,
• 3 output voltages (selectable via jumper) suitable for all types of receivers, gyroscopes, servos, etc..,
• LED indicator to indicate the operating status of the UBEC,
• Metal electronics shield and ferrite ring on the output cable to suppress electromagnetic radiation.

Using the UBEC

Electric drive model with OPTO controller: Connect the UBEC directly to the outputs of the drive battery and connect the output connector of the UBEC to the battery jack (or other free servo jack) on the receiver.

Electric drive model with built-in power stabilizer (BEC): Before connecting the UBEC, disconnect the red (+) wire in the servo cable of the controller to disable the built-in BEC. Otherwise, the UBEC connection is the same as for the OPTO regulator.

Internal combustion engine or glider model: connect the UBEC directly to the outputs of the power battery and connect the output connector of the UBEC to the battery jack (or other free servo jack) on the receiver.

Note: To reduce possible interference, place the UBEC on the model at least 5 cm away from the receiver.

Specifications:

• power supply: 2 - 8 LiXX,
• output voltage: 5 - 7,4 V,
• continuous current: 5 A,
• max. peak (instantaneous) current: 15 A,
• length: 50 mm,
• width: 17 mm,
• height: 10 mm,
• weight: 21g.

*Follow the enclosed instructions.
